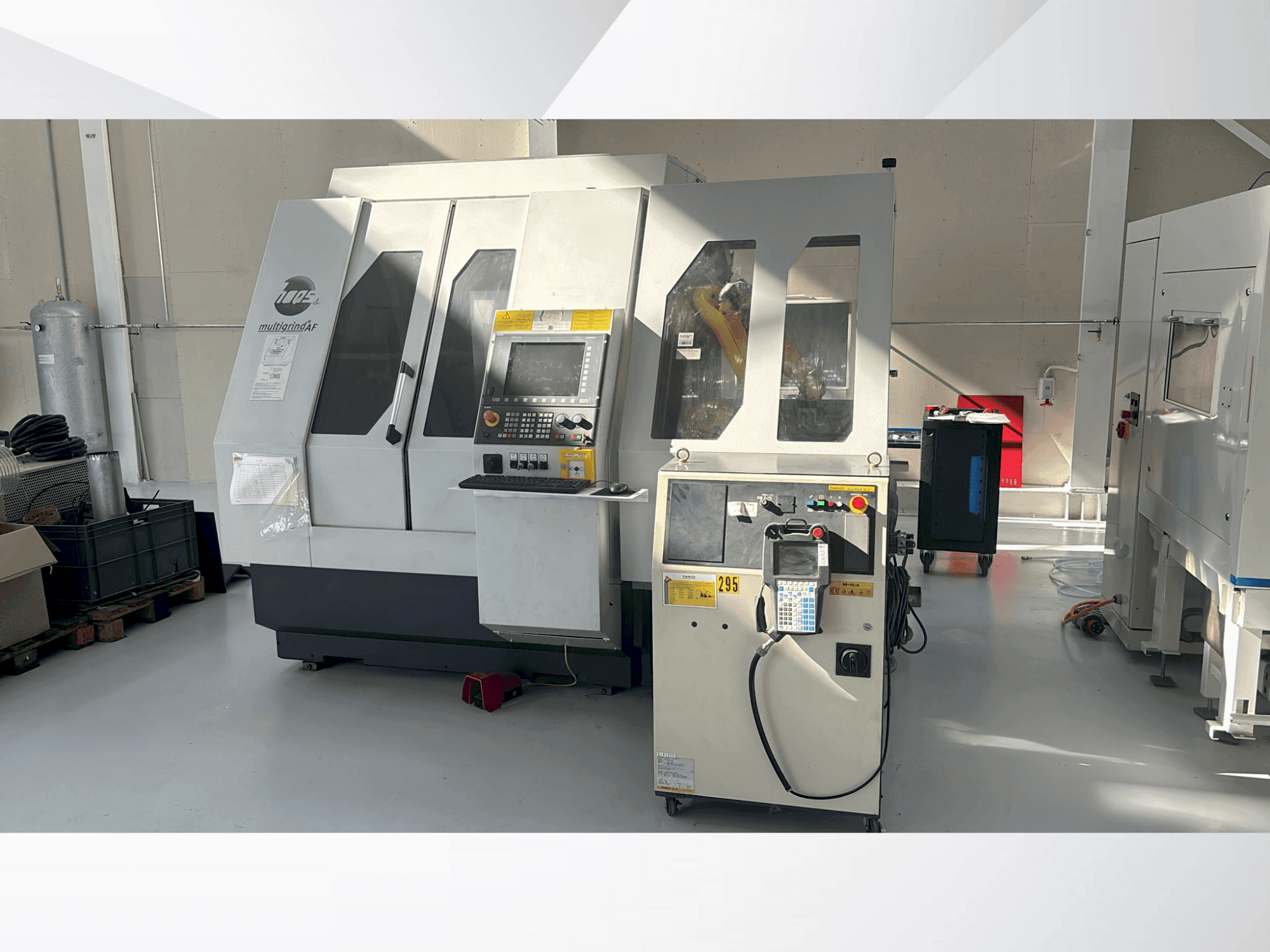

Front view of HAAS Multigrind AF/SL  machine

HAAS - Multigrind AF/SLCH-GRI-HAA-2010-00001

54,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis HAAS Multigrind AF/SL grinding machine was manufactured in 2010. It features a robust Siemens Sinumerik 840D CNC control, a grinding spindle speed range of 2,000 to 8,000 rpm, and a spindle power of 12 kW. The machine includes a Fanuc Model M-10iA Robotic Loader for enhanced automation and efficiency. Ideal for complex grinding tasks, the HAAS Multigrind AF/SL machine we have for sale is a significant asset for precision machining. Contact us for further details regarding this grinding machine.

Overview

  • brand: HAAS
  • year: 2010
  • MODEL: Multigrind AF/SL
  • application type: Grinding
  • Location: Switzerland
  • machine type: Grinding Machine
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - HAAS Multigrind AF/SL

General Data

  • Measurements width: 3000 MM
  • Measurements depth: 4000 MM
  • Measurements height: 3000 MM
  • Machine weight: 9000 KG

Control Unit

  • Model: Sinumerik 840D
  • Brand: SIEMENS

Main drive

  • Spindle speed range: 2000 - 8000 1/MIN
  • Spindle motor power: 12 kw

Movement

  • X-AXIS Movement: 400 mm
  • Y-AXIS Movement: 270 mm
  • Z-AXIS Movement: 250 mm
  • A-AXIS Movement: 360 º MM
  • C-AXIS Movement: -230°/ +70° MM

Table

  • Outer length: 1000 mm
  • Outer width: 270 mm

    Additional Equipment

    • - Fanuc Model M-10iA Robotic Loader
    • - Robotic control: SYSTEMR-30/A Control
    • - Disc guard change
    • - Pneumatic cylinder tension/compression clamping force up to 17000 N

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Grinding spindle diameter: 90 mm
        • - Grinding disc diameter: 225 mm
        • - Grinding disc width: 50 mm
        • - Center distance: 300 mm
        • - Includes two grinding spindle ends, high-resolution measuring systems, infinite rotation angle for dividing head
        • - Workpiece holder: iso 50 / centre 70h5

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
