➤ Used HAAS UMC-750 For Sale | gindumac.com

Show in original language

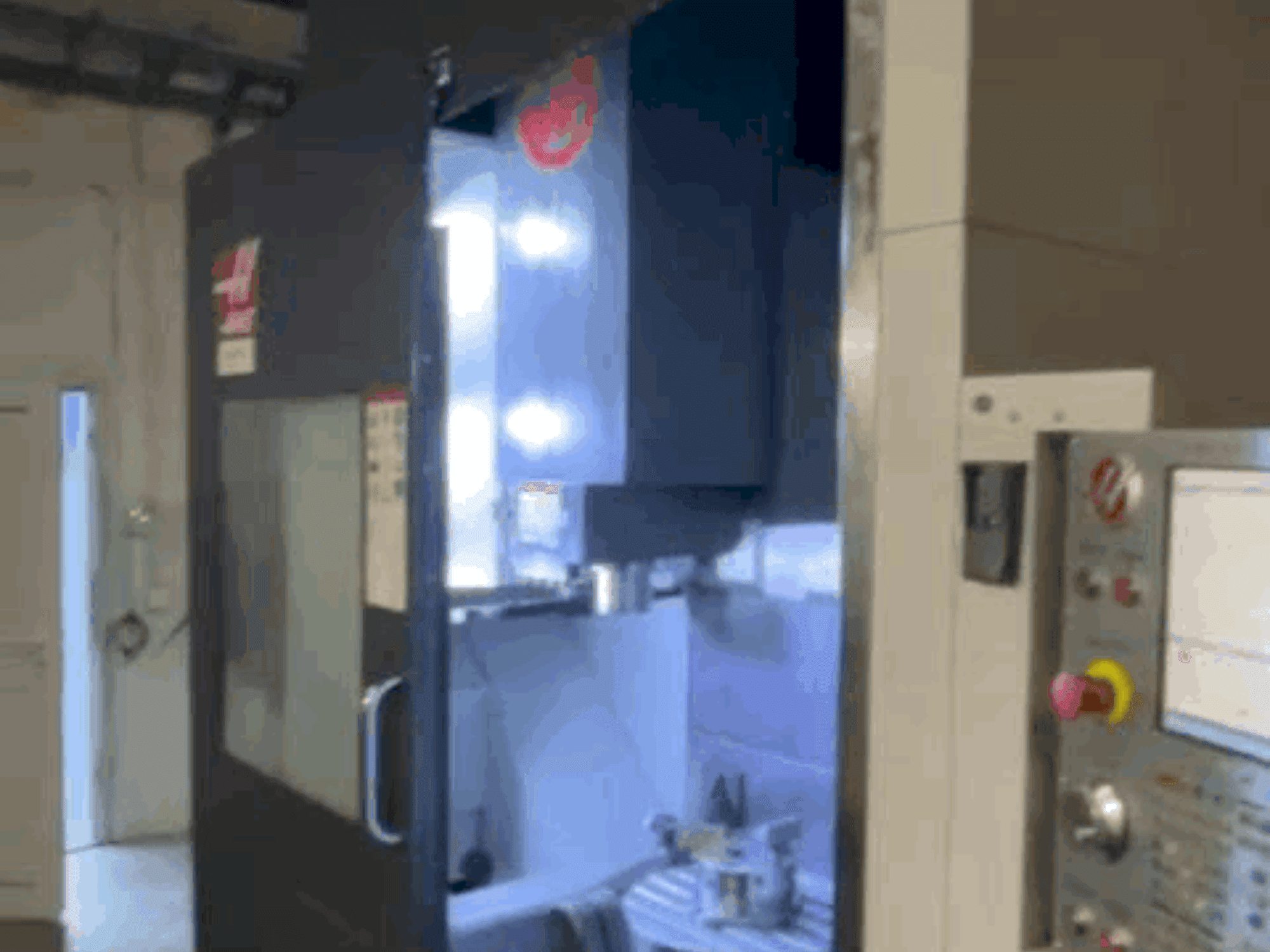

This 5-axis HAAS UMC-750 was manufactured in 2019, featuring a robust universal machining center with a 500 mm table diameter and a maximum table load of 300 kg. It includes a high-speed spindle up to 12,000 rpm, ISO 40 taper, and a 40-position tool changer. Ideal for complex geometries and diverse machining tasks. Contact us for more information about this machine.

Overview

brand: HAAS
year: 2019
MODEL: UMC-750
application type: Milling
Location: Slovakia
machine type: Universal Machining Centre
control unit brand: HAAS

Technical Information - HAAS UMC-750

General Data

Measurements width: 2387 mm
Measurements depth: 3978 mm
Measurements height: 2565 mm
Machine weight: 8200 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Tool taper: ISO 40
Number of axis: 5

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 508 mm

Table

Table load: 300 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B-axis travel: 120° to -35°
- - C-axis travel: 360°
- - Spindle nose to table (max/min): 610 mm / 102 mm
- - Table diameter: 500 mm
- - Tool changer capacity: 40 positions
- - Max rating: 22. 4 kw

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
