HAAS VCE 750

Photo Gallery

Video gallery

SOLD

HAAS - VCE 750

2000

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

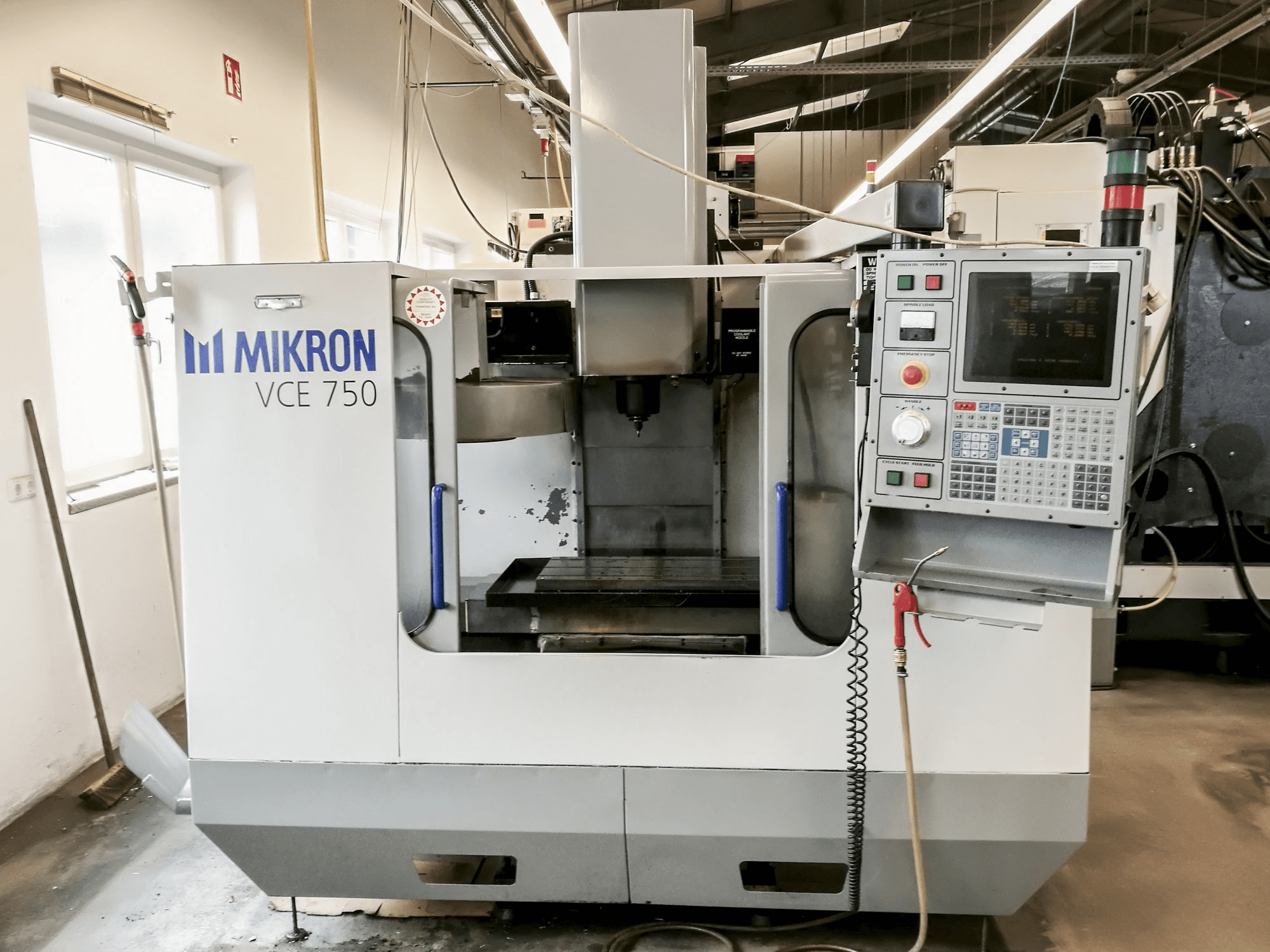

HAAS VCE 750 Machining Center

Show in original language

This HAAS VCE 750 Machining Center was manufactured in Switzerland in 2000 and has a working record of not more than 6166 production hours since then. This model is equipped with a HAAS CNC Control unit and has mainly worked with steel, aluminium as well as with plastics during the past, producing machine components.

Overview

brand: HAAS
year: 2000
MODEL: VCE 750
production hours: 6166
application type: Milling
Location: Germany
machine type: Machining centers (vertical)
availability: Sold
control unit brand: HAAS
GINDUMAC ID: DE-MIL-HAA-2000-00001

Technical Information

General Data

Measurements width: 2230 mm
Measurements depth: 2360 mm
Measurements height: 2690 mm
Machine weight: 3620 kg

Control Unit

Brand: HAAS
Model: CNC

Main drive

Number of spindles: 1
Spindle speed range: 50-8000 1/min

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 410 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 910 mm
Outer width: 310 mm

Tools

Max weight: 7 kg
Max tool diameter: 130 mm
Max tool length: 300 mm

Media

Main electronic connection: 400 V
Power consumption: 16 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
