HAAS - VF-8 IT-MIL-HAA-2003-00001

Name: HAAS VF-8
Brand: HAAS
SKU: IT-MIL-HAA-2003-00001
Price: 59500 EUR
Availability: InStock

59,500 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS VF-8 For Sale | gindumac.com

Show in original language

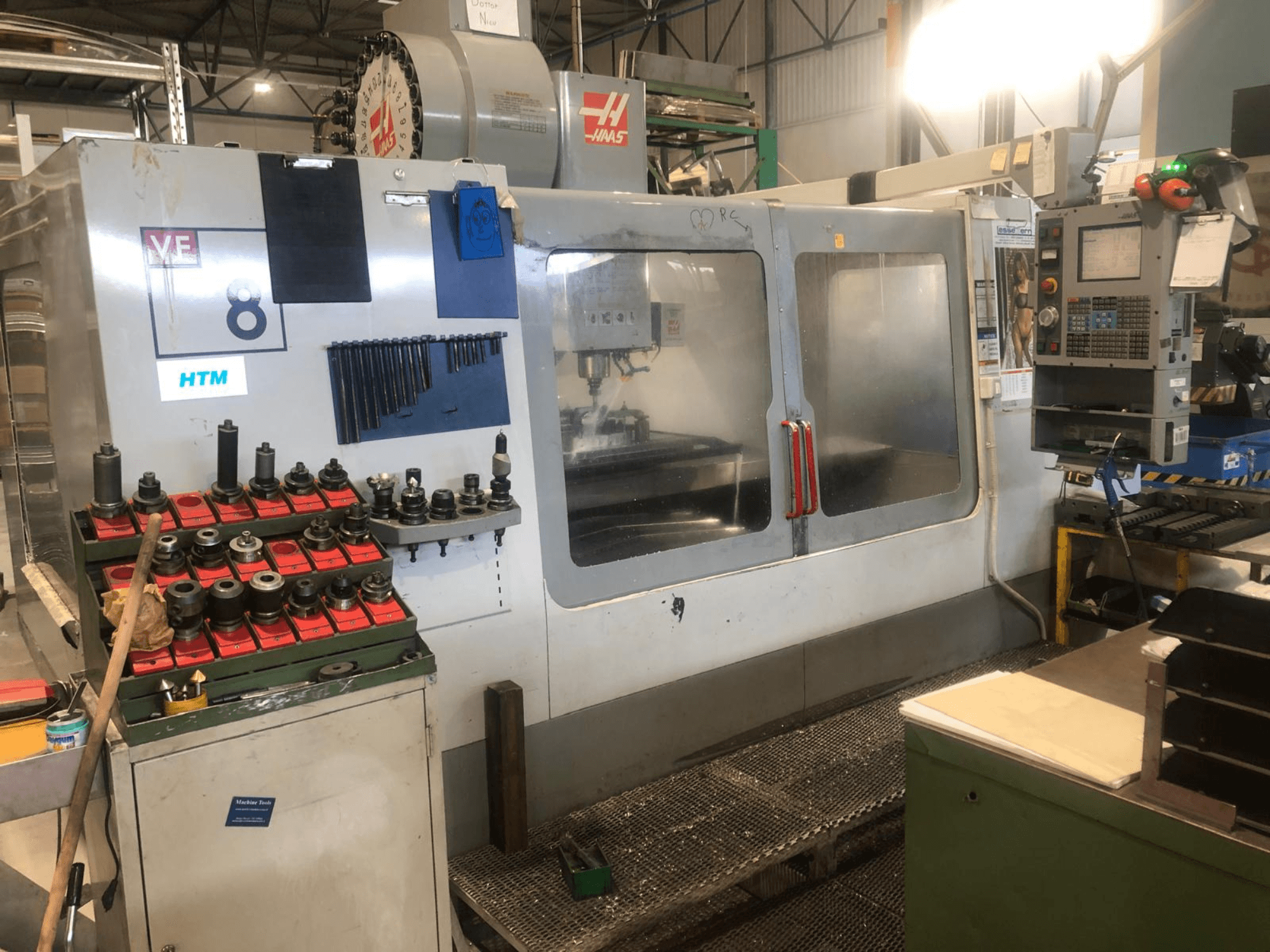

This 3-axis HAAS VF-8 vertical machining center was manufactured in 2003. It features a 1626 x 1016 x 762 mm travel range, a 15.4 kW spindle power, and a maximum spindle speed of 7500 rpm. Equipped with a BT-40 tool holder, a 24+1 position tool changer, and a screw-type chip conveyor. If you are looking to get high-quality milling capabilities consider the HAAS VF-8 machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2003
MODEL: VF-8
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - HAAS VF-8

Movement

Number of Axes: 3
X-axis Travel: 1626 mm
Y-axis Travel: 1016 mm
Z-axis Travel: 762 mm

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 7500 RPM
Taper Size: BT 40

Additional Information

Distance spindle–table: 102 mm
Max cutting feed: 12 m/min
Rapid feed (X/Y/Z): 18 m/min
Tool changer type: Random vertical
Tool magazine capacity: 24 + 1 positions
CNC memory: 1 MB
Monitor: 15" color
Data interface: RS232
Rigid tapping: Yes
Options/features included:
- 2-speed gearbox spindle
- 4th axis drive and wiring
- Intuitive programming system
- Coordinate rotation system
- Macro variables and scaling functions
- Programmable coolant nozzle
- Internal work light

Additional equipment

Screw-type chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
