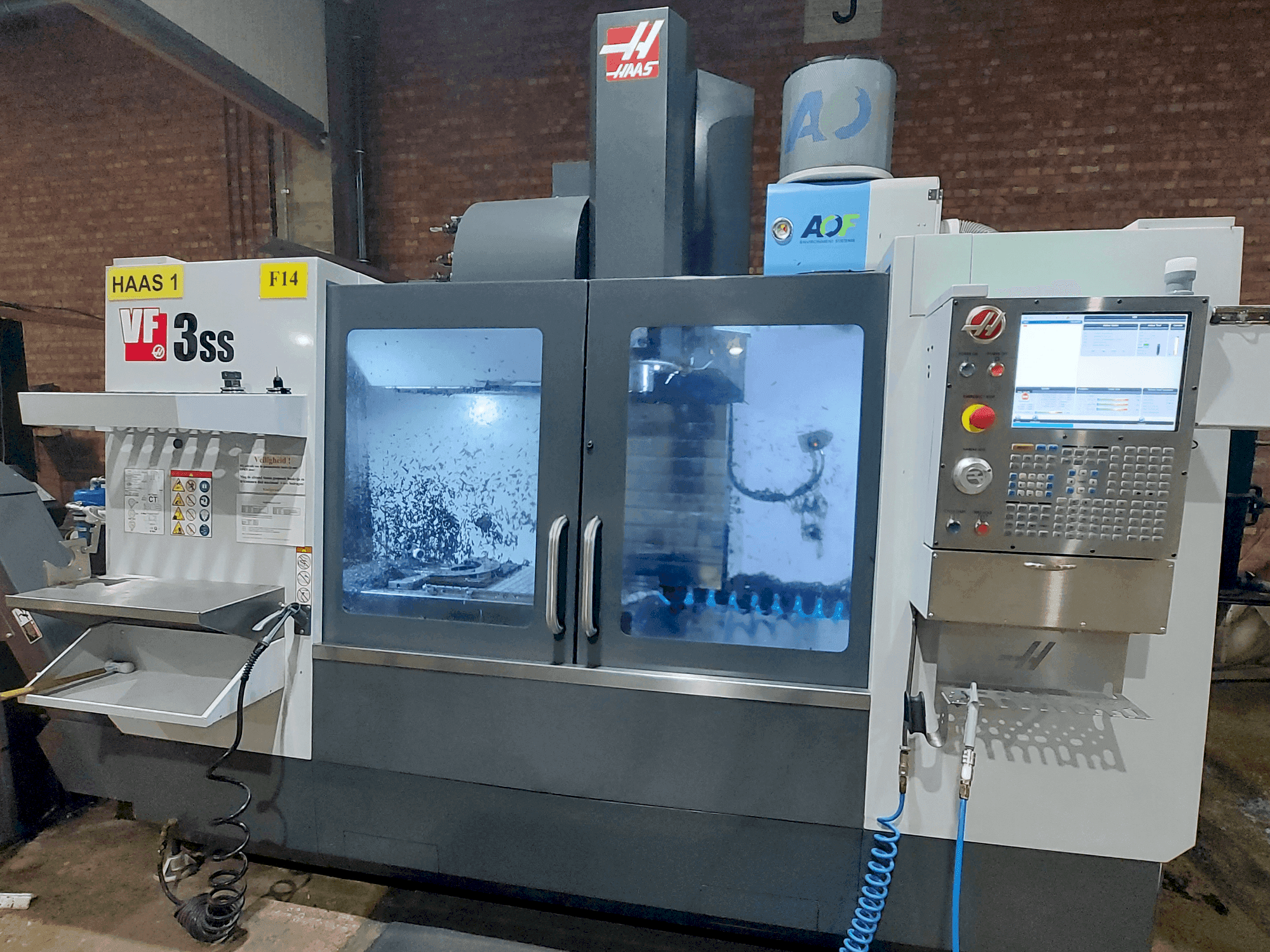

HAAS VF-3SS Vertical Machining center

Show in original language

This HAAS VF-3SS Vertical Machining center was manufactured in the year 2017. It is equipped with a HAAS control unit and has 3 axis (X = 1016 mm / Y = 508 mm / Z = 635 mm). The machine has a spindle speed of 15,000 rpm and comes with a Wireless Intuitive Probing System (RENISHAW), Chip & Coolant Management (through spindle coolant, through-tool air blast etc.) and Legacy Options (CT-style tool changer grippers, 24+1 side-mount tool changer etc.). It is still under powert and can be inspected on-site. See video for more details.

Overview

brand: HAAS
year: 2017
MODEL: VF-3SS
production hours: 17731
application type: Milling
Location: Belgium
machine type: Machining centers (vertical)
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-3SS

General Data

Measurements width: 3870 mm
Measurements depth: 2510 mm
Measurements height: 2690 mm
Machine weight: 6124 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 15,000 rpm 1/MIN

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1219 mm
Outer width: 457 mm
TSlots size: 15.90 mm to 16.00 mm
Number of tslots: 5
Table load: 794 kg

Media

Main electronic connection: 440 V Phase 3
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle: 15,000-rpm spindle
- - Probing: wireless intuitive probing system (renishaw)
- - Chip & coolant management: auxiliary coolant filter // through-spindle coolant // through-tool air blast // window air blast // 55-gallon coolant tank
- - Legacy options: ct-style tool changer grippers // 24+1 side-mount tool changer // pull studs din 69-871 tsc // multi-auger chip conveyor-quad

Extra information

- The Haas Control: Standard Program Memory, 1 GB // Ethernet Interface // HaasConnect: Remote monitoring // Media Display M-Code M130 // Rigid tapping

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
