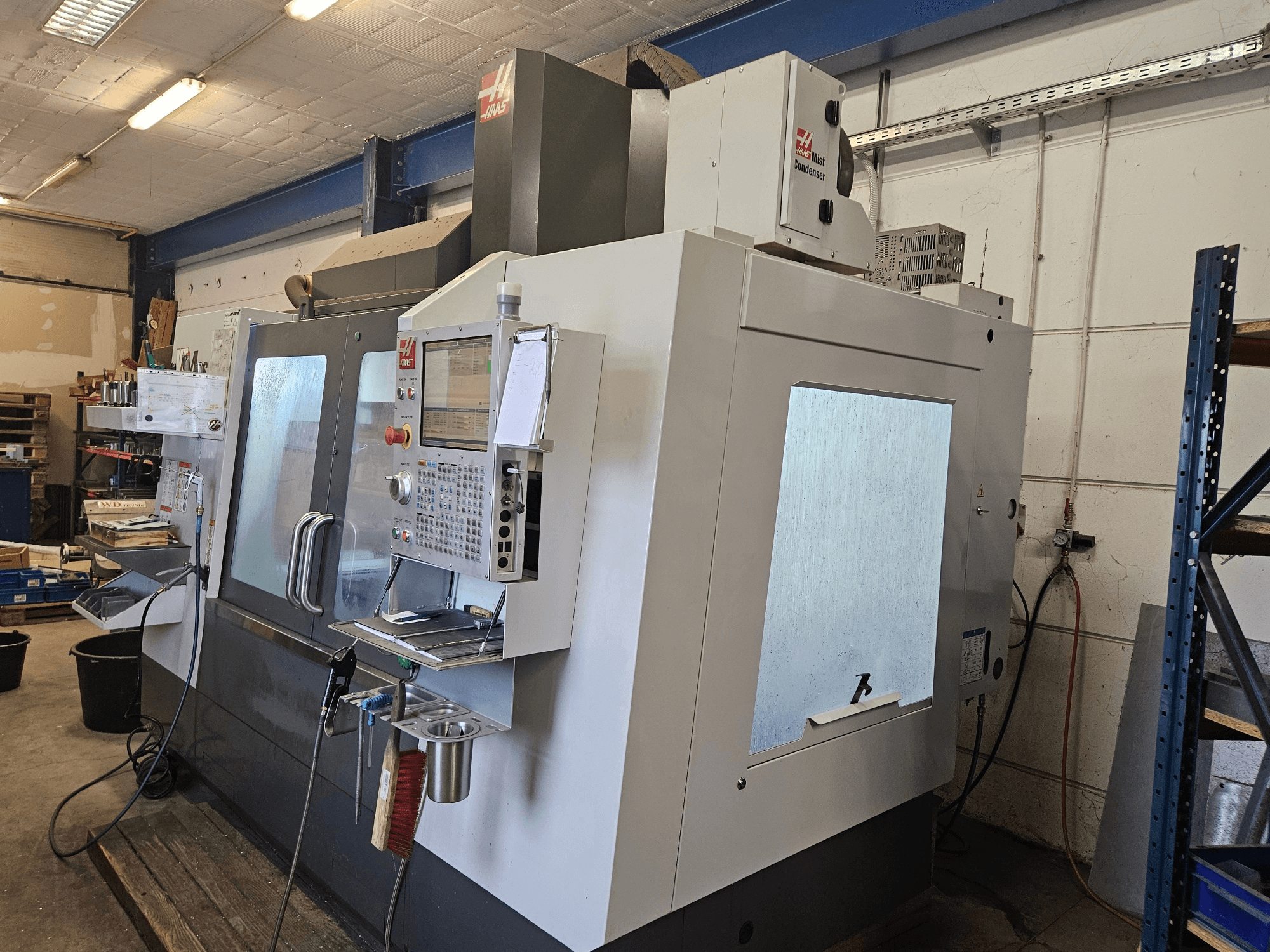

HAAS - VF-4SSHR-MIL-HAA-2023-00001

• Condition: Like new, used

• Functionality: Fully operational

• Operating hours: 3,363 h

• Spindle/machining hours: 2,402 h

Travels

• Spindle nose to table: 107–742 mm

Spindle

• Maximum spindle torque: 122 Nm at 2,000 rpm

• Spindle drive: Inline direct drive

• Spindle taper: CAT40

• Number of spindles: 1

Table

• Table dimensions: 1,321 × 495 mm

• Number of T-slots: 5

• T-slot width: 15.9–16 mm

Tool changer

• Tool capacity: 30+1 positions

• Tool-to-tool time: approx. 1.8 s

• Chip-to-chip time: approx. 2.4 s

Machine dimensions and weight

• Note: Dimensions in the original ad were incorrectly stated in millimetres instead of centimetres.

• Export shipping dimensions without conveyor: 3,330 × 2,330 × 2,570 mm

• Export shipping dimensions with chip conveyor: approx. 4,140 × 2,330 × 2,570 mm

• Advertised machine weight: approx. 6,200 kg

• Official weight with conveyor: approx. 6,260 kg

Installed options

• Through-Spindle Coolant (TSC), 300 psi / 21 bar

• Renishaw Wireless Intuitive Probing System (WIPS)

• High-Speed Machining (HSM)

• Programmable coolant nozzle

Electrical

• 400 V, three-phase power supply

Additional equipment

• Chip auger

• Haas Chip Lift (chip conveyor)

• Coolant mist condenser

• Probe riser block

• Approximately 15 tool holders

• Documentation and manuals
