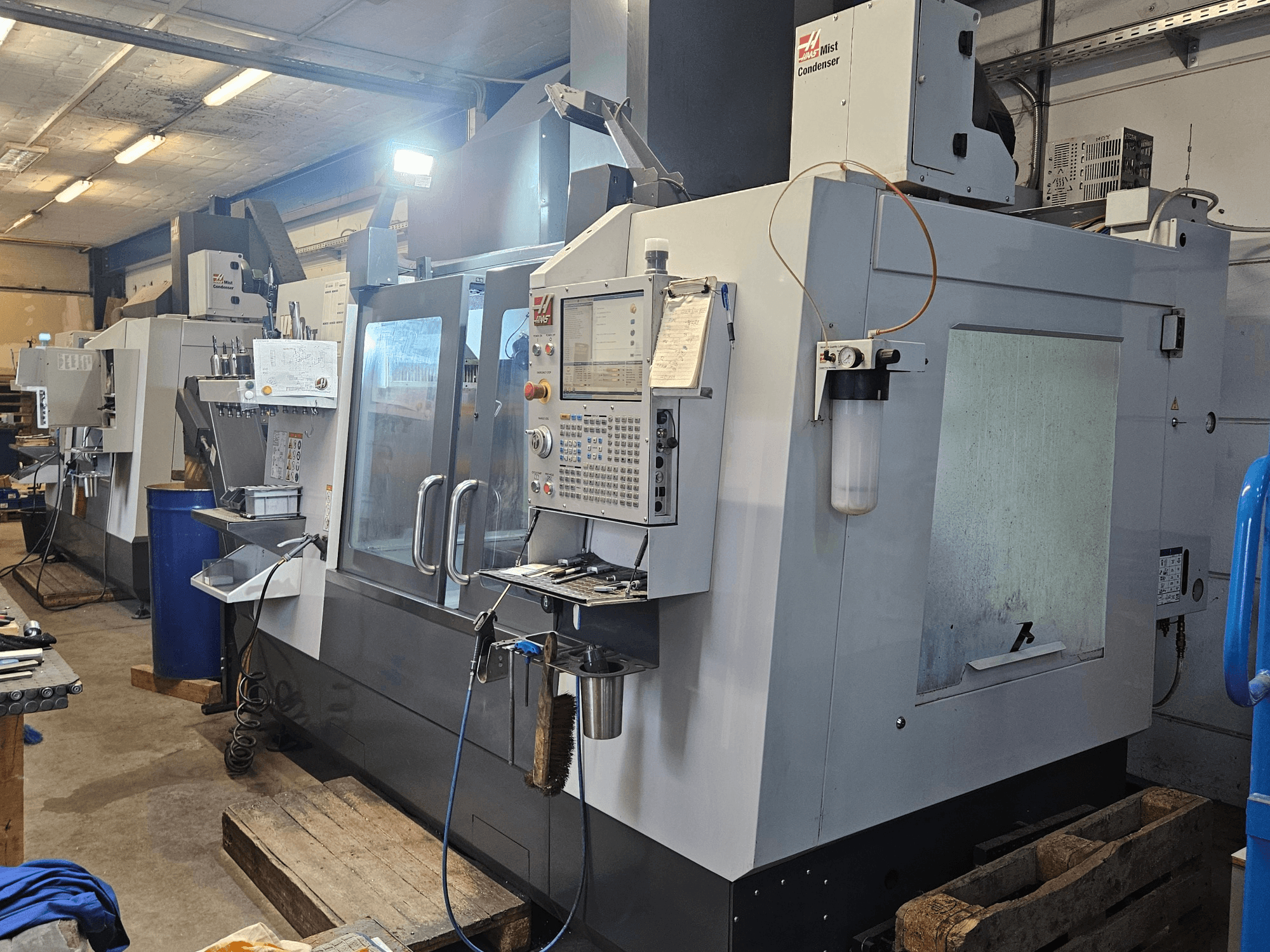

HAAS - VF-3YT/50HR-MIL-HAA-2019-00004

• Condition: Used, fully operational

• Operating/cycle hours: 6,744 h

• Spindle/cutting hours: 4,454 h

Travels

• Spindle nose to table: 201–836 mm

• Rapid traverse: 18 m/min

• Maximum cutting feed: 12.7 m/min

Spindle and tool changer

• Maximum torque: 460 Nm

• Drive system: Vector drive with 2-speed gearbox

• Tool changer capacity: 30 tools

Table

• Table size: 1,372 × 610 mm

• T-slots: 7

• T-slot width: 15.9–16 mm

Shipping

• Note: Dimensions listed as 1,370 × 660 × 630 mm are not overall machine dimensions

• Export shipping dimensions (approx.): 3,970 × 2,600 × 3,230 mm

• Approx. shipping weight: 7,485 kg

Additional equipment

• Chip conveyor with four additional augers

• Haas Chip Lift

• Through-Spindle Coolant (TSC), 300 psi / 21 bar

• Programmable coolant nozzle

• Coolant chiller

• ACF 25-micron auxiliary coolant filter

• Coolant mist condenser

• Minimum Quantity Lubrication (MQL)

• Automatic air gun

• Through-Tool Air Blast (TAB)

• PulseJet system

• Renishaw Wireless Intuitive Probing System (WIPS) with probe riser block

• Fourth-axis drive and wiring

• High-Speed Machining (HSM)

• DWO/TCPC (Dynamic Work Offsets/Tool Center Point Control)

• RTAP-3 synchronized tapping

• Wi‑Fi network connection and Wi‑Fi camera

• Automatic door

• High-intensity lighting

• Approximately 15 tool holders

• Complete documentation
