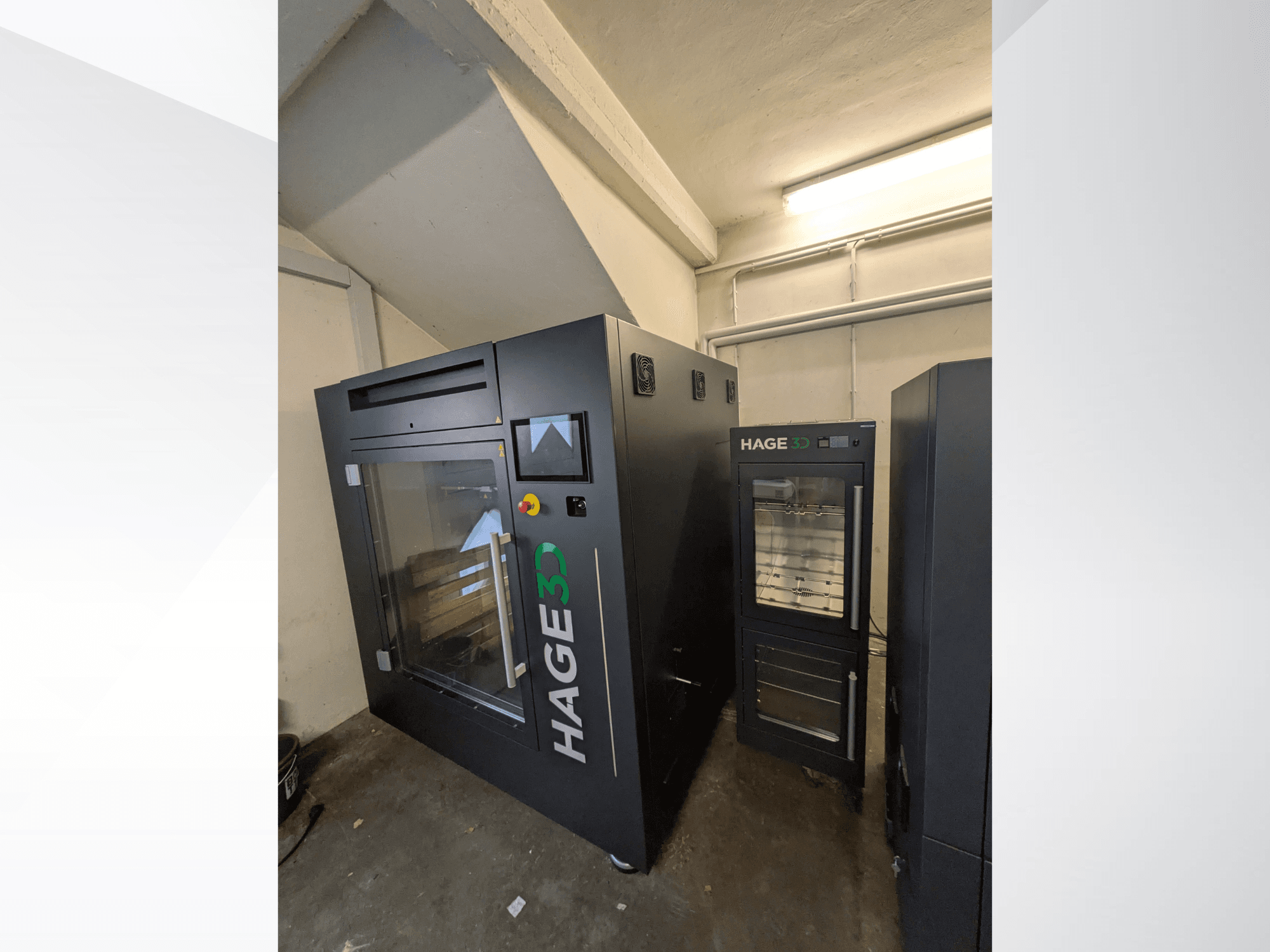

HAGE - 3D Precision OneDE-3DP-HAG-2023-00001

• Heated Build Chamber: Up to 150 °C

• Heated Print Bed: Up to 180 °C

• Maximum Printing Temperature: Up to 450 °C

• Layer Thickness: From 0.05 mm

• Traverse Speed (XY): Approx. 350 mm/s

• Servo Motors with Ball Screw Drives in X, Y and Z Axes

• Automatic Print Bed Calibration via Multi-Point Topography Measurement

• Vacuum Print Bed

• Water-Cooled Triple DSD Print Head

• Adjustable Feed and Contact Pressure

• Short Filament Feed Path

• Free Lift of the Inactive Extruder/Nozzle

• E1: Standard Hotend

• E2: Backup Hotend (Filament Run-Out Detection)

• E3: High-Flow Hotend (Extra-High Material Deposition Rate)

• Heated Build Chamber Suitable for High-Temperature Plastics

• 360° Component Temperature Management

• Targeted Part Cooling up to 4.8 m³/h

• Activated Carbon and HEPA Filtration System

• Highly Effective Filtration of Macro-, Micro- and Nanoparticles (VOCs and Volatile Solvents)

Drying Chamber (DCU), 2024 (optional, not included)

• Internal Dimensions (X/Y/Z): 630 × 390 × 260 mm

• Capacity: 3 Movable Small Spools (Upper Section)

• Capacity: 2 Movable Large Spools (Lower Section)

• Maximum Drying Temperature: 100 °C

• Filament Feed: Direct Feeding from the Chamber with up to 4 Spools

• Automatic Air Exchange and Moisture Removal

• Tempering Chamber Internal Dimensions (X/Y/Z): 418 × 601 × 401 mm

• Loading Areas: 3 Loading Positions for 600 × 400 mm Sheets or Grids

• Maximum Tempering Temperature: 200 °C

• Simultaneous Operation of Drying and Tempering Chambers

• External Dimensions (X/Y/Z): 1,600 × 695 × 580 mm

• Total Weight: Approx. 100 kg

• Control: Siemens LOGO!

• Maximum Power Consumption: 6 kW

• Electrical Connection: Three-Phase AC 230 V, 16 A Fuse per Phase
