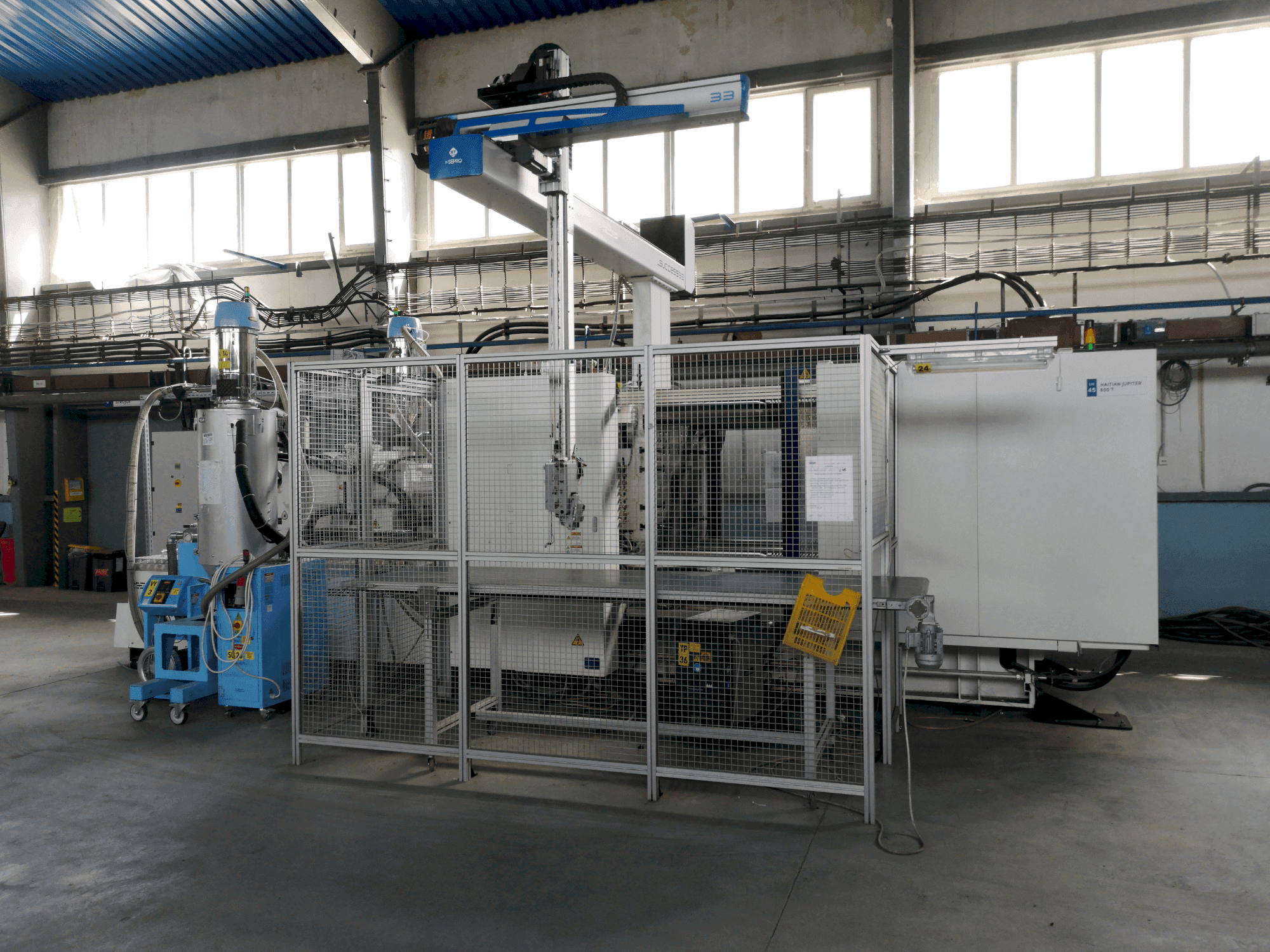

Front view of HAITIAN Jupiter 650 II  machine

HAITIAN - Jupiter 650 IICZ-INJ-HAI-2018-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Haitian Jupiter 650 II was manufactured in 2018. A robust injection moulding machine, it features a screw diameter of 80 mm, an injection capacity of 2950 g, and a clamping force of 6500 KN. Its tie rod spacing measures 1040 x 910 mm, and it supports a maximum die height of 950 mm. Ideal for high-volume production, the machine we have for sale offers significant operational capacity. For more information about this injection moulding machine, please reach out to us.

Overview

  • brand: HAITIAN
  • year: 2018
  • MODEL: Jupiter 650 II
  • application type: Injection Moulding
  • Location: Czech Republic
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold

Technical Information - HAITIAN Jupiter 650 II

General Data

  • Measurements width: 2300 MM
  • Measurements depth: 6600 MM
  • Measurements height: 2300 MM
  • Machine weight: 27,000 KG

Injection Unit

  • Screw diameter: 80 mm
  • Shot weight: 1693 g
  • Stroke volume: 1860 cm3 CM³
  • Heating capacity: 50.7 kw

Clamping unit

  • Clamping force: 6500 kn
  • Max open daylight: 1750 mm
  • Mould height min: 400 mm
  • Mould height max: 950 mm
  • Ejector stroke: 250 mm
  • Ejector force for / back: 110 kn

    Additional Equipment

    • - Sepro Success 33 robot, Moretto dryer and hopper.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Injection rate 545 g/s
        • - Tie rod spacing (hxv): 1040 x 910 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
