HAITIAN - MA 2500 III IT-INJ-HAI-2023-00001

112,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

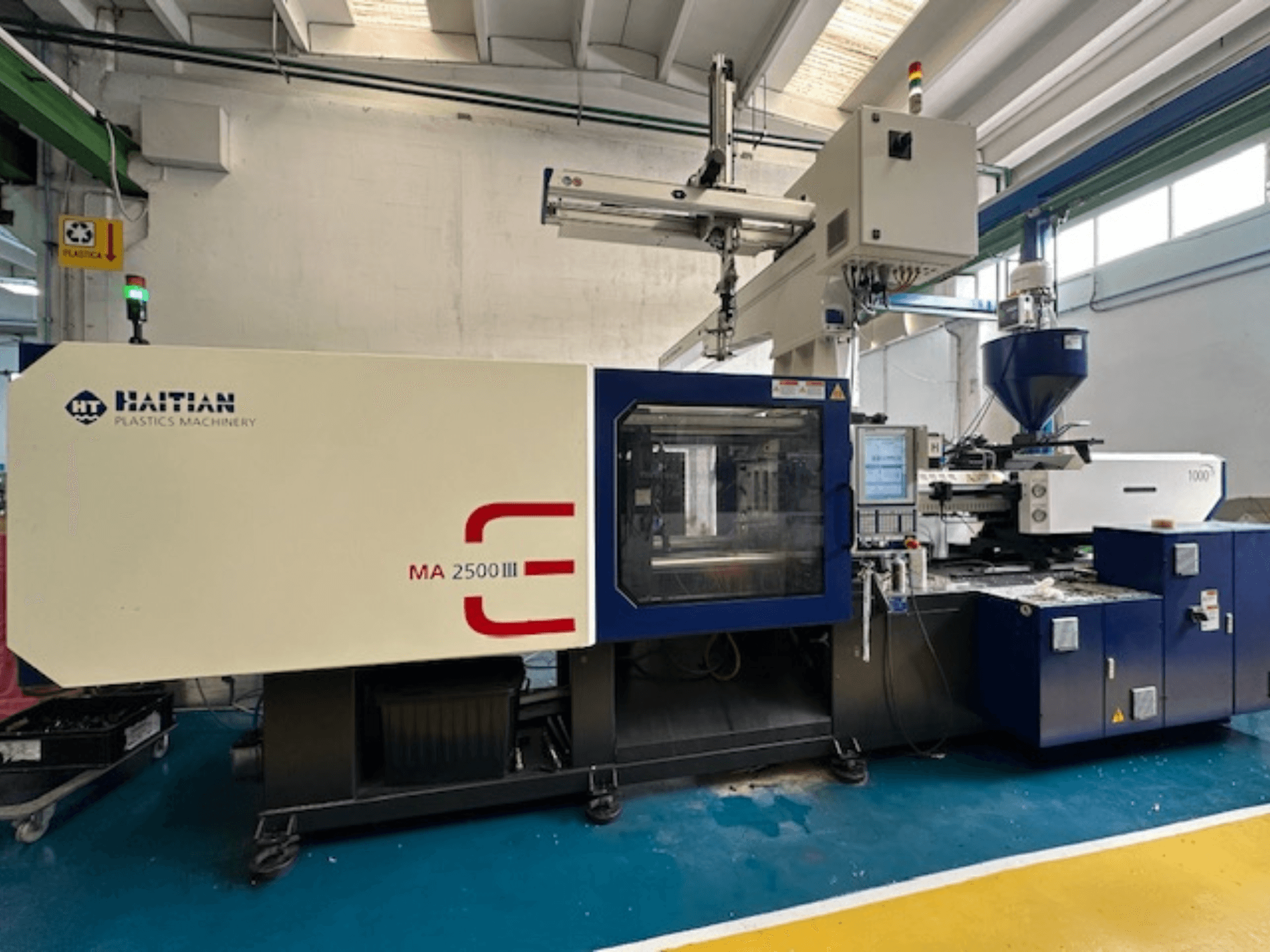

Hydraulic injection moulding machine manufactured in 2023. This HAITIAN MA 2500 III features a clamping force of 250 tons and a platen size of 850 x 850 mm. The machine includes an impressive injection pressure of 1850 bar and a screw diameter of 55 mm. If you are looking to get high-quality injection moulding capabilities, consider the HAITIAN MA 2500 III machine we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: HAITIAN
  • year: 2023
  • MODEL: MA 2500 III
  • application type: Injection Moulding
  • Location: Italy
  • machine type: Hydraulic Injection Moulding Machine
  • control unit brand:

Technical Information - HAITIAN MA 2500 III

Dimensions

  • Machine Weight: 8400 kg

Technical Specification

  • Clamping Force: 2500 kN
  • Screw Diameter: 55 mm

Additional Information

  • Clamping unit

    • Opening force: 165 kN

    • Platen size: 850 x 850 mm

    • Opening stroke: 540 mm

    • Tie bar distance: 580 x 580 mm

    • Max mould height: 580 mm

    • Min mould height: 220 mm

    • Ejector stroke: 150 mm

    • Ejector force: 62 kN

    • Min mould dimensions: 410 x 410 mm

  • Injection unit

    • Euromap classification: 1000

    • L/D ratio: 20

    • Shot volume: 570 cm³

    • Effective injection volume: 519 g

    • Injection rate: 281 g/s

    • Plasticizing capacity: 47.7 g/s

    • Injection pressure: 1850 bar

    • Screw speed: 180 rpm

    • Screw stroke: 240 mm

    • Carriage force: 99 kN

    • Pump motor power: 37 kW

    • Heater power: 21.45 kW

    • Oil tank capacity: 340 L

  • Dimensions

    • Machine size: 6.19 x 1.60 x 2.42 m

  • Control

    • Controller: KEBA 2985 – CP053

    • Features:

      • 15” colour touchscreen

      • Euromap 67 robot interface

      • USB memory

      • 200 mould memory

      • Cycle history

      • Alarm tower

      • RFID login/password

      • Multilanguage interface

      • Process graphs

      • Maintenance pages

      • Metric / imperial selectable

  • Included options / extras (machine-integrated)

    • Bimetallic screw + barrel

    • Masterbatch dosing interface

    • Hydraulic radial extraction

    • Festo air blow system

    • 12-zone PSG central lubrication

    • 4-way flowmeter

    • Robot interface

    • Included screw H 3 zones

    • CE certified work cell

Additional equipment

  • Robot included: HILECTRO V-1300ID Cartesian Robot (2023)

    • Type: 3-axis servo Cartesian robot

    • Suitable for: 380T to 530T presses

    • Travels: X 2000 mm / Y 880 mm / Z 1300 mm

    • Max extractable weight: 12 kg

    • Power: 400 VAC / 50-60 Hz

    • Precision: 0.1 mm

    • Robot weight: 530 kg

    • Included: Touchscreen controller, USB programs, pneumatic gripper, vacuum cups, conveyor ready

  • Peripherals included: FORMAX E3 Monofase Hopper Loader (2 units)

    • Hopper capacity: 3.0 L

    • Power: 1150 W

    • Inlet diameter: 40 mm

    • Capacity: 70 kg/h

    • Voltage: 230 V

    • Weight: 13 kg each


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
