HAITIAN MA 7000/6800
HAITIAN - MA 7000/6800
2011
74,000 €
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Used HAITIAN MA 7000/6800 - 2011 - Injection Moulding Machine For sale | gindumac.com

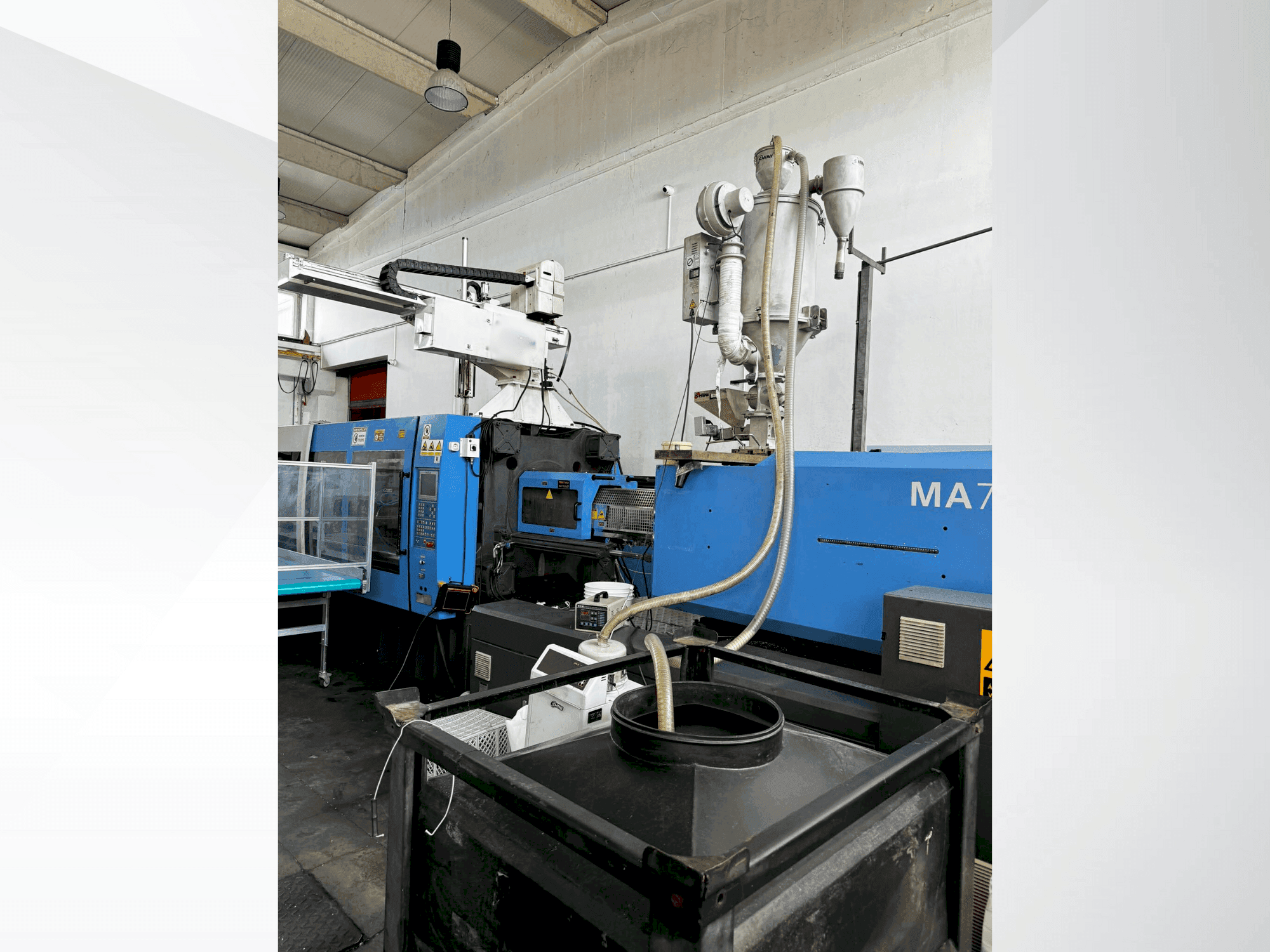

This HAITIAN MA 7000/6800 injection moulding machine was manufactured in 2011. It features a robust injection capacity of 3228 grams and an impressive maximum injection pressure of 1860 Bar. The machine's mold clamping force reaches up to 700 tons, supporting mold thicknesses from 400 mm to 940 mm. The spacing between tie bars is a generous 1840 mm. Consider the HAITIAN MA 7000/6800 machine we have for sale. For more information about this injection moulding machine, please reach out to us.
Overview
- brand: HAITIAN
- year: 2011
- MODEL: MA 7000/6800
- application type: Injection Moulding
- Location: Croatia
- machine type: Injection Moulding Machines
- availability: Immediately
- GINDUMAC ID: HR-INJ-HAI-2011-00002
Technical Information
Main drive
- Main motor power: 138.15 kw
Injection Unit
- Screw diameter: 100 mm
- Injection pressure: 3228 g BAR
Clamping unit
- Clamping force: Maximum: 700 tons KN
- Distance between bars: 1840 mm
- Mould height min: 400 mm
- Mould height max: 940 mm
Additional Equipment
- - Brand new injection cylinder
- - New oil cooler
- - ALFA ROBOT
- - Without conveyor
Additional Information
- Technical Machine Benefits:
- - Injection capacity: 3228 g
- - Diameter of central ring: 220 mm
- - Distance between guide rails: 960x940 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
