HAITIAN - MARS 5300/4500CZ-INJ-HAI-2008-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used HAITIAN MARS 5300/4500 For Sale | gindumac.com

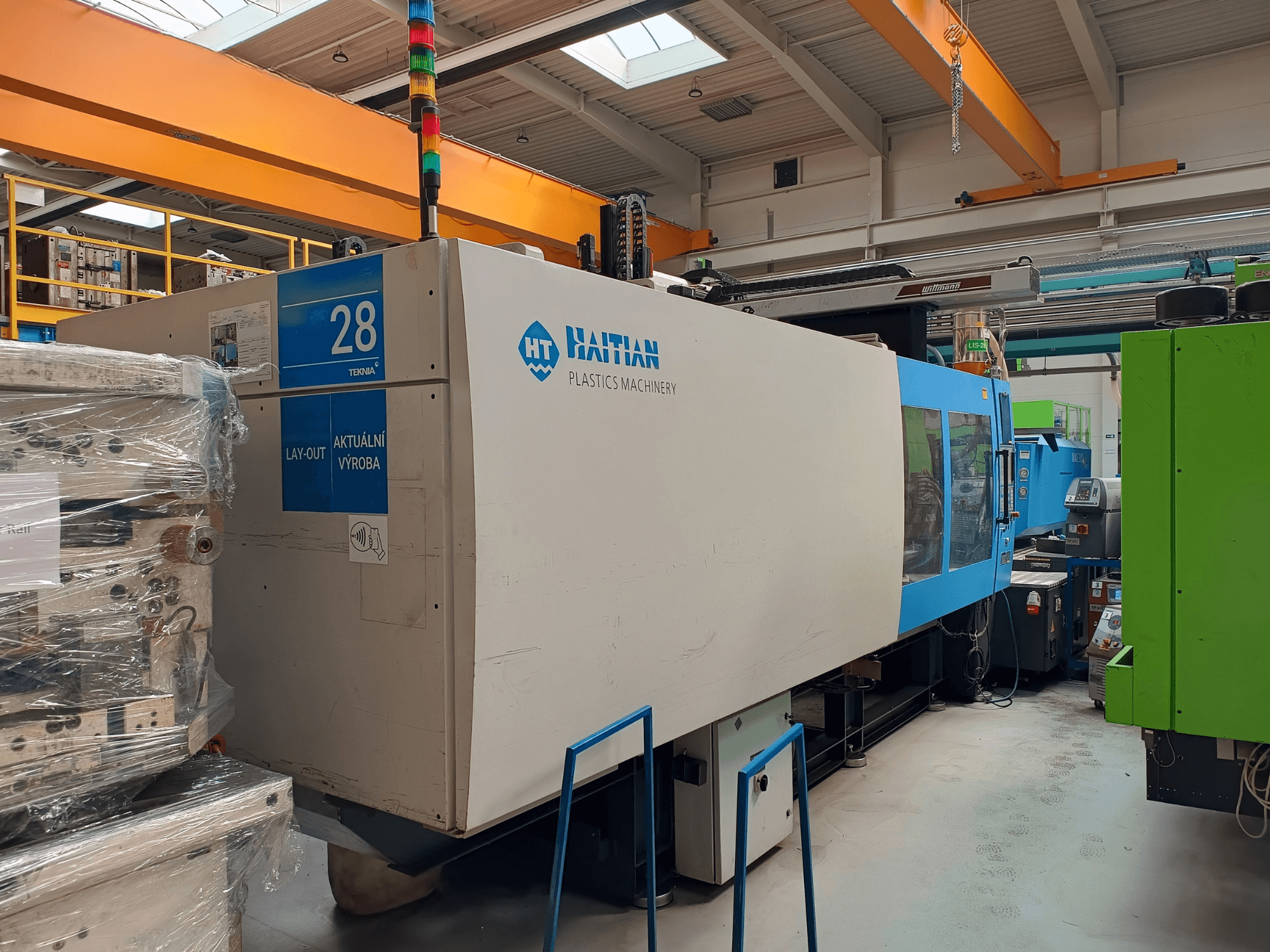

Hydraulic injection moulding machine manufactured in 2008. This HAITIAN MARS 5300/4500 features a clamping force of 530 tons and a minimum mold height of 240 mm. It includes a screw diameter of 80 mm and a shot volume of 2212 cm³. If you are looking to get high-quality injection moulding capabilities, consider the HAITIAN MARS 5300/4500 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: HAITIAN
- year: 2008
- MODEL: MARS 5300/4500
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Hydraulic Injection Moulding Machine
- control unit brand:
Technical Information - HAITIAN MARS 5300/4500
Technical Specification
- Clamping Force: 5300 kN
- Screw Diameter: 80 mm
Additional Information
Tie bar spacing (W×H): 840 × 830 mm
Magnetic clamping: Yes
Minimum platen size (W×H): 580 × 530 mm
Minimum mold height: 240 mm
Maximum distance between platens: 740 mm
Maximum weight of moving mold half: 1700 kg
Centering ring diameter/height: 200 (120) / 15 mm
Sprue bushing radius: R19
Ejector coupling thread diameter: M24
Shot volume: 2212 cm³
Hydraulic core pulls: 2
Power supply: 196 A
Additional equipment
Hot runners: 16
Hydraulic cascades (valve gate control): 8
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
