HALTER - Automation Load Assistant S-180-20DE-ROB-HAL-2018-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Automation Equipment
- Halter Automation Load Assistant S-180-20 Robot

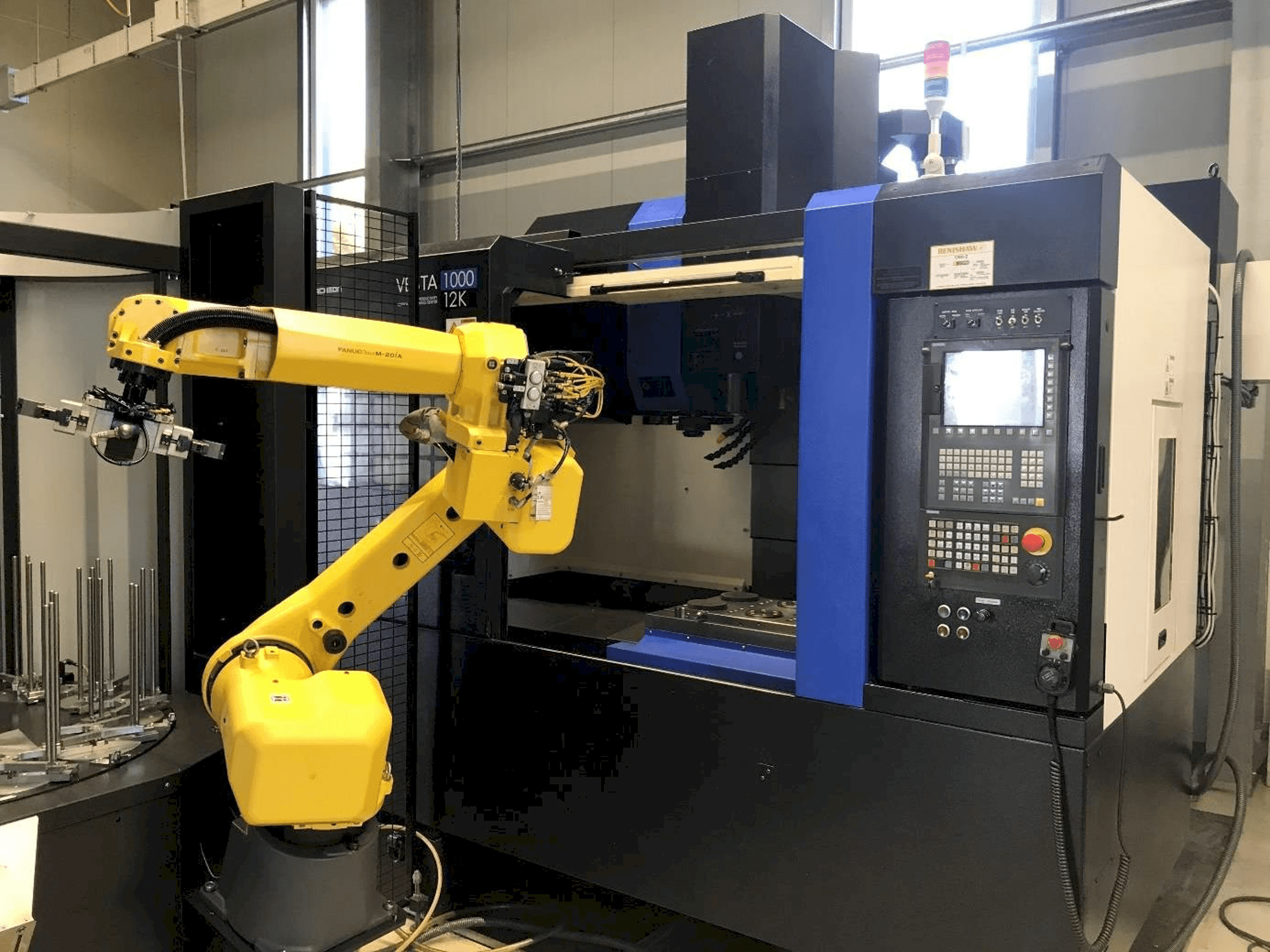

This Halter Automation Load Assistant S-180-20 Robot was manufactured in the year 2018. The machine has a minimum workpiece of 40 mm x 40 mm.
Overview
- brand: HALTER
- year: 2018
- MODEL: Automation Load Assistant S-180-20
- application type: Other Automation Equipment
- Location: Germany
- machine type: Work Piece Handling System
- availability: Sold
Technical Information - HALTER Automation Load Assistant S-180-20
Additional Information
- Technical Machine Benefits:
- - Fanuc 6 axis robot arm: 20/ 35 kg
- - Max workpiece: 40 mm x 40 mm
- - Maximum height of workpiece: 175 mm
- - Maximum total weight on rotating table: 1250 kg
- - Maximum stacking height: 350 mm
- - Rotating loading
- - High safety full cladding
- - Workpiece turning function
- - Collecting tray for residual coolant
- - Standard robot interface for all cnc machines
- Qualitative Machine Benefits:
- - Maximum load capacity of the robot arm 20kg
- - Graphically supported programming in 12 steps
- - Adjustable blow-out function- 2-finger double gripper from schunk
- - Loading and unloading of eccentric workpieces
- - Automatic program storage
- - Program integration of free programming cycles possible
- - Graphic display of machine utilization
- - Swiveling control panel with 15" touchscreen
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
