Hanwha - XD20V COMBINEDCH-TUR-HAN-2014-00001

70,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Hanwha XD20V COMBINED was manufactured in 2014. It features a maximum rotation speed of 10,000 rpm and a maximum working diameter of Ø20 mm. With a robust design and a weight of 2500 kg, this machine is ideal for precision turning applications. If you are looking to get high-quality Swiss type turning capabilities, consider the Hanwha XD20V COMBINED machine we have for sale. Contact us for further details.

Overview

  • brand: Hanwha
  • year: 2014
  • MODEL: XD20V COMBINED
  • production hours: 22076
  • application type: Turning
  • Location: Switzerland
  • machine type: Swiss Type Turning Machine

Technical Information - Hanwha XD20V COMBINED

Dimensions

  • Machine Height: 1671 mm
  • Machine Length: 2291 mm
  • Machine Weight: 2500 kg
  • Machine Width: 1263 mm

Movement

  • Number of Axes: 5

Technical Specification

  • Counter Spindle: No
  • Driven Tools: No
  • Max. Bar Diameter: 20 mm
  • Spindle Speed: 10000 RPM

Additional Information

HANWHA XD20V

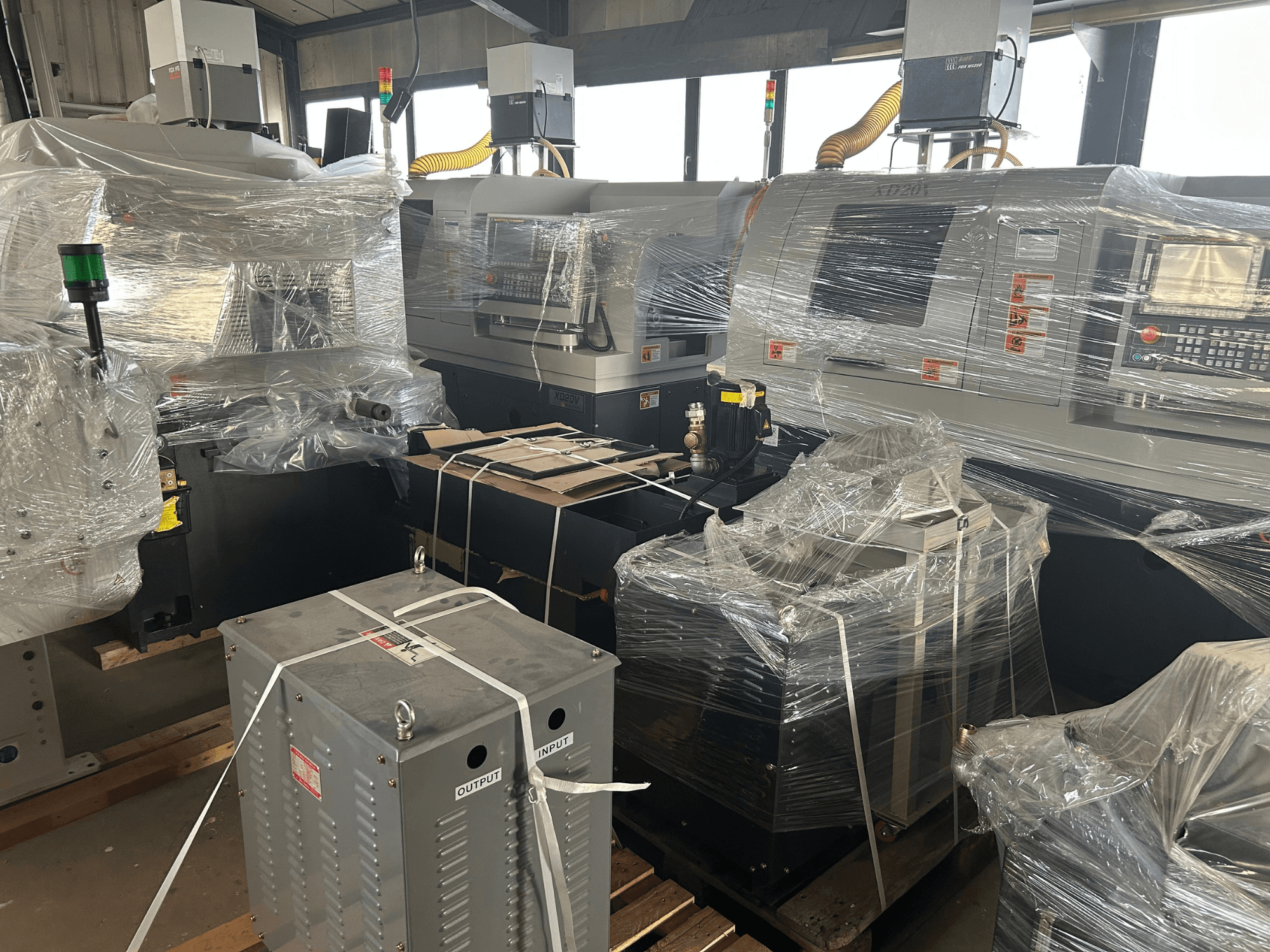

  • 4 Machines Available

  • Maximum Working Diameter: Ø20 mm

  • Rated Voltage: 3 Phases, 200/220 VAC

  • Rated Current: 60 A

  • Rated Frequency: 50/60 Hz

  • Ampere Interruption Capacity: 10 kA

  • Short Circuit Current Rating: 2.5 kA

  • Operating Air Pressure: 4~6 kg/cm² (3.9~5.9 bar)

Machine 1

  • Machining Hours (TEMPS USIN.): 43,977 h

Machine 2

  • Machining Hours (TEMPS USIN.): 42,043 h

Machine 3

  • Machining Hours (TEMPS USIN.): 34,212 h

Machine 4

  • Machining Hours (TEMPS USIN.): 22,076 h

IEMCA ELITE 220 R 32 LL (Bar Feeders)

not included, optional

  • Manufacturer: IEMCA

  • Model: ELITE 220 R

  • Type: 32 LL

  • Bar Capacity: Ø32 mm

  • Air Pressure: 6 bar

  • Voltage: 200 V

  • Phase: 3~

  • Frequency: 50 Hz

  • Current: 8.1 A

  • Interrupting Capacity: 5 kA

Bar Feeder 1

  • Year: 2013

  • Weight: 630 kg

Bar Feeder 2

  • Year: 2014

  • Weight: 660 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
