- Hartford SW-426 Milling Machine

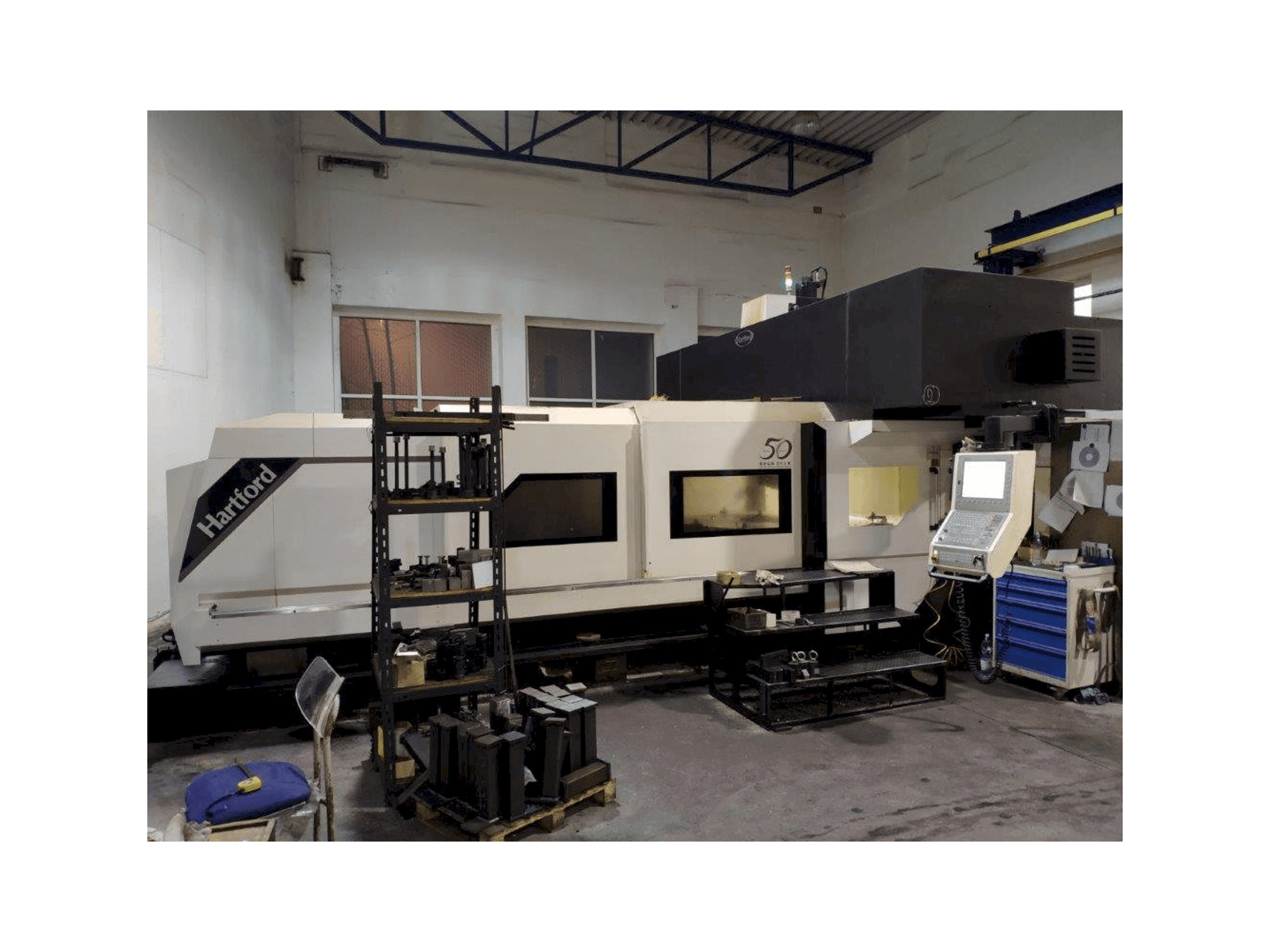

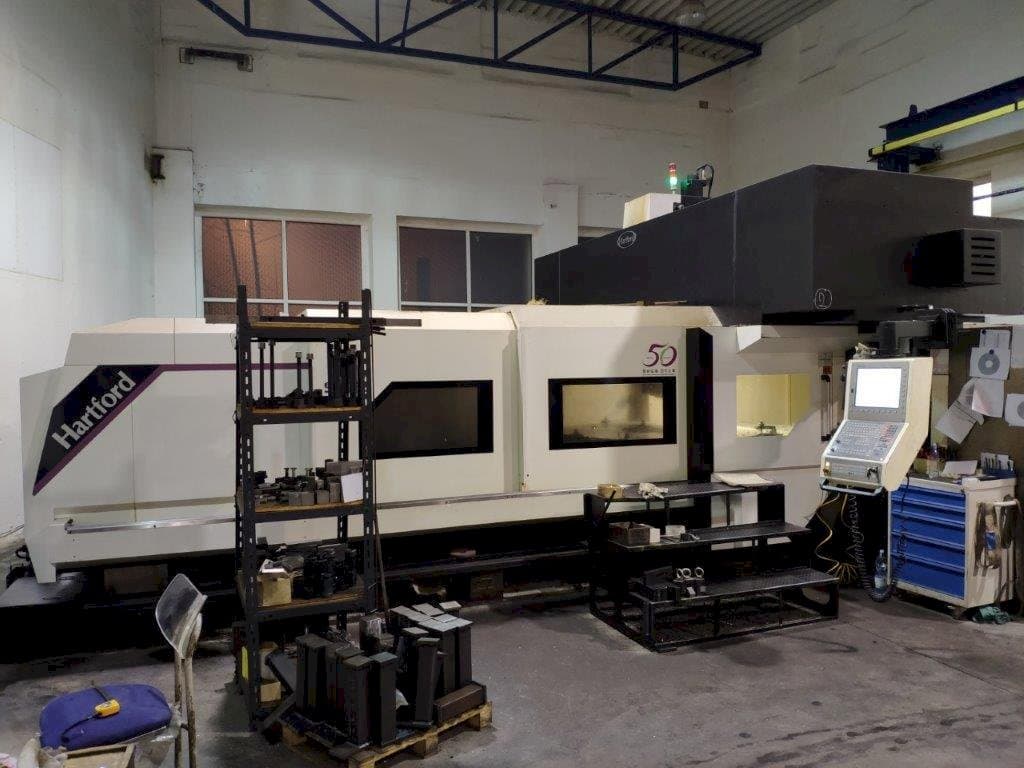

This Hartford SW-426 Milling Machine was built in 2015 and has been working for 16900 hours, from which 5252 are spindle hours. It is equipped with a HEIDENHAIN TNC 530 Control unit. This machine can work with a spindle speed of 6000 rpm. It includes an angle head HR-S90L, with 5 degrees indexation, hydraulic clamping, and 2000 rpm.
Overview
- brand: HARTFORD
- year: 2015
- MODEL: SW-426
- production hours: 5252
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HARTFORD SW-426
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Depth: 6630 mm
- Table Length: 4000 mm
- Table Width: 2500 mm
Movement
- X-axis Travel: 4000 mm
- Y-axis Travel: 2600 mm
- Z-axis Travel: 780 mm
Technical Specification
- Max. Tool Weight: 15 kg
- Spindle Power: 30 kW
- Spindle Speed: 6000 RPM
Additional Information
Additional equipment
- Angle head HR-S90L, 5 degrees indexation, hydraulic clamping, 2000 rpm
- 1x Renishaw RMP 60 workpiece probe
- 1x Renishaw RTS tool probe
Machine Benefits
Qualitative Machine Benefits
- Complete machine covering
- Air gun, handwheel hr 410
- 15'' lcd display
Technical Machine Benefits
- Spindle nose - table distance 160-940 mm
- Cutting feedrate 5. 000 mm/min
- Rapid feedrates x,y: 10. 000 mm/min; z: 12. 000 mm/min
- Revolving arm for head change
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
