➤ Used HELLER H2000 For Sale | gindumac.com

Show in original language

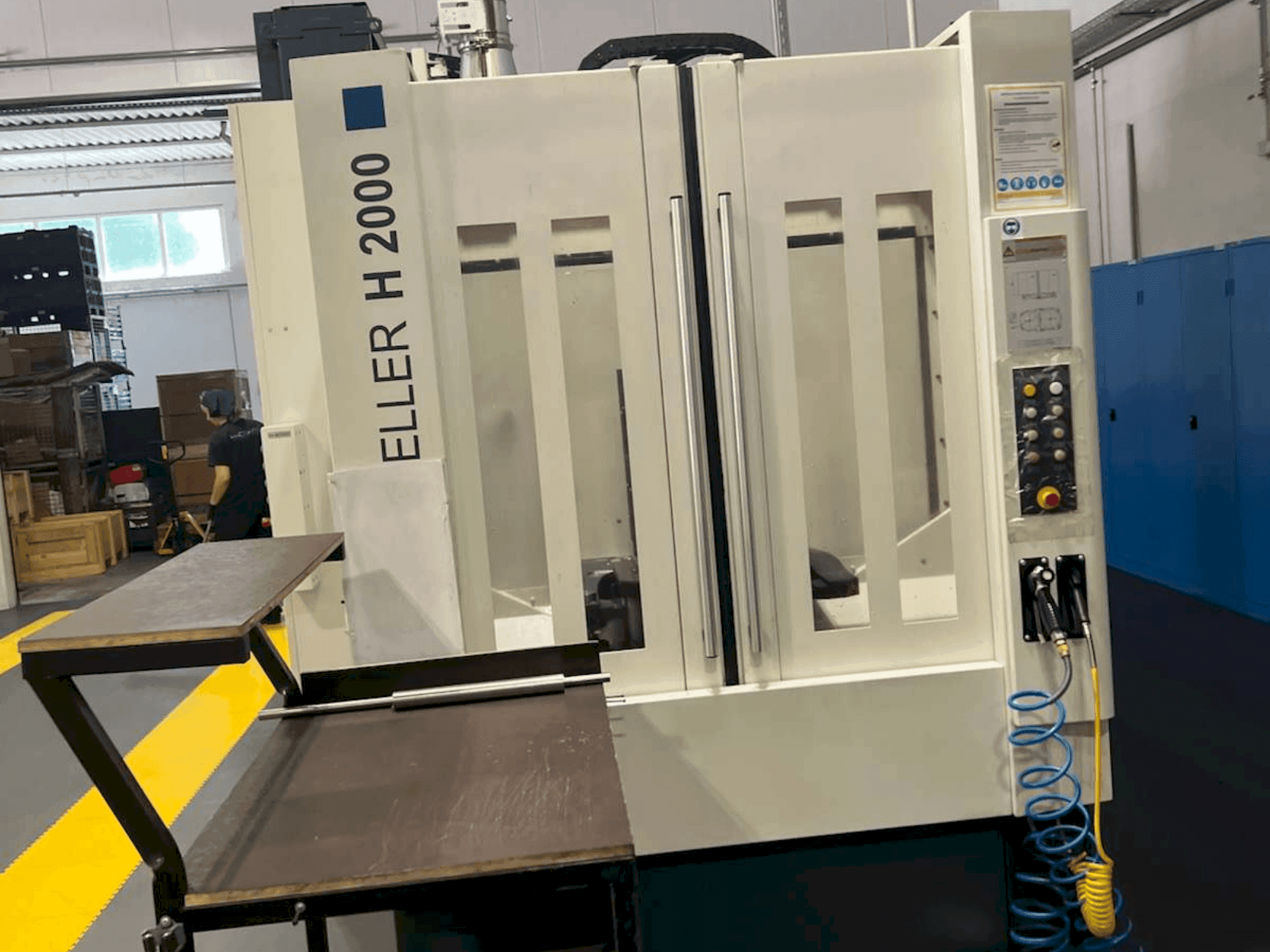

This 4-axis HELLER H2000 horizontal machining center was manufactured in 2017. It features a Siemens 840D Solution Line control, rapid traverse of 60,000 mm/min, and a spindle speed of 10,000 rpm. The machine can handle workpieces up to 720 mm in diameter and 850 mm in height, with a maximum table load of 600 kg. Consider the opportunity to buy this HELLER H2000 horizontal machining center. Contact us for more information about this machine.

Overview

brand: HELLER
year: 2017
MODEL: H2000
application type: Milling
Location: Slovenia
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - HELLER H2000

Control Unit

Brand: SIEMENS
Model: 840D Solution line

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 630 mm
X-AXIS Rapid traverse: 60000 mm/min
Y-AXIS Movement: 630 mm
Y-AXIS Rapid traverse: 60000 mm/min
Z-AXIS Movement: 630 mm
Z-AXIS Rapid traverse: 60000 mm/min

Table

Table load: 600 kg

Tools

Type of tool holder: HSK 63 A

Media

Chip conveyor: Yes

Additional Equipment

- Chip conveyor
- Coolant filtration with paper filter KF 400
- Through-spindle coolant, 50 bar
- Work area flushing

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Acceleration: 8 m/s²
- - Standard color: grey-white / sand grey / ultramarine blue
- - Max. Workpiece diameter: 720 mm
- - Max. Workpiece height: 850 mm
- - Nc rotary table, indexing 360000 × 0. 001°
- - Clamping station, manually operated pallet, 4 × 90°
- - 2 pallets, 400 × 500 mm
- - Tool magazine positions: 54

Extra information

- Operating mode: Mode 3 Electrical: 50 Hz, 400 V Hydraulic interface for tool clamping, 5-fold, 60 bar Additional hydraulic control line Hydraulic connection kit with couplings (2 units) Nosepiece for multi-spindle head Infrared receiver for RENISHAW probe RENISHAW probe Drill breakage detection system Signal tower (red-yellow-green) Technology cycles package Additional operating panel at tool magazine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
