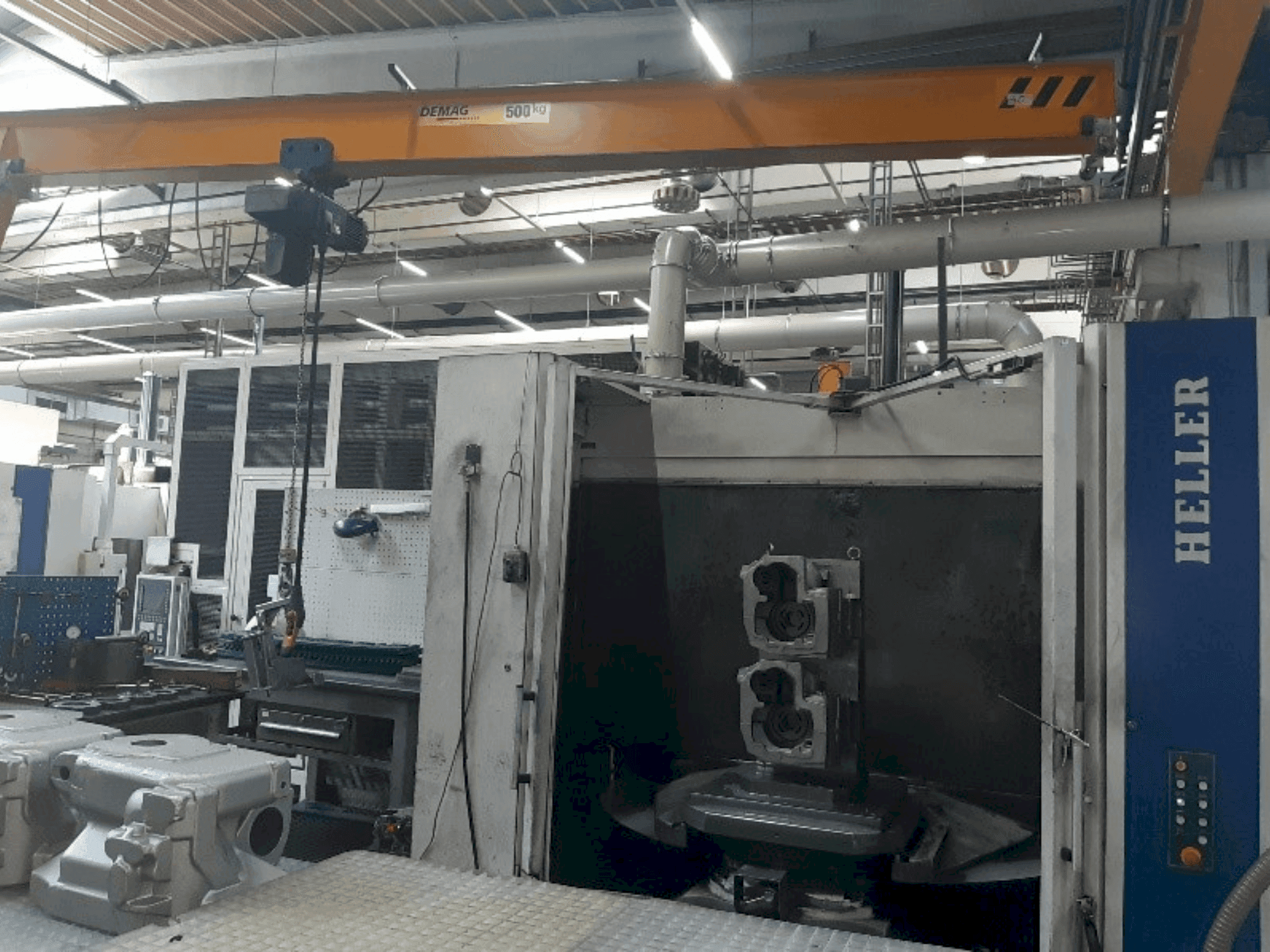

This 4-axis HELLER MCH 350 was manufactured in 2006, featuring a Siemens 840D PL control system and a robust spindle capable of 7,000 rpm. It includes a HSK 100 tool clamping system and a large magazine with 234 slots. The machine offers a substantial working area of 1250 x 1000 x 1000 mm and a pallet size of 800 x 800 mm. For more information about this machining centre, please reach out to us.
Overview
- brand: HELLER
- year: 2006
- MODEL: MCH 350
- production hours: 48659
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - HELLER MCH 350
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D PL
Dimensions
- Table Length: 800 mm
- Table Width: 800 mm
Movement
- Number of Axes: 4
- X-axis Travel: 1250 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Spindle Power: 43 kW
- Spindle Speed: 7000 RPM
- Taper Size: HSK 100
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- KNOLL Coolant System, VRF 250, IKZ 50 bar
- Rotary table with 360,000° x 0.001° positioning
- Infrared receiver for measuring probe (BLUM)
- Multi-spindle head mount
- Quick drill breakage control (SBBK)
- Code chip for tools runtime and quantity recording
- Integrated process monitoring (IPM)
- Disk blowing device for operator door
- Evacuation strategy
Machine Benefits
Qualitative Machine Benefits
- Comprehensive tool management and monitoring systems enhance precision and efficiency
- Robust cooling and safety features ensure optimal operation and worker safety
Technical Machine Benefits
- Internal cooling: yes, 50 bar
- Control panel at tool insertion point with terminal
- Workpiece clamping: mechanical
- High spindle power and torque for heavy-duty machining
- Advanced rotary table for precise multi-axis positioning
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
