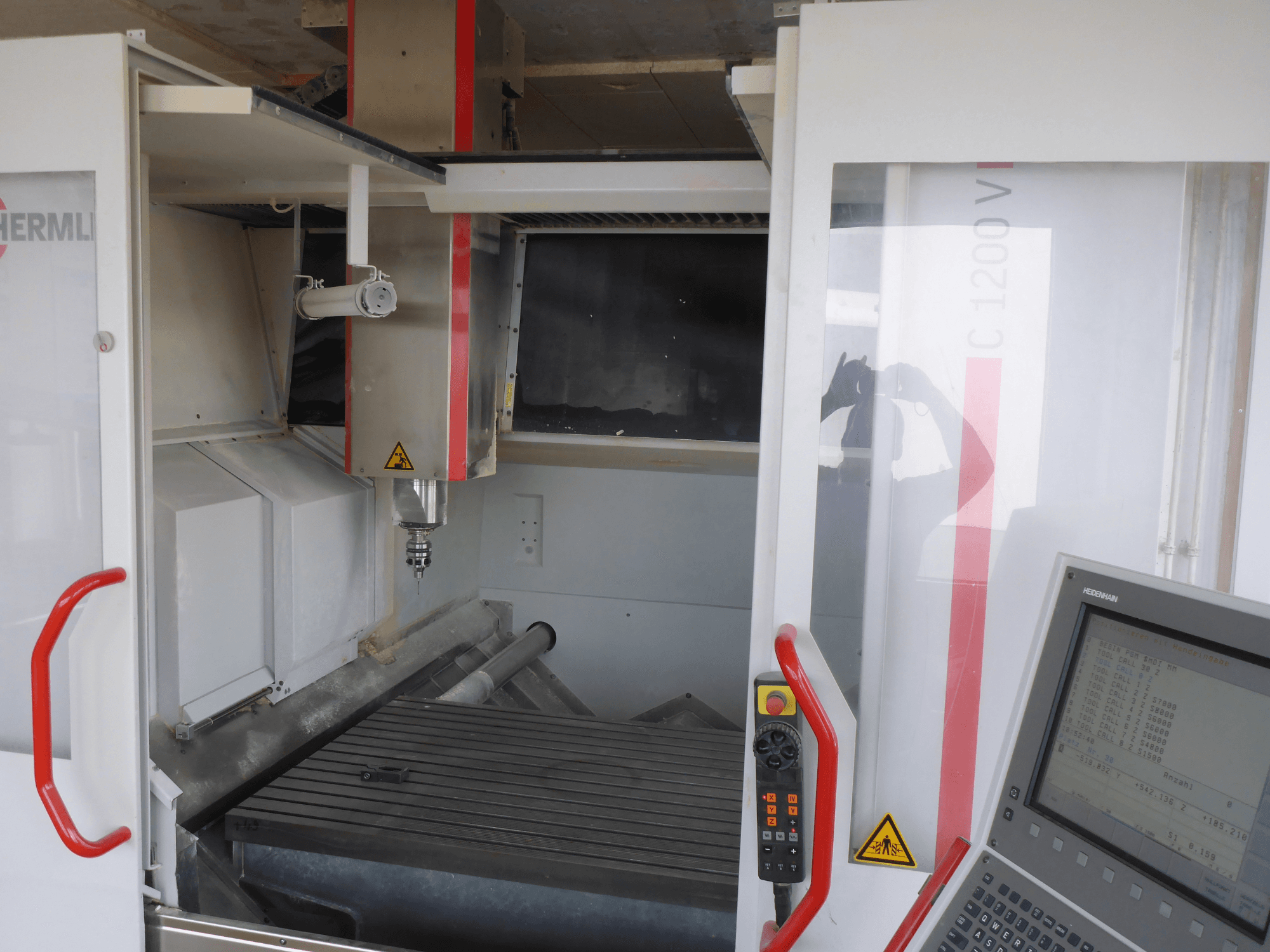

This 3-axis HERMLE C 1200 vertical machining centre was manufactured in 2009. It features an impressive X-axis travel of 1200 mm, Y-axis travel of 900 mm, and Z-axis travel of 500 mm. The machine is equipped with a spindle speed of 16,000 rpm and includes 30 tool stations. If you are looking to get high-quality machining capabilities, consider the HERMLE C 1200 machine we have for sale. Contact us for further details.
Overview
- brand: HERMLE
- year: 2009
- MODEL: C 1200
- production hours: 9192
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HERMLE C 1200
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Movement
- Number of Axes: 3
- X-axis Travel: 1200 mm
- Y-axis Travel: 900 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Speed: 16000 RPM
- Taper Size: SK 40
Additional Information
X – 1200 mm
Y – 900 mm
Z – 500 mm
Machining Center C 1200 V
Heidenhain iTNC 530 contouring control
Spindle 16,000 rpm
SK 40
30 Tool Stations
Rigid Clamping Table
Coolant System
Electronic thermal compensation (iTNC) with temperature sensors on the motor spindle and machine base
Portal design with a closed rear wall for significantly better support during torsional loads
Two axes are located in the tool, providing very good mass distribution and ideal conditions for high rapid traverse and feed rates
Feed screw diameter and pitch (X and Z axes): 40 / 20 mm
Feed screw diameter and pitch (Y axis): 50 / 20 mm
Direct measuring system
Resolution: 0.0001 mm
Position tolerance (Tp) in X-Y-Z axes according to VDI/DGQ 3441: 0.010 mm
Recommended ambient temperature for maintaining accuracy: 20 °C ± 1 °C
Flushing/wash-down system for rinsing the side work area
Display: 15" TFT color flat screen
Flexible contour programming
Part program memory
Tool diameter capacity: 80 mm
Tool diameter with free adjacent slots: 125 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Maximum magazine load: 120 kg
Chip-to-chip tool change time according to VDI 2852: 6.5 seconds
Manual control unit includes electronic handwheel, axis direction keys, feed control, rapid traverse, emergency stop, and enable switch
Machine on – 11,927 h
Spindle on – 9,192 h
Additional equipment
Chip conveyor
Heidenhain touch probe
Electronic Manual Control Module (iTNC)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
