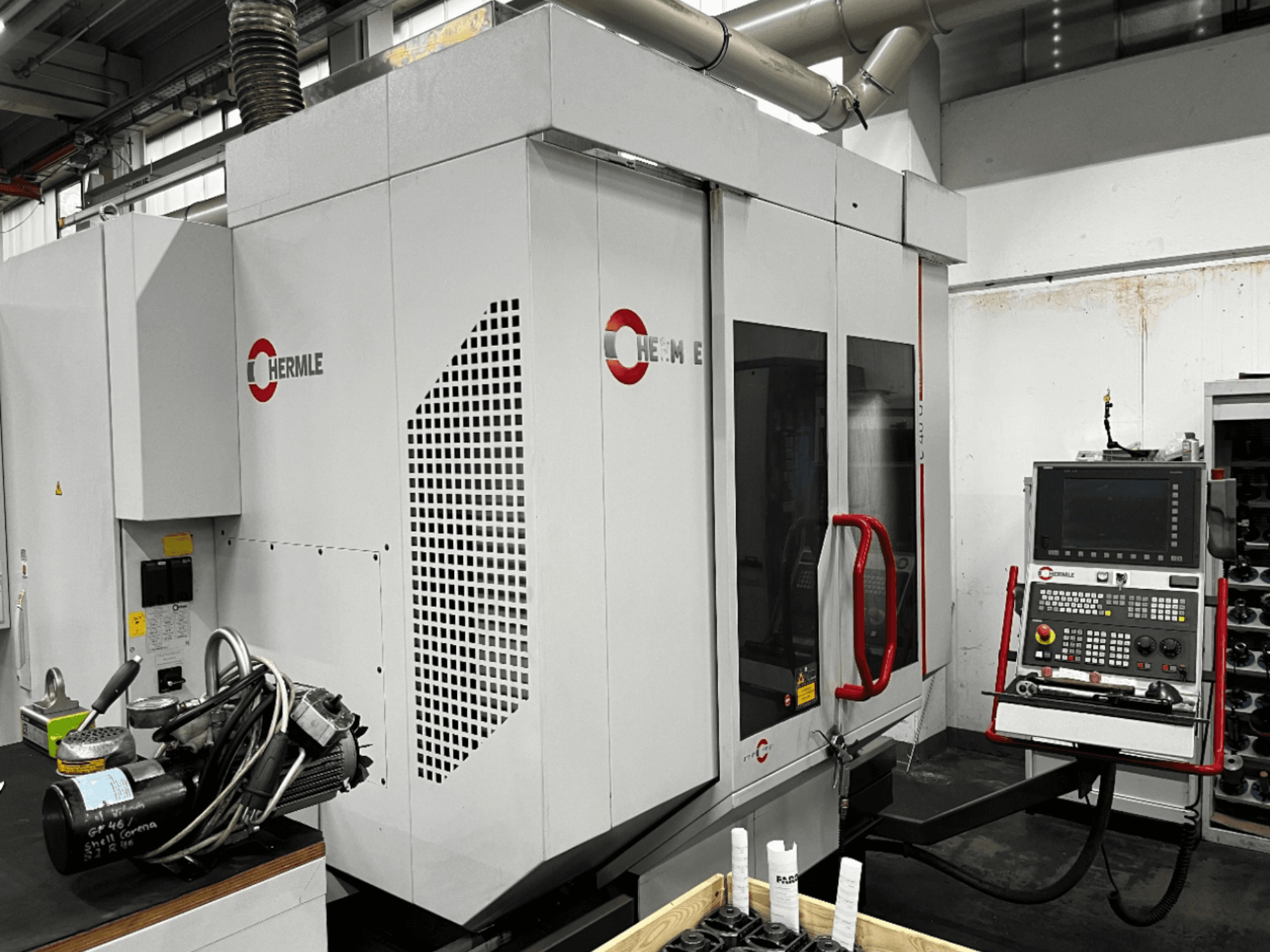

HERMLE C40U universal machining centre in a workshop, front view, showing control panel and detailed machine design.
HERMLE C40U universal machining centre in a workshop, front view, showing control panel and detailed machine design.

HERMLE - C40U DynamicDE-MIL-HER-2011-00004

89,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis HERMLE C40U Dynamic universal machining centre was manufactured in 2011. It features a travel of 850 mm in the X-axis, 700 mm in the Y-axis, and 500 mm in the Z-axis. The machine has a maximum spindle speed of 10,000 rpm and a magazine capacity of 38 positions plus 43 additional. If you are looking to get high-quality machining capabilities, consider the HERMLE C40U Dynamic machine we have for sale. Contact us for further details.

Overview

  • brand: HERMLE
  • year: 2011
  • MODEL: C40U Dynamic
  • production hours: 35044
  • application type: Milling
  • Location: Germany
  • machine type: Universal Machining Centre
  • Available from: 01/09/2026

Technical Information - HERMLE C40U Dynamic

Dimensions

  • Machine Height: 3000 mm
  • Machine Length: 2500 mm
  • Machine Weight: 11000 kg
  • Machine Width: 2500 mm
  • Table Load: 500 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 850 mm
  • Y-axis Travel: 700 mm
  • Z-axis Travel: 500 mm

Technical Specification

  • Max. Tool Weight: 8 kg
  • Number of Tools: 82
  • Spindle Power: 16.8 kW
  • Spindle Speed: 10000 RPM
  • Taper Size: SK 40

Additional Information

  • Utilization: 70%

  • Shifts: 2

  • Operating hours: 35,044.4 h

  • Rotary table diameter: 420 mm

  • Clamping surface diameter: 420 mm

  • Spindle:

    • Power at 40%: 1500 rpm = 25 / 16.8 kW; 10,000 rpm = 7 kW

    • Torque at 40%: 1500 rpm = 159 / 107 Nm; 10,000 rpm = 6.7 Nm

  • Tooling/magazine:

    • Number of revolvers/magazines: 2

    • Magazine capacity: 38 positions

    • Additional magazine + 43 positions

    • Maximum tool length: 300 mm

    • Maximum tool diameter: 140 mm

    • Knoll Cooling

    • Renishaw OMP 40 probe

    • IKZ (inner cooling through spindle)

    • Laser beam monitoring

    • Chip conveyor

    • SK 40

    • Operating voltage 400 V/3~

    • Mains frequency 50 Hz

    • Control voltage 24 V-

    • Total nominal current 60 A

    • Total performance 41 kVA

Additional equipment

  • OPTIONAL for an additional charge: Tooling package available: approx. 530 tools

  • OPTIONAL for an additional charge: Zero-Point Clamping System

Machine was maintained in 2025 by HERMLE official

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
