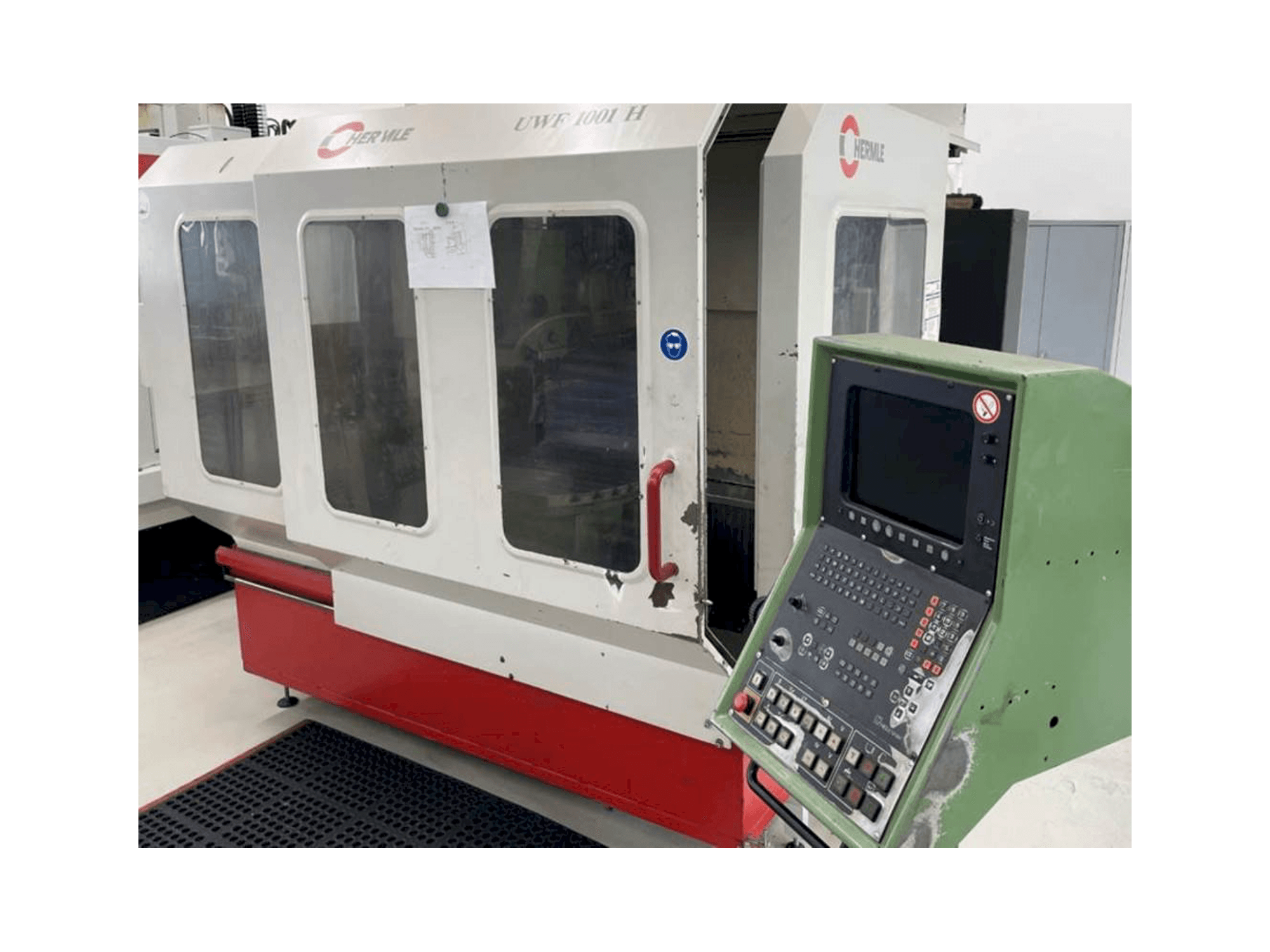

Hermle UWF1001 Milling machine

Show in original language

This Hermle UWF1001 Milling machine was manufactured in the year 1990. It is equipped with a HEIDENHAIN TNC 407 control unit. The machine has a spindle speed of 25-4200 rpm.

Overview

brand: HERMLE
year: 1990
MODEL: UWF1001
application type: Milling
Location: Austria
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE UWF1001

Control Unit

Model: TNC 407
Brand: HEIDENHAIN

Main drive

Spindle speed range: 25-4200 1/MIN
Spindle motor power: 12 kW

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 550 mm
Z-AXIS Movement: 500 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool holder, horizontal and vertical - iso 40 din 2079
- - Tool clamping hydromechanical, clamping collar - 13000 n
- - Spindle diameter at front position horizontal / vertical - 75/55 mm
- - Pinolennuo vertical - 95 mm
- - Single feed motors for each axis - three-phase current (brushless)
- - Feed range in x, y, z - 1...... 5000/10000 mm/min
- - Elbow travel in all axes - 10 m/min
- - Measurement x, y, z - direct auffoesung - 0. 001 mm input fineness - 0. 001 mm display step - 0. 001 mm resolution 4th axis - 0. 001 mm degrees
- - Rigid angle table... - 1000x500 mm
- - Number and distance of t-slots, width of t-slots - 7 / 63 / 14 h7 mm
Qualitative Machine Benefits:
- - Universal clamping table table top - 650 x 395 mm
- - Table top - 420 mm
- - Nc round table table top swivels 30 degrees (4th axis) - 500 mm
- - Table top swivels 4 degrees (4th axis) - 650 mm
- - Table top swivels 3 degrees (4th axis) - 800 x 500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
