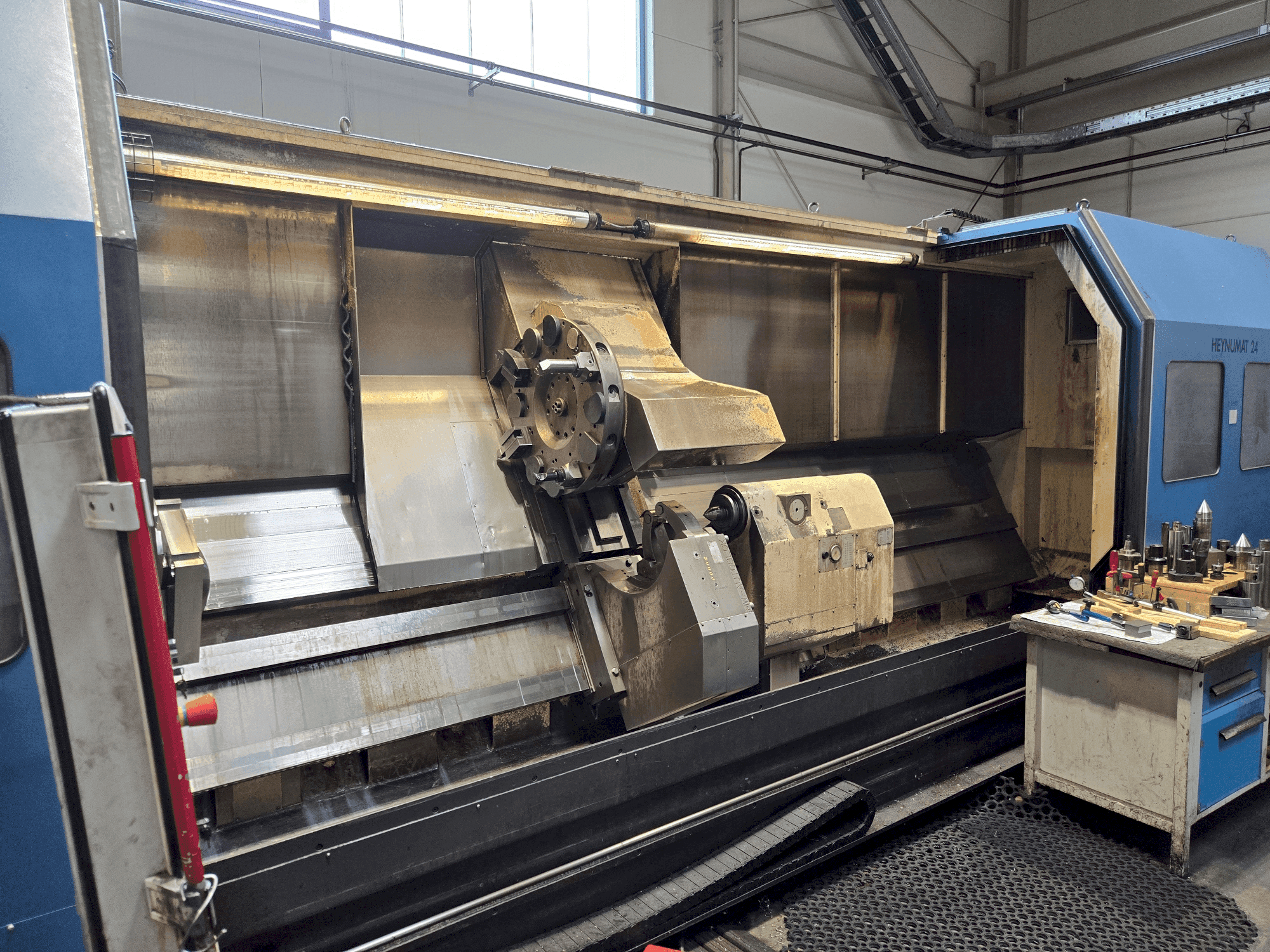

Front view of HEYNUMAT 24 UK/4000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HEYNUMAT 24 UK/4000

Photo Gallery

HEYNUMAT - 24 UK/4000DE-TUR-HEY-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HEYNUMAT 24 UK/4000 For Sale | gindumac.com

Show in original language

This HEYNUMAT 24 UK/4000 horizontal turning machine was manufactured in 2003. It features a robust spindle bore of 122 mm and a comprehensive spindle speed range up to 1800 rpm. The machine includes a CNC control Sinumerik 840C, ensuring precision and ease of operation. With a turning diameter over bed of 850 mm and a centre distance of 4000 mm, it's ideal for large-scale work. For more information about this horizontal turning machine, please reach out to us.

Overview

brand: HEYNUMAT
year: 2003
MODEL: 24 UK/4000
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - HEYNUMAT 24 UK/4000

Control Unit

Model: Sinumerik 840C
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 1800 rpm 1/MIN
Spindle bore: 122 mm
Tool taper: MK 6
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 15 m/min
Z-AXIS Movement: 4000 mm
Z-AXIS Rapid traverse: 15 m/min

Workpiece

Workpiece drm over bed: Ø 850 mm

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Steady rest type SLU, single version, centring range: 50-310 mm
Chip conveyor: Conveying direction along the machine, discharge height approx. 1200 mm, conveying capacity at 7 bar approx. 25 l/min

Machine Benefits

Technical Machine Benefits

Workpiece length: 4000 mm
Adjustable axial force: 2000-22000 n
Main cutting force: 20000 n
Feed force at 100% ed x/z-axis: 10000/22000 n
Rapid traverse speed x/z-axis: 15 m/min
Spindle diameter in front bearing: 200 mm
Spindle head: din 55026 size 15
Quill diameter/stroke: 160/150 mm
Tool shank diameter: 60 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
