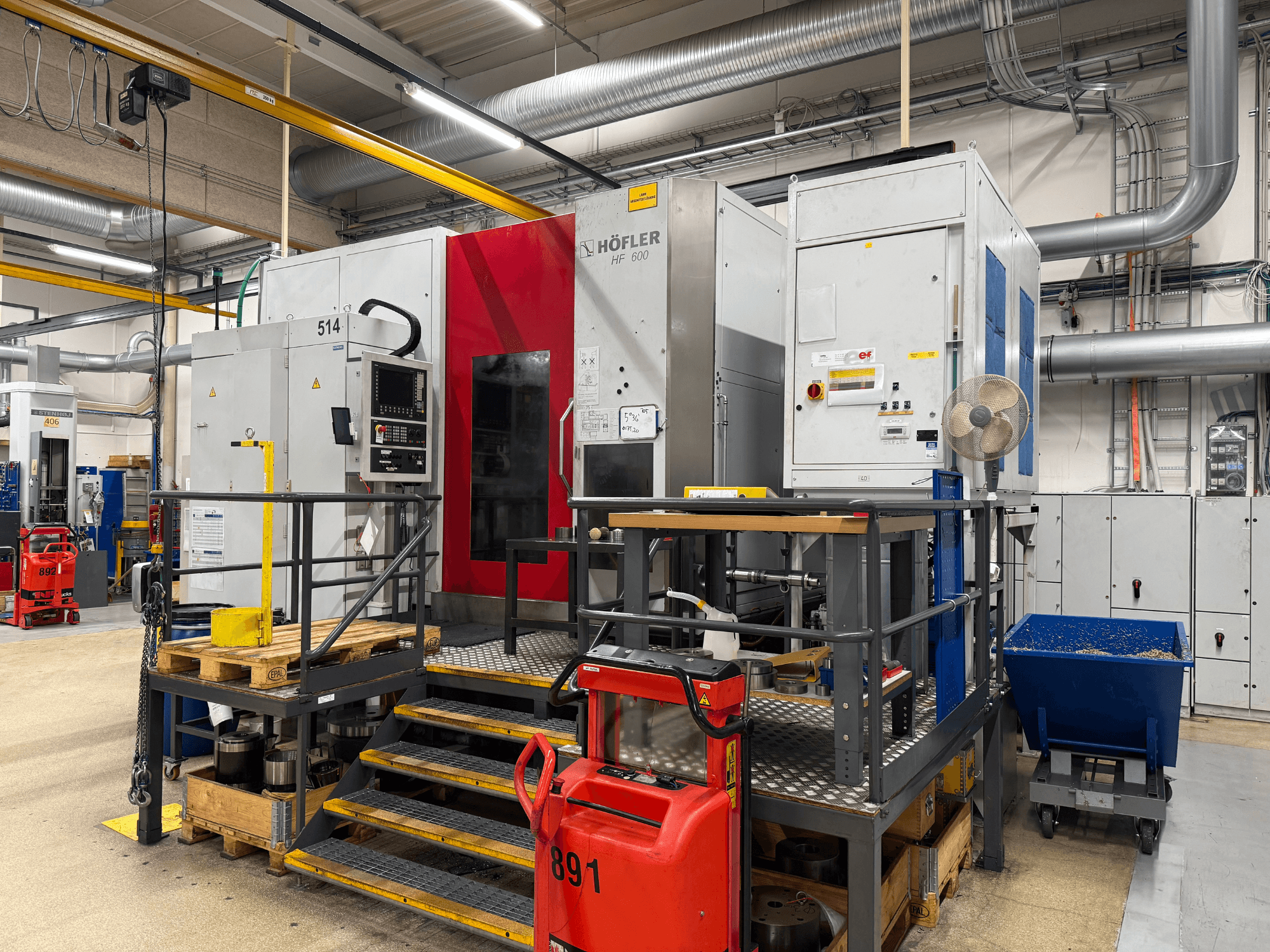

This 3-axis HOFLER HF 600 was manufactured in 2010. It is designed for precision machining and offers advanced capabilities for various applications. If you are looking to get high-quality machining capabilities, consider the HOFLER HF 600 machine we have for sale. Contact us for further details.
Overview
- brand: HOFLER
- year: 2010
- MODEL: HF 600
- application type: Other Machine Tools
- Location: Denmark
- machine type: Machine Tool
- Available from: 30/04/2026
- control unit brand: SIEMENS
Technical Information - HOFLER HF 600
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Dimensions
- Machine Weight: 31000 kg
- Table Load: 3750 kg
Movement
- Number of Axes: 3
- X-axis Travel: 450 mm
Additional Information
Physical data
Hobbing spindle speed range: 15–380 1/min
Workpiece table speed (max): 50 1/min
Hobbing spindle torque: 3,800 (5,500) Nm
Feed rates (max):
Radial: 2,000 mm/min
Vertical: 2,000 mm/min
Tangential: 2,000 mm/min
Table load (with counter support pressure): 3,750 (1,750) kg
Workpiece data
Max workpiece diameter: 600 mm
Radial center distance: 40–590 mm
Max module: 16 (25) mm
Tool data
Tangential shift path (max): 450 mm
Hobbing head swivel angle: ±45°
Max tool diameter: 290 mm
Max tool length: 470 mm
Cutter arbor cone: similar HSK B 125
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
