HOMAG - KAL 330/9/A6/LDE-EDG-HOM-2011-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used HOMAG KAL 330/9/A6/L For Sale | gindumac.com

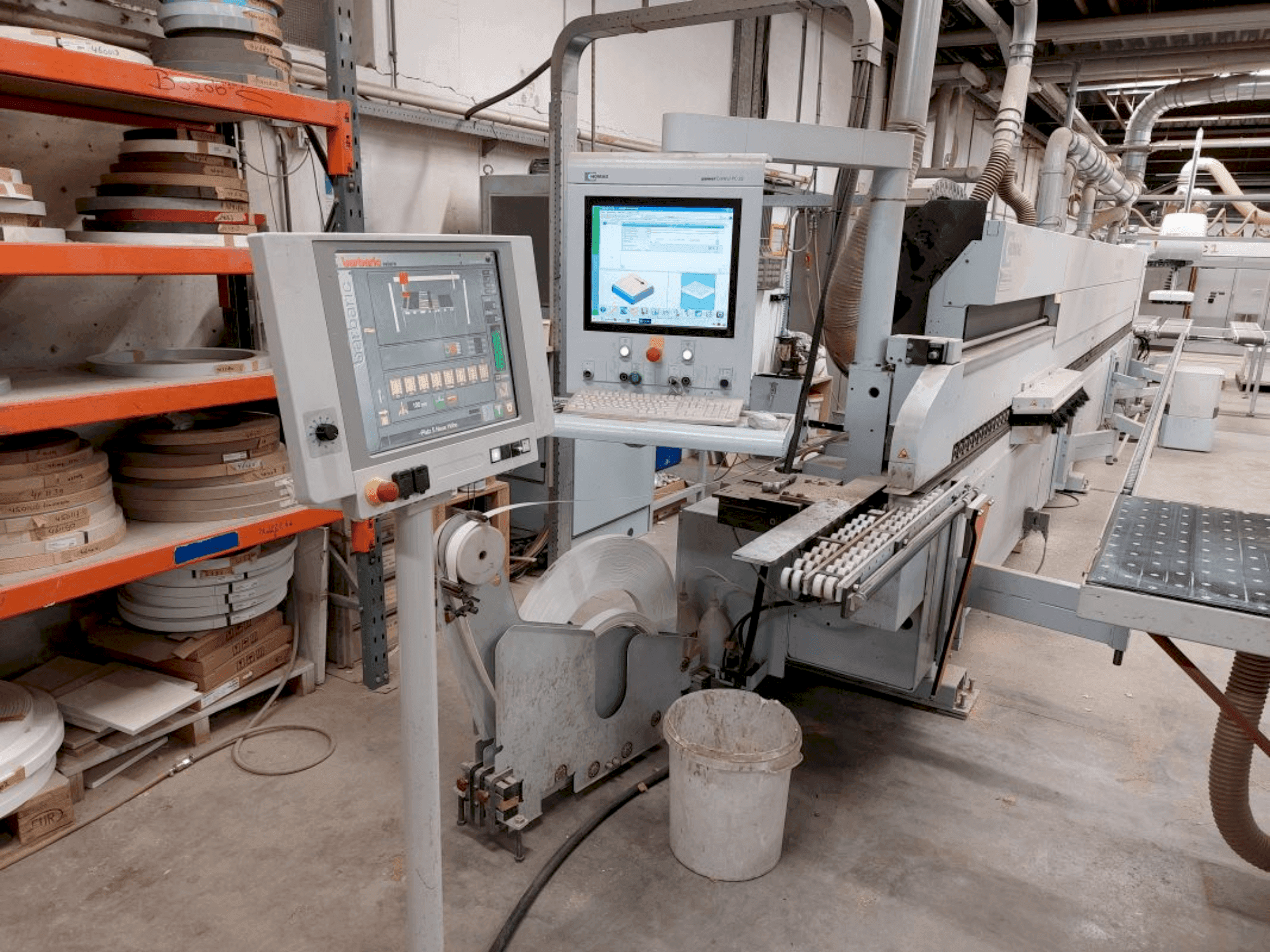

This HOMAG KAL 330/9/A6/L edgebander was manufactured in 2011. It features a robust machine stand, electronic height adjustment, and a transport chain with a rubber pad. The machine includes a Quickmelt application unit with electronic temperature control and a pressure zone with pneumatic adjustment. Ideal for processing straight workpiece edges, it supports various edge materials. For more information about this edgebander, please reach out to us.
Overview
- brand: HOMAG
- year: 2011
- MODEL: KAL 330/9/A6/L
- application type: Edge Banding
- Location: Germany
- machine type: Edgebander
Additional Information
Additional equipment
- Pneumatically controlled infeed stop // Pneumatic pressure adjustment with driven pre-press roller and post-pressing rollers
- Top pressure with composite V-belt drive
- Transport chain with rubber pad, magnetically braked
- Workpiece support with extendable roller rail
- Noise protection with individual extraction
- Quickmelt application unit with electronic temperature control
- Magazine for solid edges, strips, and rolls
- Automatic strip separation via vacuum suction cup
- Edge monitoring with feed stop and edge sequence control
- Mounted switch cabinet with electronic frequency converter
Machine Benefits
Qualitative Machine Benefits
- Improved gluing quality, consistent processing
Technical Machine Benefits
- Laser safety device with laser certificate protection class 1
- Portal return barbaric
- Manual changeover from lasertec to pu/eva
- Enhanced glue application, efficient material handling
- Basic machine design includes a continuous machine stand for mounting processing units.
- Fixed stop side left, painted gray rds 240 80 05.
- Adjustable infeed fence, with noise protection for joining and aggregate part.
- The machine is designed for straight workpiece edges and not for softforming.
- Includes an oscillating laser beam for melting the laser activation layer on the edgeband material.
- The laser beam wavelength is 980 nm.
Extra Information
Specific ground conditions must comply with the foundation plan. The machine comes with documentation on CD-ROM, with operating and maintenance instructions also available in printed form. Electrical equipment operates at a voltage of 400 Volt, 50/60Hz and includes a mounted switch cabinet. The prescribed ambient temperature is from 10 to + 40 °C. Speed setting on the input unit with an infinitely variable feed rate controlled by frequency.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
