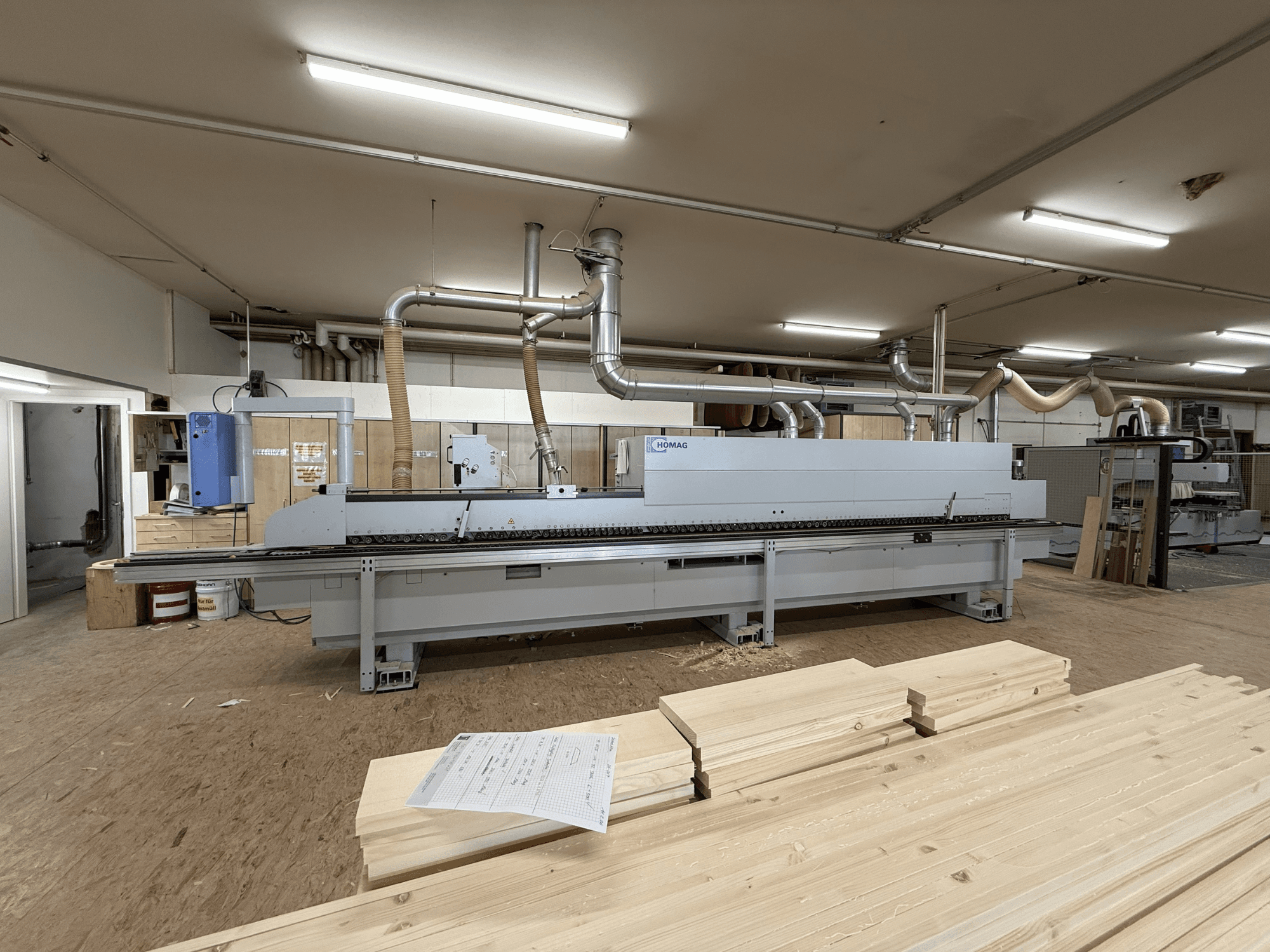

HOMAG - KAL211 Edition 2264DE-EDG-HOM-2012-00001

• Feed speed: 18–25 m/min

• Feed speed (max with FK11 unit): 20 m/min

• Working height: 950 mm

• Pneumatic connection: 6 bar

• Total length: 7845 mm

• Workpiece width (min):

  • 60 mm at 12–22 mm thickness

  • 105 mm at 23–40 mm thickness

• Workpiece thickness: 8–60 mm (extended via options 0841/0843)

• Edge material thickness:

  • Rolls: 0.3–3 mm

  • Strips: 0.4–20 mm

• Electrical:

  • Supply voltage: 400 V / 3 Ph / 50 Hz

  • Total load current: 67 A

  • Control voltage: 24 V

• Control system: powerControl PC22 (Windows XP based)

• Software: woodCommander; woodScout (option); Schuler MDE Basic

• Aggregates/units:

  • Separation agent spraying unit (top/bottom)

  • Joint trimming unit (2 motors, 4 kW each)

  • Gluing unit A20 with 2 rollers (Quickmelt system)

  • PU65 application unit (exchangeable, Teflon coated)

  • Preparation for laserTec activation unit

  • End trimming unit HL84 (0.8 kW)

  • Pre-milling unit BF10 (1.5 kW)

  • Multi-profile form milling unit FK11 (manual adjustment)

  • Profile scraper PN10

  • Finish unit (glue joint scraper + buffing unit)

  • Cleaning agent spraying unit

Additional equipment

• Automation package (No. 4013):

  • Automatic adjustment of infeed fence and pressure zone

  • Electronic height adjustment for the top pressure beam
