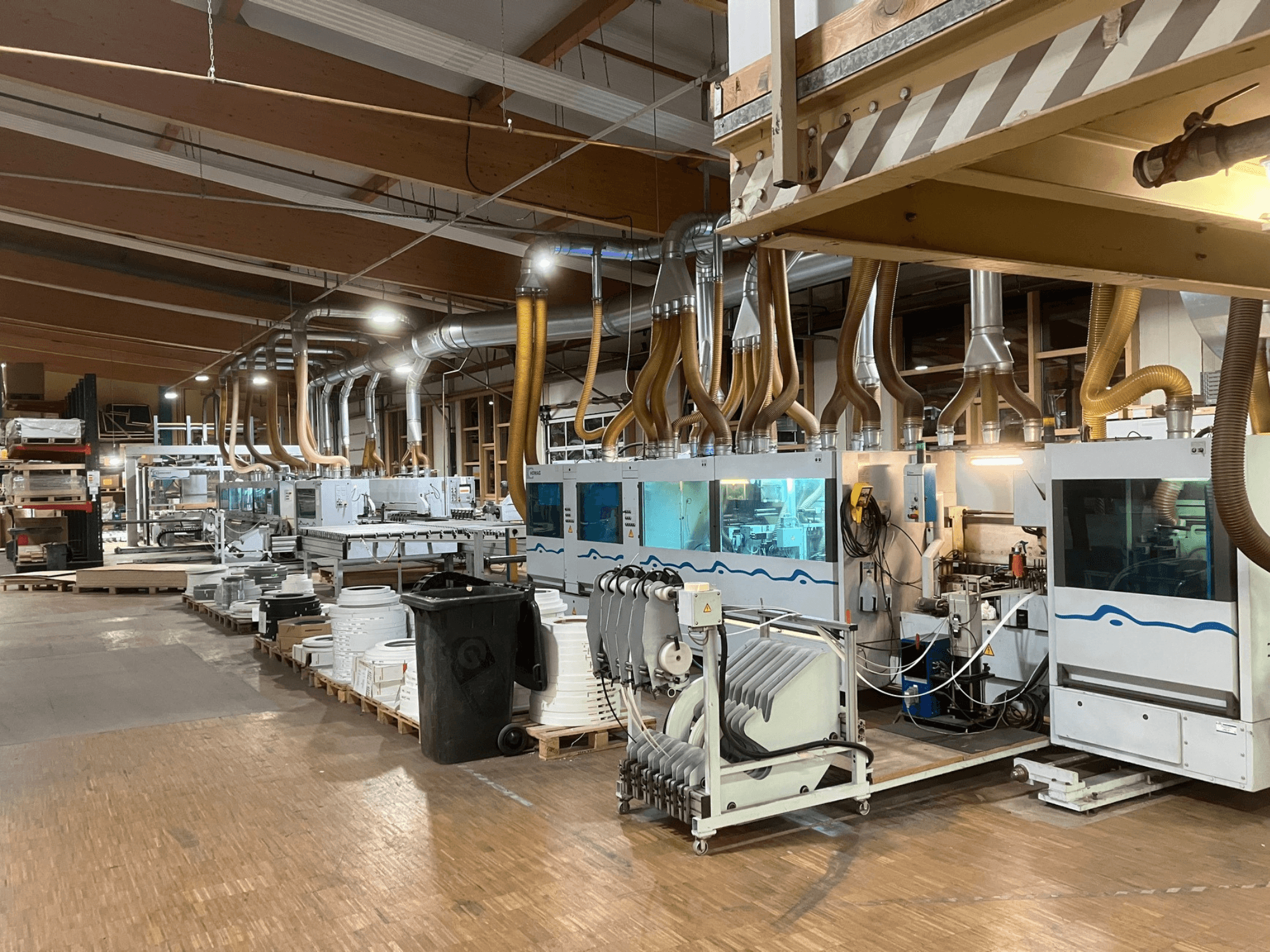

Double sided edgebander manufactured in 2004. This HOMAG KBZ KFR20 / KFR526 complete production line features a turning station and a Bargstedt stacker. It is designed for formatting, milling, seaming, grooving, and edging panels in a single work process, specifically for storage and partition wall elements. If you are looking to get high-quality edging capabilities, consider the HOMAG KBZ KFR20 / KFR526 machine we have for sale. Contact us for further details.
Overview
- brand: HOMAG
- year: 2004
- MODEL: KBZ KFR20 / KFR526
- application type: Edge Banding
- Location: Germany
- machine type: Double Sided Edgebander
- Available from: 01/07/2026
Technical Information - HOMAG KBZ KFR20 / KFR526
Dimensions
- Machine Height: 2600 mm
- Machine Length: 40000 mm
- Machine Width: 6800 mm
Additional Information
- Machine Type: Complete production line with turning station and Bargstedt stacker
- Components:
* M.01: OPTIMAT TBR100/30/12 (HOMAG)
* M.02: PROF. KFR20/16/A3/15 (HOMAG)
* M.03: OPTIMAT TDR310/30/12 (HOMAG)
* M.04: OPTIMAT KFR526/10/A3/35 (HOMAG)
* M.05: TFR560/S/R/24/21/3 (BARGSTEDT)
* M.06: PROF. TSP410/ER/35/12/S (BARGSTEDT)
- Length: 40m
- Width: 6.8m
- Height: 2.6m (with hoods/flaps open)
- Function: Panels are formatted, milled, seamed, grooved, and edged in a single work process; specially configured for the production of storage and partition wall elements
- Workpiece Length: min. 250 mm - max. 3,200 mm
- Workpiece Width: min. 250 mm - max. 1,350 mm
- Workpiece Thickness: min. 15 mm - max. 57 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
