➤ Used HOMAG KFL 526 / C For Sale | gindumac.com

Show in original language

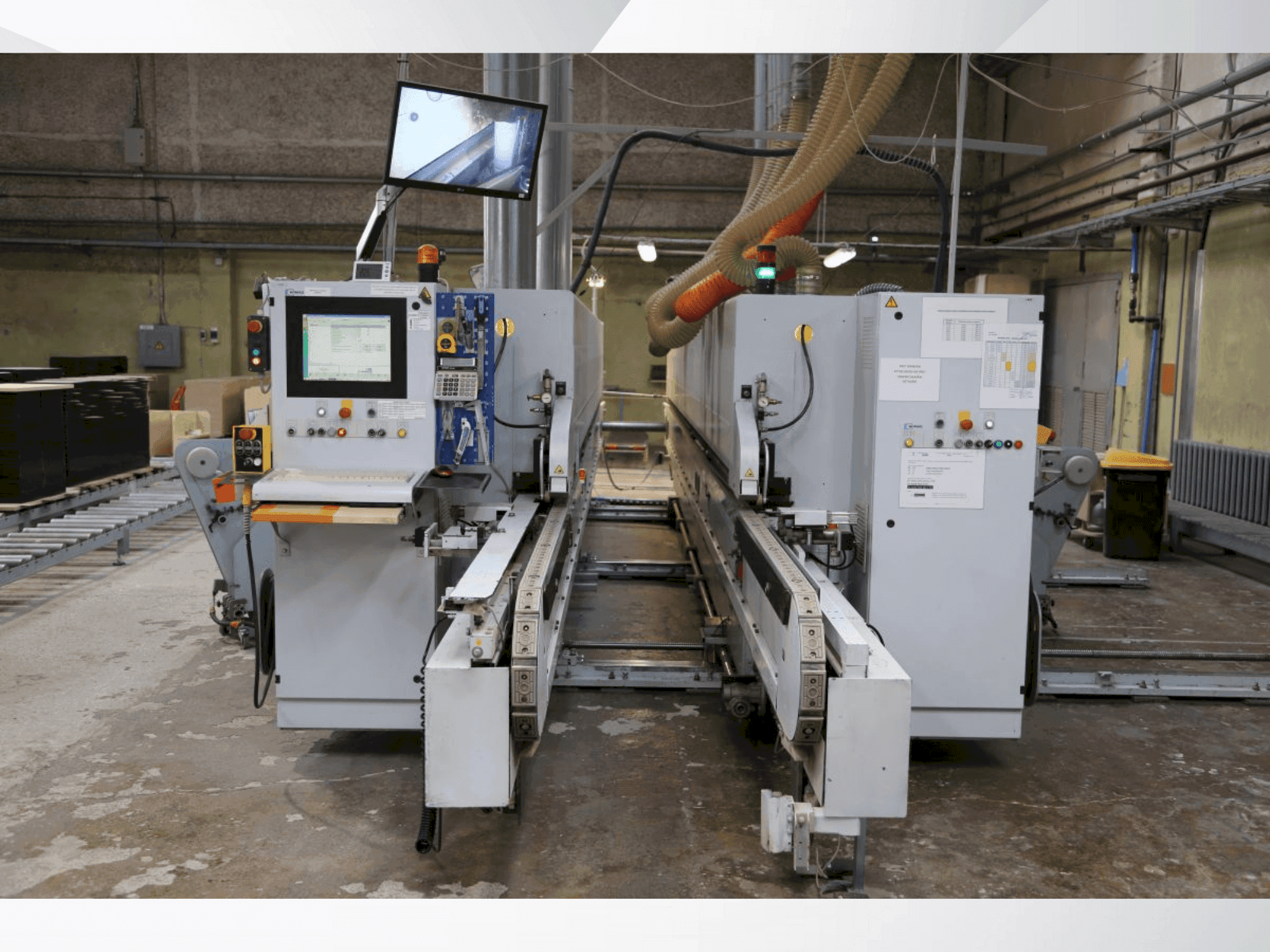

This HOMAG KFL 526 / C was manufactured in 2006. A robust double-sided edgebander, it handles workpiece thicknesses from 12 to 40 mm and sizes up to 2500 x 1200 mm. Features include a gluing unit, profile trimming, and a finish unit for precise edge finishing. Ideal for efficient edge banding with speeds up to 35 m/min. Contact us for more information about this machine.

Overview

brand: HOMAG
year: 2006
MODEL: KFL 526 / C
application type: Edge Banding
Location: Germany
machine type: Double Sided Edgebander
availability: Immediately

Technical Information - HOMAG KFL 526 / C

Additional Equipment

- Seperating agent spray device on top/bottom / Double Hogger Longitudinal/Cross: 6.6 kW with electropneumatic control / Gluing Unit A3 - 2 rolls / Profile Trimming Unit FF12 on top/bottom with motors at 12000 rpm / Finish Unit FA11 on top/bottom / Stepless stop cams with maximum cam projection of 25 mm / Standard Trimming Unit SF20 6.6 kW / Rough Trimming Unit 0.55 kW
- PUR Nordson Melting Station / Tool Set / Suction Tube

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece thickness: 12 - 40 mm / minimum workpiece size (lxw): 250 x 240 mm / maximum workpiece size (lxw): 2500 x 1200 mm / maximum workpiece weight: 50 kg
- - Roller material edge thickness: 0. 4 - 3 mm / maximum edge cross section (plastic): 135 mm² / maximum edge cross section (veneer): 100 mm² / maximum roller diameter: 830 mm
- - Longitudinal processing speed: up to 35 m/min for thin edge up to 0. 6 mm /up to 30 m/min for thick edge up to 3 mm
- - Cross processing speed: up to 30 m/min for panel sizing/ up to 20 m/min for edge processing
- - Minimum workpiece gap: 500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
