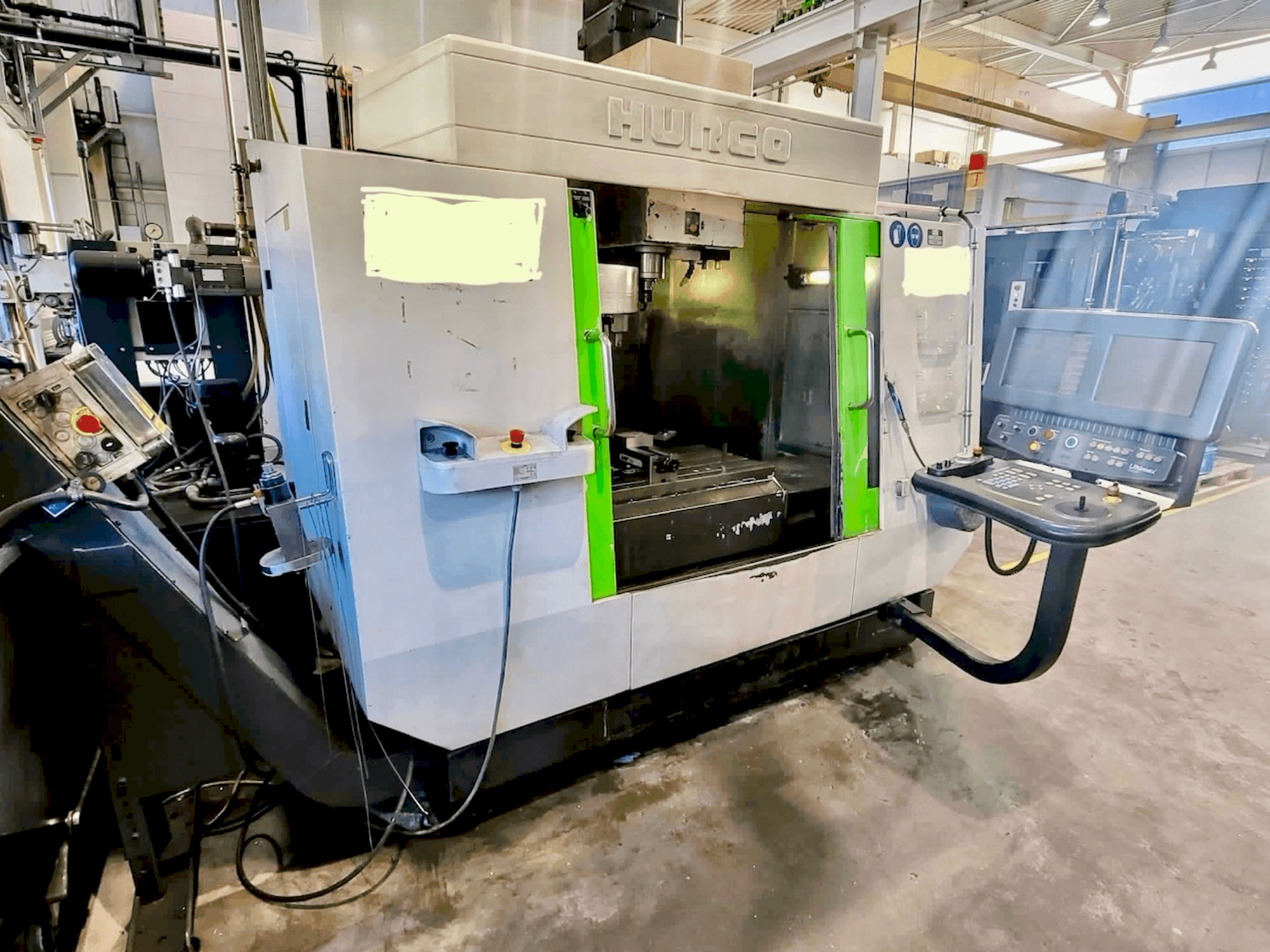

Hurco BMC4020 Vertical Machining center

Show in original language

This Hurco BMC4020 Vertical Machining center was manufactured in the year 1998 in Taiwan. It is equipped with a Hurco Ultimax control unit and has 3 axis.

Overview

brand: Hurco
year: 1998
MODEL: BCM4020
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Hurco

Technical Information - Hurco BCM4020

General Data

Measurements width: 2320 mm
Measurements depth: 3350 mm
Measurements height: 2670 mm
Machine weight: 5600 kg

Control Unit

Brand: Hurco
Model: Ultimax

Main drive

Spindle motor power: 15 kW
Number of axis: 3

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 610 mm

Workpiece

Workpiece weight: 682 kg

Table

Outer length: 1220 mm
Outer width: 510 mm

Tools

Max weight: 7 kg
Type of tool holder: ISO 40

Additional Information

Extra information

- Accessories: cooling lubricant tank, pumps for the external and internal pumps and pump for cooling lubricant recirculation Length of the worktable: 1220 mm Width of the worktable: 510 mm Travel of the X-axis: 1020 mm Travel of the Y-axis: 510 mm Travel of the Z-axis: 610 mm Spindle power: 15 kW Maximum workpiece weight: 682 kg Max. Tool weight: 7 kg Machine height: 2670 mm Machine length: 3350 mm Machine width: 2320 mm Machine weight: 5600 kg Control system: Hurco Ultimax Tool holder: ISO40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
