Hurco DCX 22Ti

Photo Gallery

Hurco - DCX 22TiGB-MIL-HUR-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hurco DCX 22Ti Milling

Show in original language

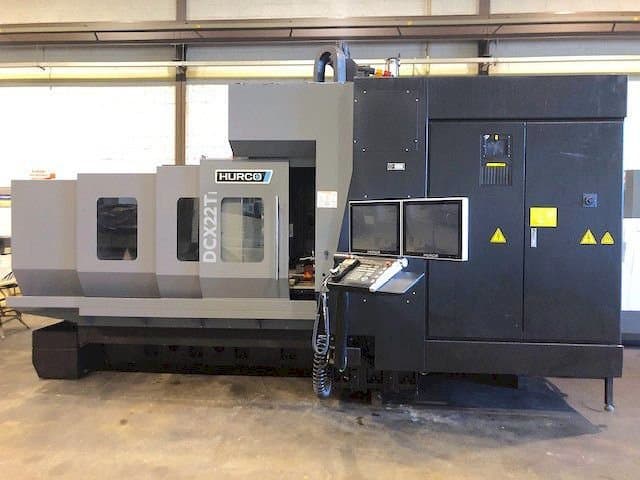

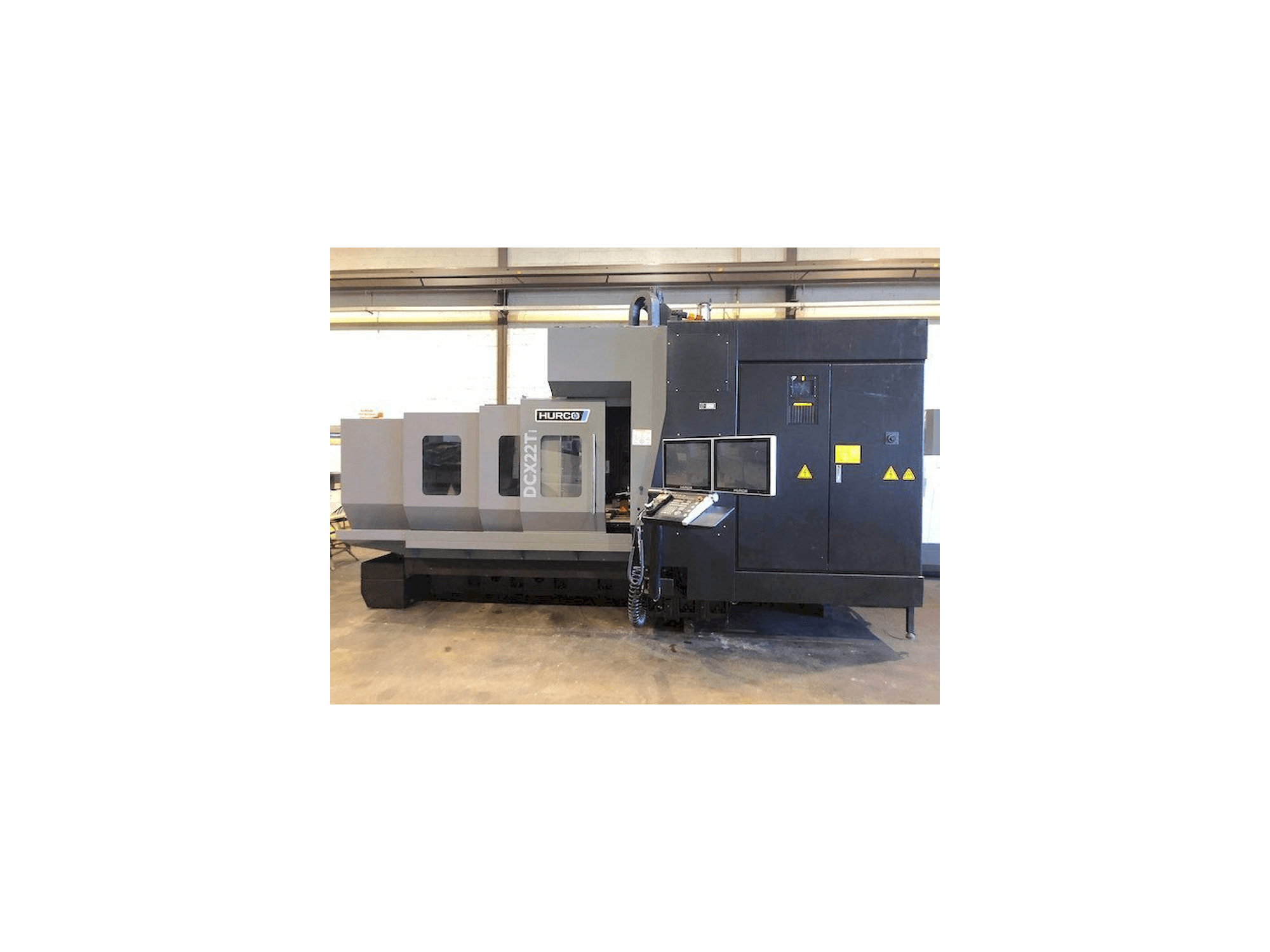

This Hurco DCX 22Ti Vertical Machining Center was manufactured in 2017. It has 5916 working hours, of which 2211 are spindle hours. It is equipped with a Hurco Control unit and can work with a spindle speed up to 12000 rpm. This 3-axis machine incorporates a swarf conveyor and a spindle coolant. It is in very good conditions.

Overview

brand: Hurco
year: 2017
MODEL: DCX 22Ti
production hours: 5916
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HURCO

Technical Information - Hurco DCX 22Ti

Control Unit

Control Brand: HURCO

Dimensions

Machine Depth: 6078 mm
Machine Height: 3900 mm
Machine Weight: 20000 kg
Table Length: 2100 mm
Table Width: 1600 mm

Movement

Number of Axes: 3
X-axis Travel: 2200 mm
Y-axis Travel: 1700 mm
Z-axis Travel: 750 mm

Technical Specification

Max. Tool Weight: 7 kg
Number of Tools: 40
Spindle Speed: 12000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Simultaneous axis operation
Distance between columns: 1750 mm
Spindle nose to table: 152 – 902 mm
Spindle motor power: 18 kw
Rapid feedrates x/y/z 32/32/24 m/min
Thru spindle coolant
Spindle probe
Swarf conveyor
3-axis portal machining center

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
