Hurco HTX 500
Hurco - HTX 500
2010
20,000 €
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used HURCO HTX 500 For sale | gindumac.com

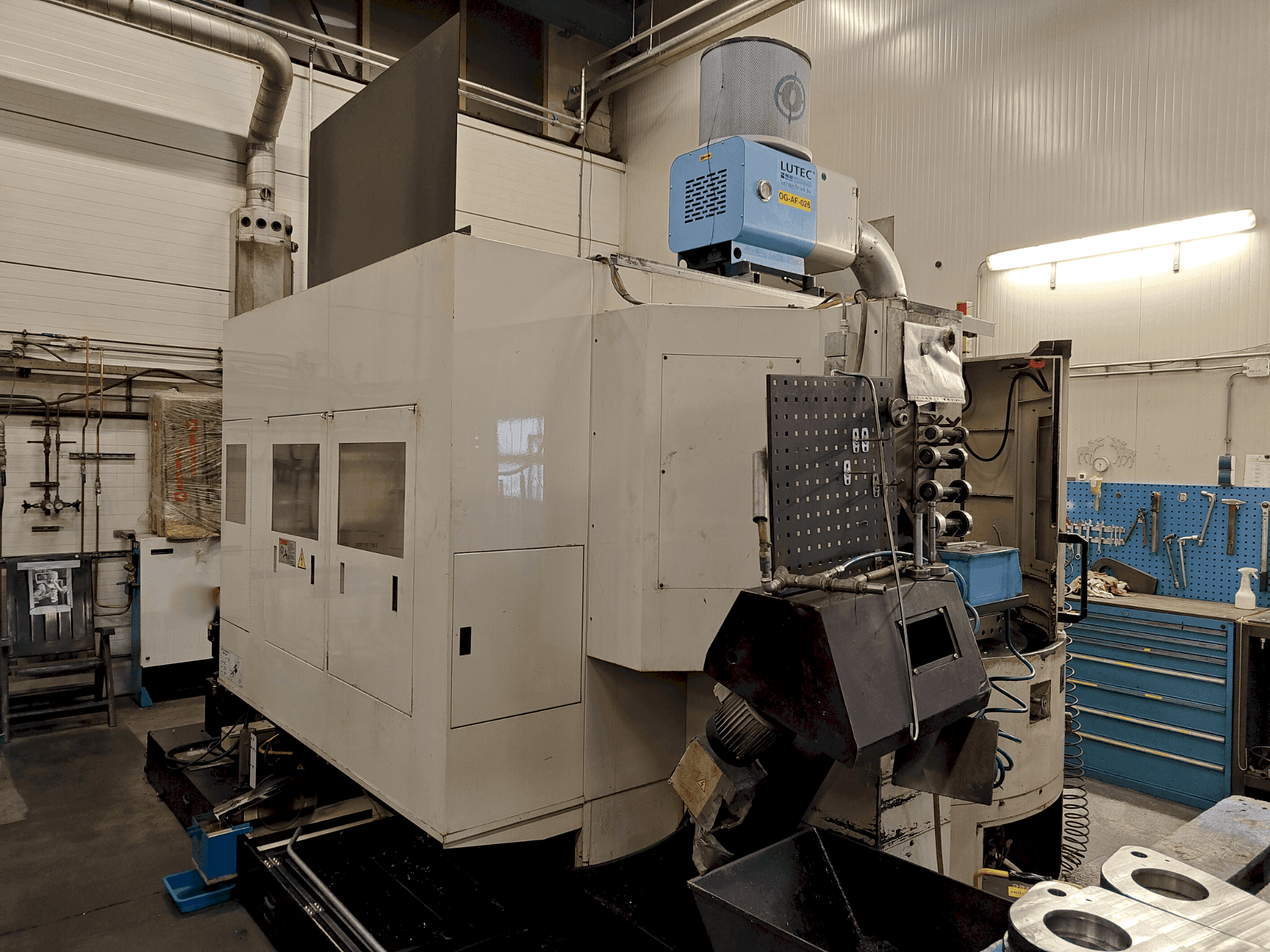

This 4-axis HURCO HTX 500 horizontal machining center was manufactured in 2010, featuring a large work cube with 28” x 24” x 24” travels and a dual pallet system for enhanced productivity. It boasts a high-speed 12,000 RPM spindle, a powerful 24 HP spindle motor, and rapid traverse rates up to 1,260 ipm. Ideal for rigorous milling tasks, the HURCO HTX 500 machine we have for sale represents a significant asset for any machining facility. Reach out for more information.
Overview
- brand: Hurco
- year: 2010
- MODEL: HTX 500
- application type: Milling
- Location: Netherlands
- machine type: Machining centers (horizontal)
- availability: From March 2025
- control unit brand: HURCO
- GINDUMAC ID: NL-MIL-HUR-2010-00001
Technical Information
General Data
- Measurements width: 4300 MM
- Measurements depth: 2542 MM
- Measurements height: 2810 MM
- Machine weight: 13000 KG
Control Unit
- Brand: HURCO
- Model: UltiMax4
Main drive
- Number of spindles: 1
- Spindle speed range: 12,000 1/MIN
- Spindle motor power: 24 HP
- Tool taper: CAT 40
Movement
- X-AXIS Movement: 710 MM
- X-AXIS Rapid traverse: 1,260 ipm
- Y-AXIS Movement: 600 MM
- Y-AXIS Rapid traverse: 1,260 ipm
- Z-AXIS Movement: 600 MM
- Z-AXIS Rapid traverse: 1,260 ipm
- AXIS 1 Movement: 360 °
Workpiece
- Workpiece weight: Maximum 500 kg
Table
- Outer length: 500 mm
- Outer width: 500 mm
- Min distance between vertical spindle and table: 150 mm
- Max distance between vertical spindle and table: 765 mm
Tools
- Slots in storage: 60
- Max tool diameter: 80 mm
- Max tool length: 350 mm
Additional Equipment
- - Dual Pallet System
- - Dual 12” LCD Color Monitors
- - Conversational and NC (G-Code) programming
- - Comprehensive cooling and lubrication systems
Additional Information
- Technical Machine Benefits:
- - Precision and repeatability with positioning accuracy of +/- 0. 005 mm and repeatability of +/- 0. 002 mm
- - Voltage required: 208-240 vac / 60hz
- - Power rating: 60 kva
- - Air requirements: 5 cfm @ 80-100 psi
- - Full enclosure splash guards and safety features compliant with ce, ul, csa standards
- - Extensive diagnostics and on-screen help features for ease of use
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
