➤ Used Okuma MB 5000H For Sale | gindumac.com

Show in original language

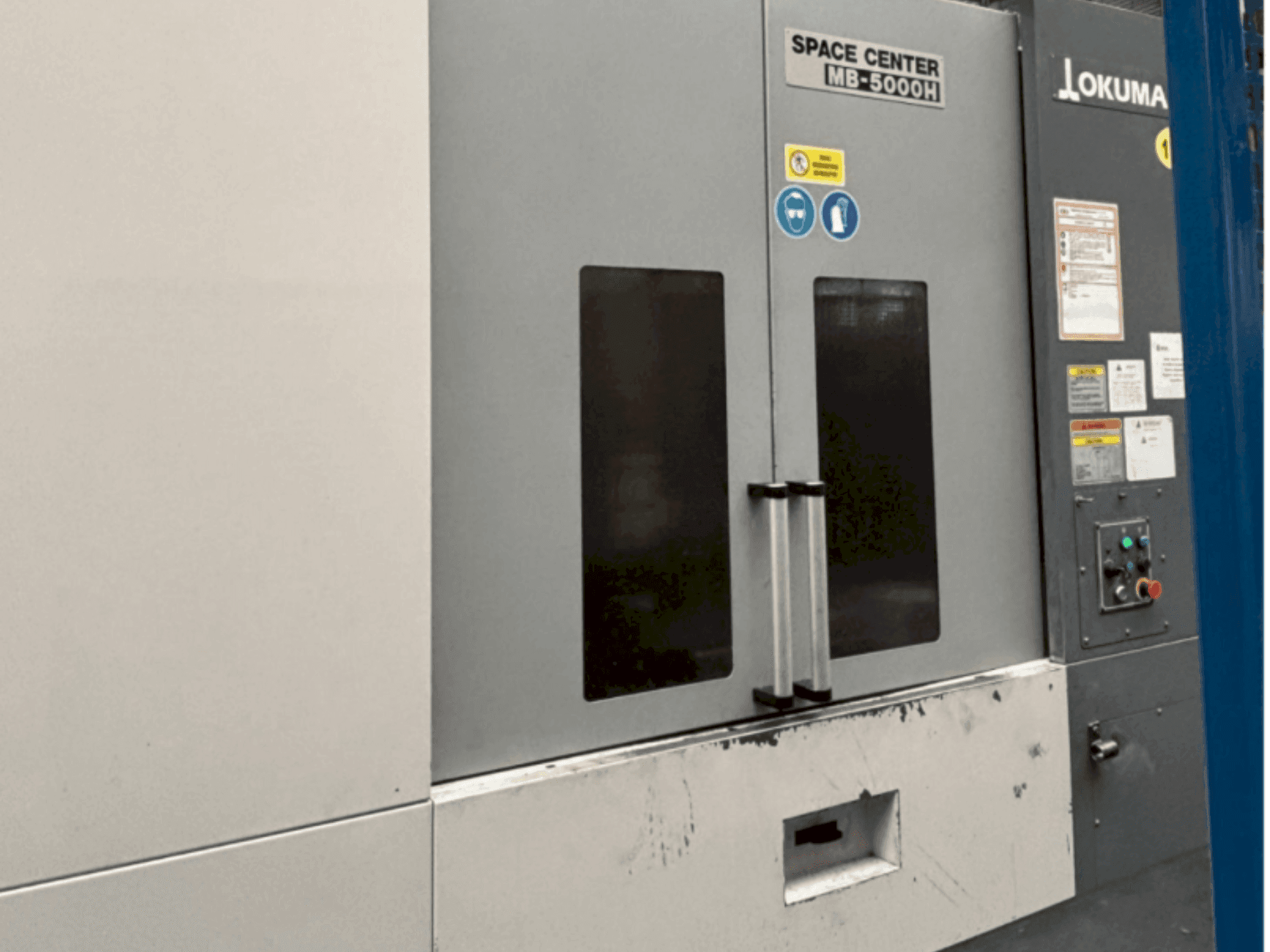

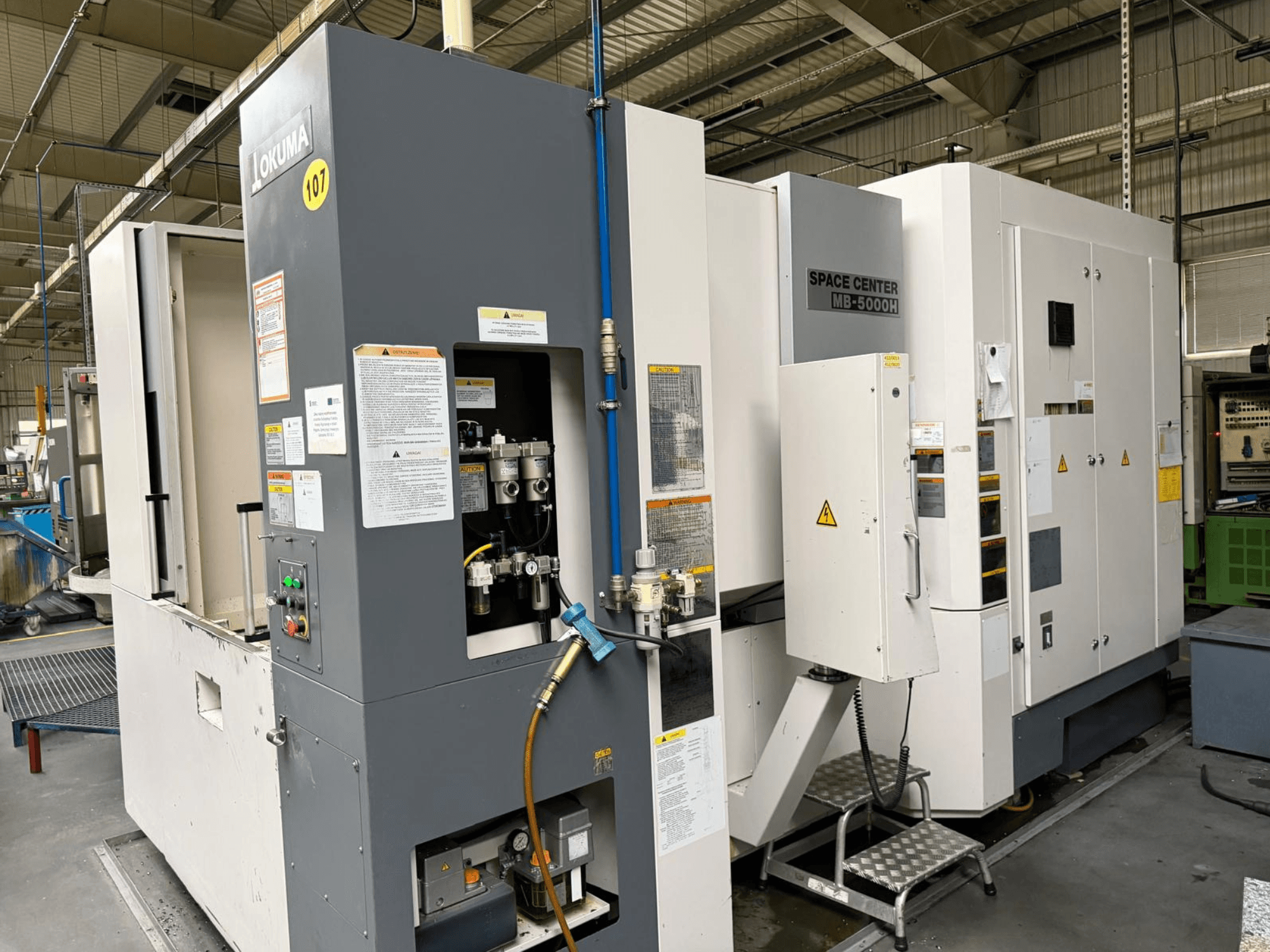

This 4-axis Okuma MB 5000H was manufactured in 2010. It features a robust 500 × 500 mm pallet, capable of handling a maximum load of 500 kg, and offers a comprehensive range of movements with 760 mm travel in X, Y, and Z axes. Equipped with a high-speed spindle up to 15,000 min⁻¹ and a 64-tool magazine, this horizontal machining centre is ideal for complex machining tasks. Contact us for more information about this machine.

Overview

brand: Okuma
year: 2010
MODEL: MB 5000H
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre

Technical Information - Okuma MB 5000H

General Data

Measurements height: 2864 mm
Machine weight: 11500 kg

Main drive

Spindle speed range: 50–15,000 1/MIN
Tool taper: SK40
Number of axis: 4

Movement

X-AXIS Movement: 760 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 760 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 760 mm
Z-AXIS Rapid traverse: 60 m/min

Tools

Max weight: 10 kg
Max tool diameter: 70 mm / 150 mm
Max tool length: 300–450 mm
Type of tool holder: BT40

Additional Information

Spindle center to pallet top: 50–810 mm
Spindle nose to pallet center: 135–895 mm
Table/pallet: 500 × 500 mm; max load 500 kg; indexing 1°
Workpiece capacity: max Ø800 × 1,000 mm
cutting feed 1–60,000 mm/min; table indexing motor 3.0 kW
Tooling: tool shank MAS403/BT40; pull stud MAS 2; magazine 64 tools; random selection
floor space 2,700 × 4,710 mm

Additional equipment

Chip conveyor
Through-spindle coolant (CTS)
Tool presetting at table edge
Provision for Renishaw probe
Shower/washdown system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
