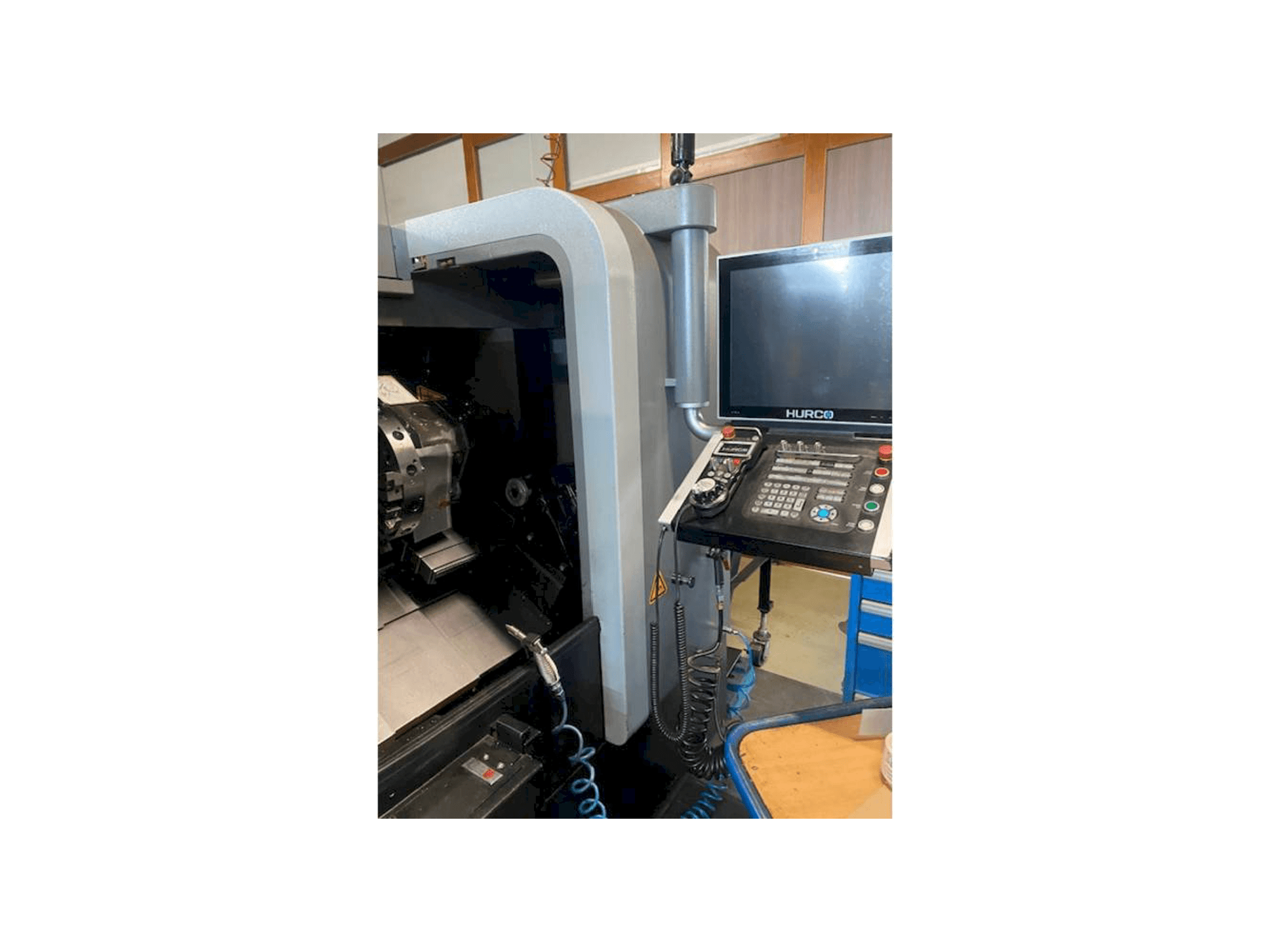

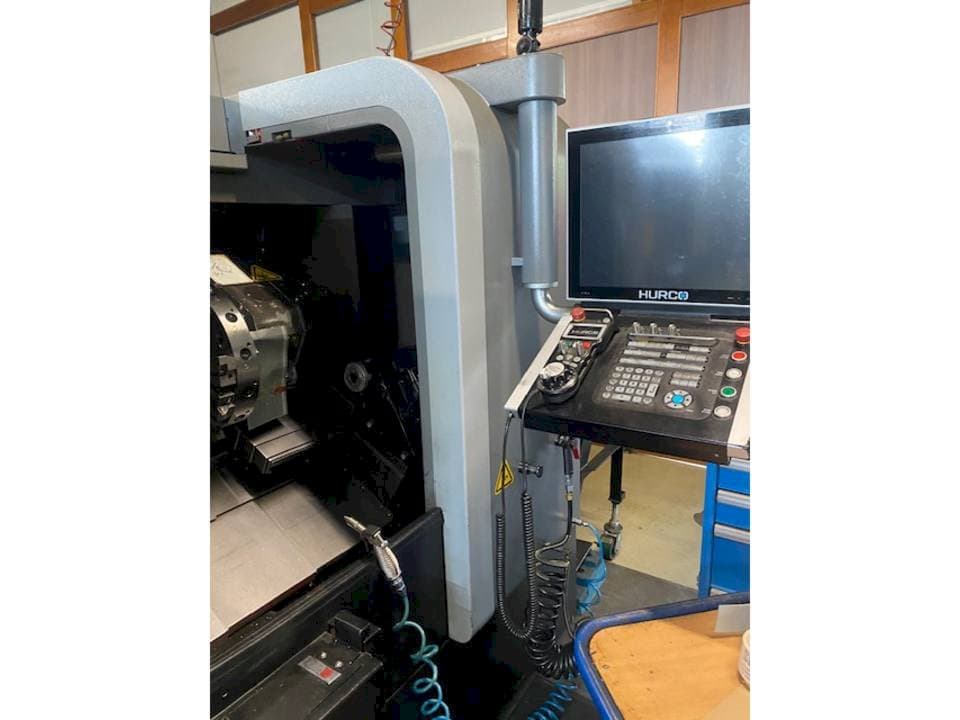

This Hurco TM8i Lathe was manufactured in the year 2018 and has 7006 production hours, of which 1696 spindle hours. It is equipped with a HURCO control unit. The machine has a spindle speed of 4000 rpm.
Overview
- brand: Hurco
- year: 2018
- MODEL: TM8i
- application type: Turning
- Location: Slovenia
- machine type: Horizontal Turning Machine
- availability: Immediately
- control unit brand: HURCO
Technical Information - Hurco TM8i
General Data
- Measurements width: 4489 mm
- Measurements depth: 2729 mm
- Measurements height: 2193 mm
- Machine weight: 4050 kg
Control Unit
- Brand: HURCO
Main drive
- Spindle speed range: 4000 1/MIN
- Spindle motor power: 23 kW
Movement
- X-AXIS Movement: 203 mm
- X-AXIS Rapid traverse: 30 m/min
- Z-AXIS Movement: 550 mm
- Z-AXIS Rapid traverse: 30 m/min
Additional Information
- Technical Machine Benefits:
- - Turning diameter max. (mm): 256
- - Swing over bed diameter (mm): 525
- - Swing over cross slide diameter (mm): 300
- - Spindle torque max: 221 nm
- - Chuck diameter: 210 mm
- - Draw tube diameter : 64. 5 mm
- - Type: vdi 30
- - Stations: 12
- - Boring bar diameter max. : 32 mm
- - Tool shank width : 19 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
