- ➤ Used Hurco TMX 10 MYSI For Sale | gindumac.com

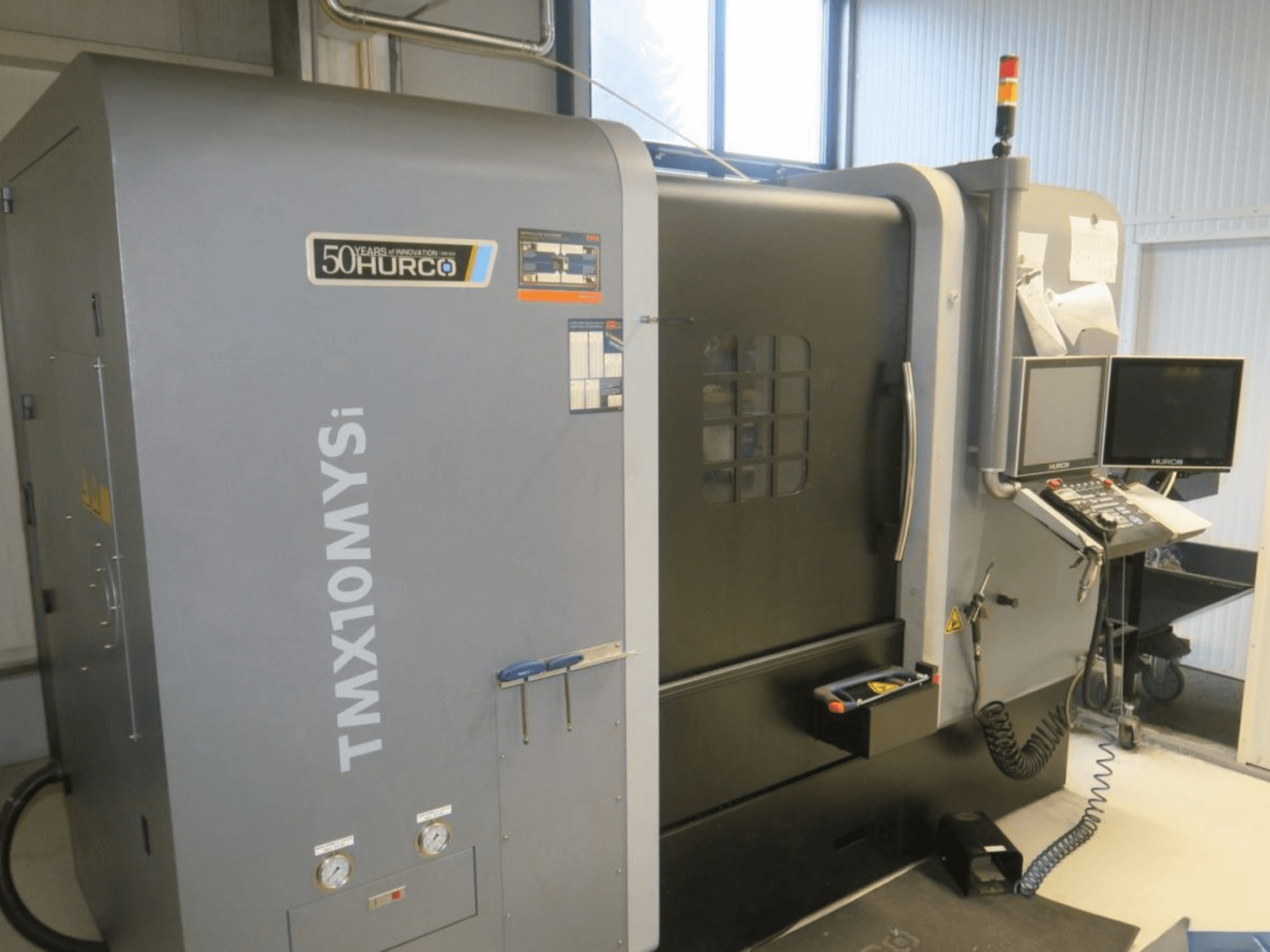

This 4-axis Hurco TMX 10 MYSI was manufactured in 2018, featuring a robust HURCO CNC control system. It offers a turning diameter up to 560 mm and a turning length of 600 mm. The machine includes a 12-station tool turret and a spindle bore of 81 mm. Ideal for complex mill-turn operations, consider the opportunity to buy this Hurco TMX 10 MYSI mill-turn centre. Contact us for more information about this machine.
Overview
- brand: Hurco
- year: 2018
- MODEL: TMX 10 MYSI
- application type: Milling
- Location: Germany
- machine type: Mill-Turn Centre
- control unit brand: HURCO
Technical Information - Hurco TMX 10 MYSI
Control Unit
- Control Brand: HURCO
- Control Model: CNC
Dimensions
- Machine Height: 3000 mm
- Machine Length: 5500 mm
- Machine Weight: 8000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 220 mm
- Y-axis Travel: 55 mm
- Z-axis Travel: 670 mm
Additional Information
Turning capacity:
Turning diameter: 375 mm / max. 560 mm
Turning length: 600 mm
Spindle bore (bar capacity): 81 mm
Axis travels:
W-axis (spindle longitudinal travel): 740 mm
Tool system:
Turret: 12-station tool turret
Tool interface: 12 × VDI 40
Power & utilities: Total connected load 70 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
