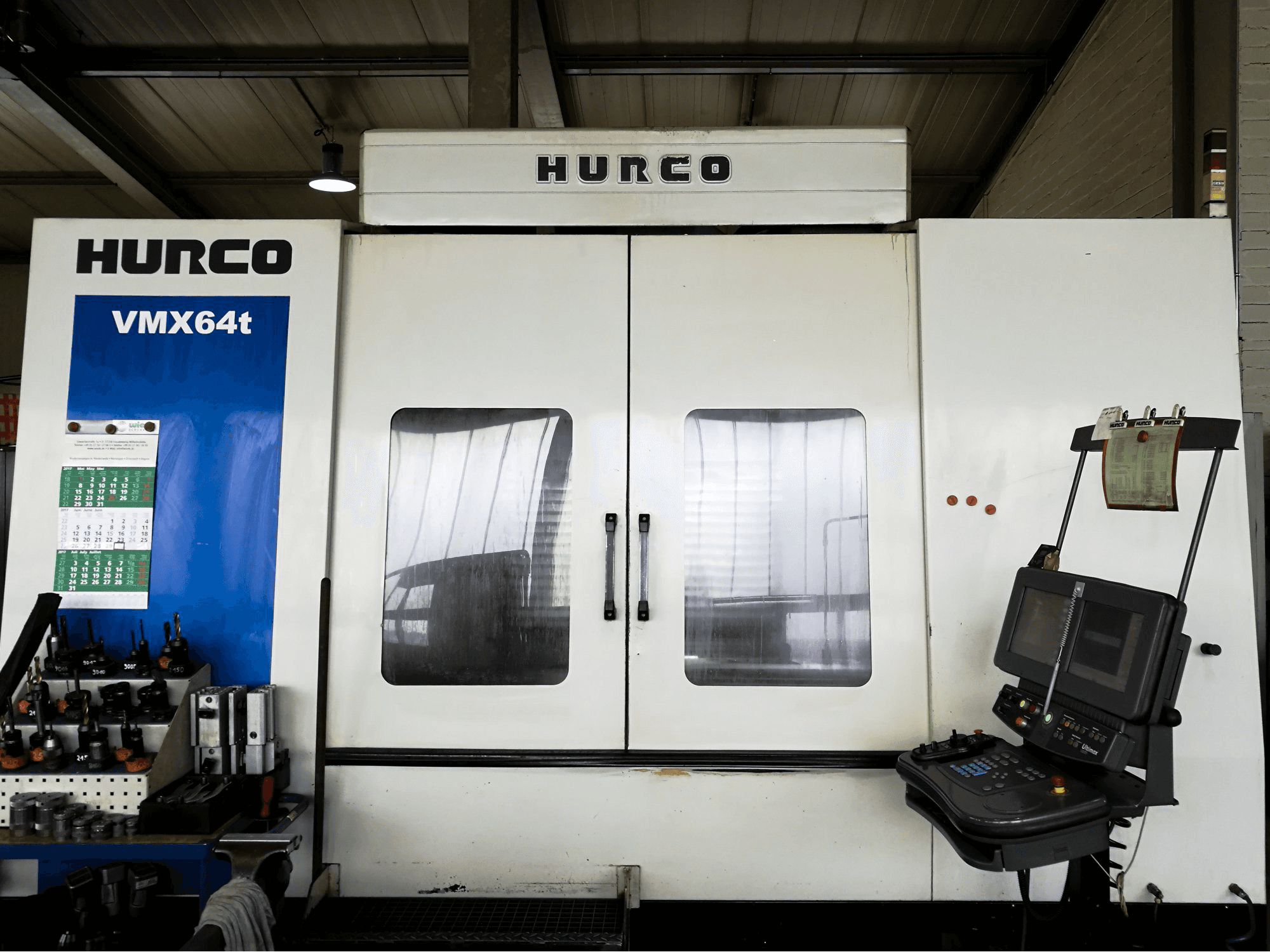

This Hurco VMX64/40T Machining Center from 2007 has a production history of 20800 working hours. It is operated through a Yaskawa Ultimax Control unit equipped with USB / Ethernet interface and remote control. This machine stands out through the heavy table load it allows (up to 1350 kg) and its wide axis movement (1625, 860 and 760 mm on the X, Y and Z Axes respectively). As additional equipment this machine includes a 40x Automatic Tool Changer.
Overview
- brand: Hurco
- year: 2007
- MODEL: VMX64/40T
- production hours: 20800
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Yaskawa
- GINDUMAC ID: DE-MIL-HUR-2007-00001
Technical Information
General Data
- Measurements width: 4500 mm
- Measurements depth: 2800 mm
- Measurements height: 3300 mm
- Machine weight: 15000 kg
Control Unit
- Brand: Yaskawa
- Model: Ultimax
- Interface: USB, Ethernet
- Remote control: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/min
- Spindle motor power: 15 kW
- Tool taper: ISO 40
Movement
- X-AXIS Movement: 1625 mm
- X-AXIS Backlash: 0.047
- Y-AXIS Movement: 860 mm
- Y-AXIS Backlash: 0.038
- Z-AXIS Movement: 760 mm
Workpiece
- Workpiece weight: 1350 kg
Table
- Outer length: 1675 mm
- Outer width: 890 mm
- TSlots size: 18 mm
- Number of tslots: 7
- Distance between: 125 mm
Tools
- Slots in storage: 40
- Max weight: 7 kg
- Max tool diameter: 81/120 mm
- Max tool length: 300 mm
Media
- Main electronic connection: 3 x 380 V / 50 Hz
- Power consumption: 38 kVA
- Air pressure: 6 bar
- Chip conveyor: Yes
- Internal cooling: Yes
- Cooling pressure: 20 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
