Huron - kx10DE-MIL-HUR-2012-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools

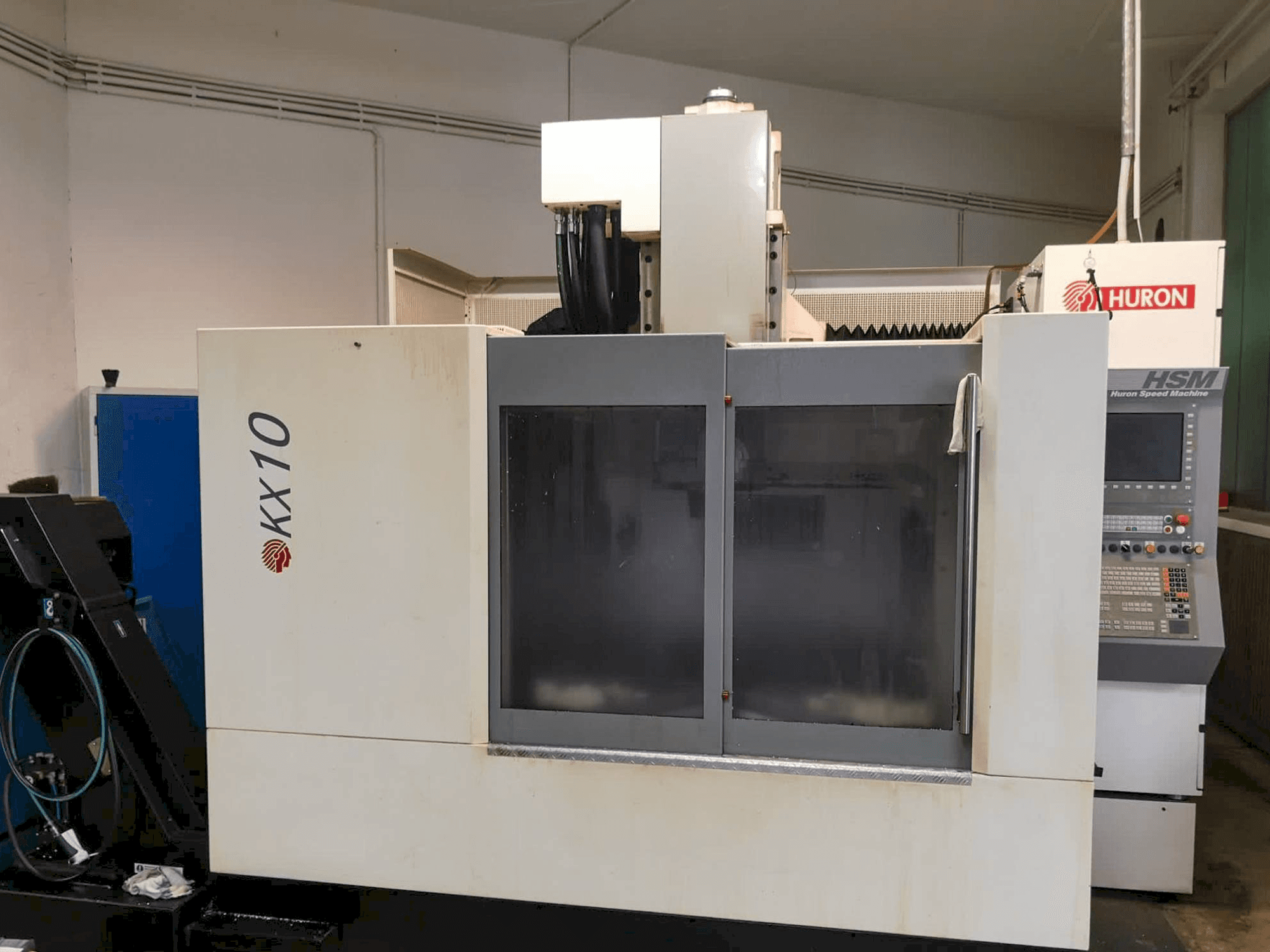

- Huron kx10 Vertical Machining Center
This Huron kx10 Vertical Machining Center was manufactured in 2012. It shows a production record of 17907 hours. This 3 axis machine is operated through a HEIDENHAIN iTNC530 control unit. The machine works with a spindle speed range between 100 - 18000 rpm. The chip cover in the table front and rear was redone for around 8,500€ about 10 months ago.
Overview
- brand: Huron
- year: 2012
- MODEL: kx10
- production hours: 17907
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - Huron kx10
Control Unit
- Model: iTNC530
- Brand: HEIDENHAIN
Main drive
- Spindle speed range: 100 - 18000 1/MIN
- Spindle motor power: 25 kW
- Tool taper: HSK 63 A
- Number of axis: 3
Movement
- X-AXIS Movement: 1000 mm
- X-AXIS Rapid traverse: 30000 mm/min
- Y-AXIS Movement: 700 mm
- Y-AXIS Rapid traverse: 30000 mm/min
- Z-AXIS Movement: 550 mm
- Z-AXIS Rapid traverse: 18000 mm/min
Table
- Outer length: 1250 mm
- Outer width: 700 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Full fairing
- - Tool changer: 20 stations
- - Lp cooling through 3 nozzles: -30 l/mn
- - Flushing gun
- - Ethernet interface (cabling, installation and configuration of the network and the additional software)
- - Instruction manual in german on cd
- - Complete tool changer reworked by huron
- Qualitative Machine Benefits:
- - In 2020 the front and rear chip telescopic covers were renewed
- - The spindle has a stroke and has to be replaced over the long term
- - The machine runs perfectly
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
