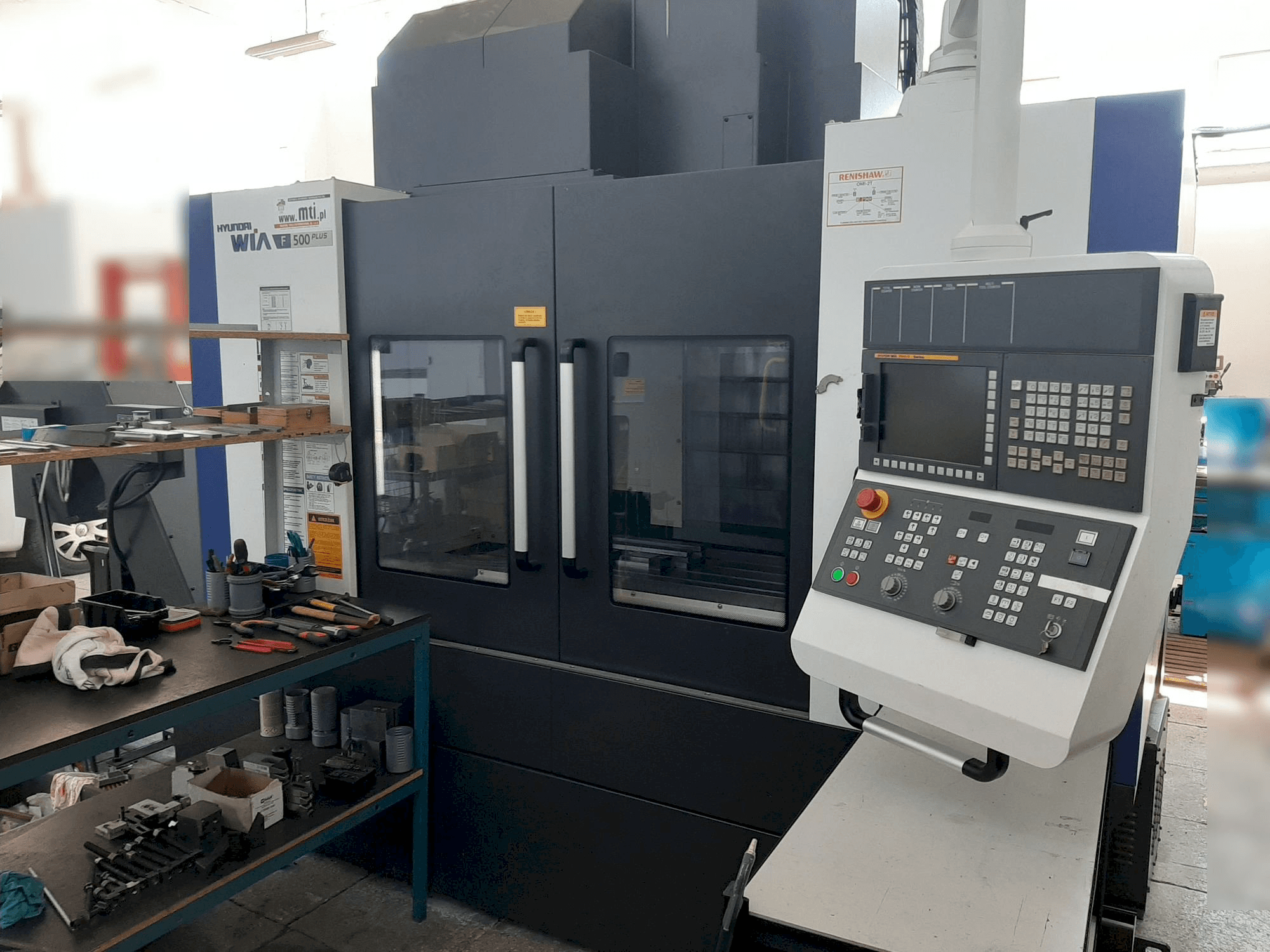

Front view of Hyundai Wia F500 PLUS machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Hyundai Wia F500 PLUS

Photo Gallery

Hyundai Wia - F500 PLUSPL-MIL-HYU-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hyundai Wia F500 PLUS

Show in original language

This Hyundai Wia F500 PLUS Vertical Machining Center was built in Korea in the year 2017. It has been working for only approximately 500 hours. This 3 axis machine is operated through a HYUNDAI WIA FANUC i Series control unit. It can work with a spindle speed up to 12000 rpm. This machine includes several tools and accesories as a Renishaw probe for parts. It is almost new and fully operational with its full documentation available.

Overview

brand: Hyundai Wia
year: 2017
MODEL: F500 PLUS
production hours: 500
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Hyundai Wia F500 PLUS

General Data

Measurements width: 2910 MM
Measurements depth: 2690 MM
Measurements height: 2815 mm
Machine weight: 7500 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1060 MM
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 510 MM
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 635 mm
Z-AXIS Rapid traverse: 30 m/min

Table

Outer length: 1200 MM
Outer width: 500 mm
Table load: 800 kg

Turret

Number of tool slots: 30 pcs

Tools

Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 300 mm
Type of tool holder: BBT40

Media

Main electronic connection: 380 V / 50Hz
Power consumption: 23 KVA
Chip conveyor: Yes

Additional Information

Additional equipment

30 pcs of holders
1 pc hydraulic holder Schunk
1 pc hydraulic vice
1 pc tool probe
1 PC Renishaw probe for parts

Machine Benefits

Qualitative Machine Benefits

The machine is almost new and fully operational.
Today it is out of the production.
Full documentation available.

Technical Machine Benefits

Automatic tool changer (atc)
Tool change time (tool-tool): 1. 3 sek

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
