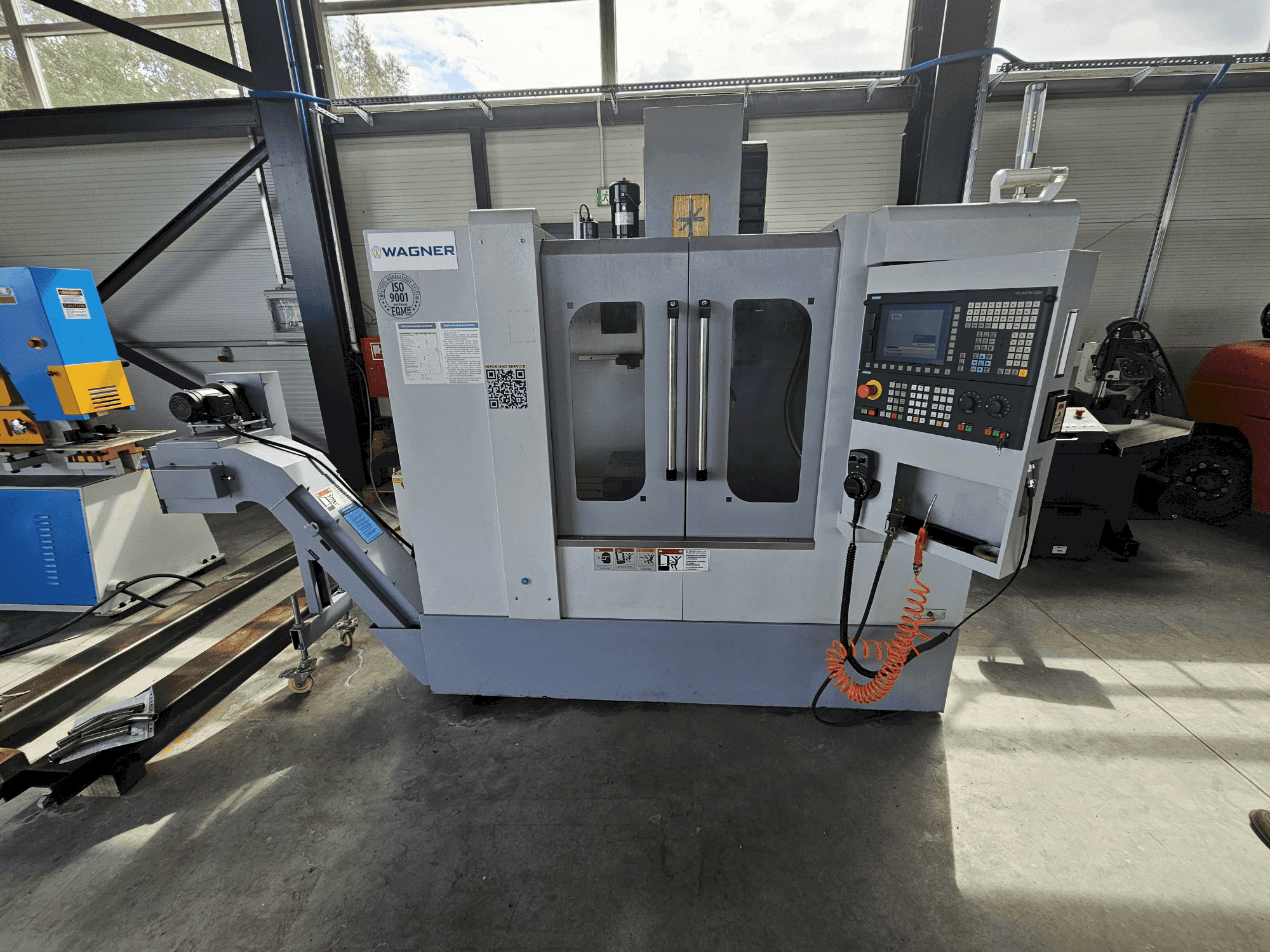

This 3-axis WAGNER WMC 600 L was manufactured in 2021, featuring a robust cast-iron frame and linear guides on all axes. It includes a Siemens 828 Basic ShopMill, an automatic double-arm tool changer with 16 stations, and a complete coolant system. The spindle supports speeds up to 10,000 rpm with a power of 11 kW. If you are looking to get high-quality milling capabilities consider the WAGNER WMC 600 L machine we have for sale. Contact us for more information.
Overview
- brand: WAGNER
- year: 2021
- MODEL: WMC 600 L
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - WAGNER WMC 600 L
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 828D
Dimensions
- Machine Depth: 2100 mm
- Machine Height: 2240 mm
- Machine Weight: 3500 kg
Movement
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 450 mm
Technical Specification
- Spindle Speed: 10000 RPM
- Taper Size: SK 40
Additional Information
Additional equipment
- Rigid cast-iron frame construction
- Linear guides on all three axes
- Automatic double-arm tool changer (16 stations)
- Complete coolant system
- Central automatic lubrication
- Air blast system for spindle cleaning
- Machine enclosure with doors
- Machine and signal lights
- Documentation in English
- CE-certified
Machine Benefits
Qualitative Machine Benefits
- Machine is in excellent condition.
Technical Machine Benefits
- Spindle motor power (siemens s6 40%): 11 kw spindle motor power (siemens s1 100%): 5. 5 kw
- Tool magazine capacity: 16 tools
- Tool holder: din 69871 a sk 40
- Maximum tool diameter: 89 mm
- Maximum tool weight: 7 kg
- Tool change time: 2 seconds
- Chip-to-chip time: 7 seconds
- Table clamping surface: 800 x 400 mm
- Table load capacity: 300 kg
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
