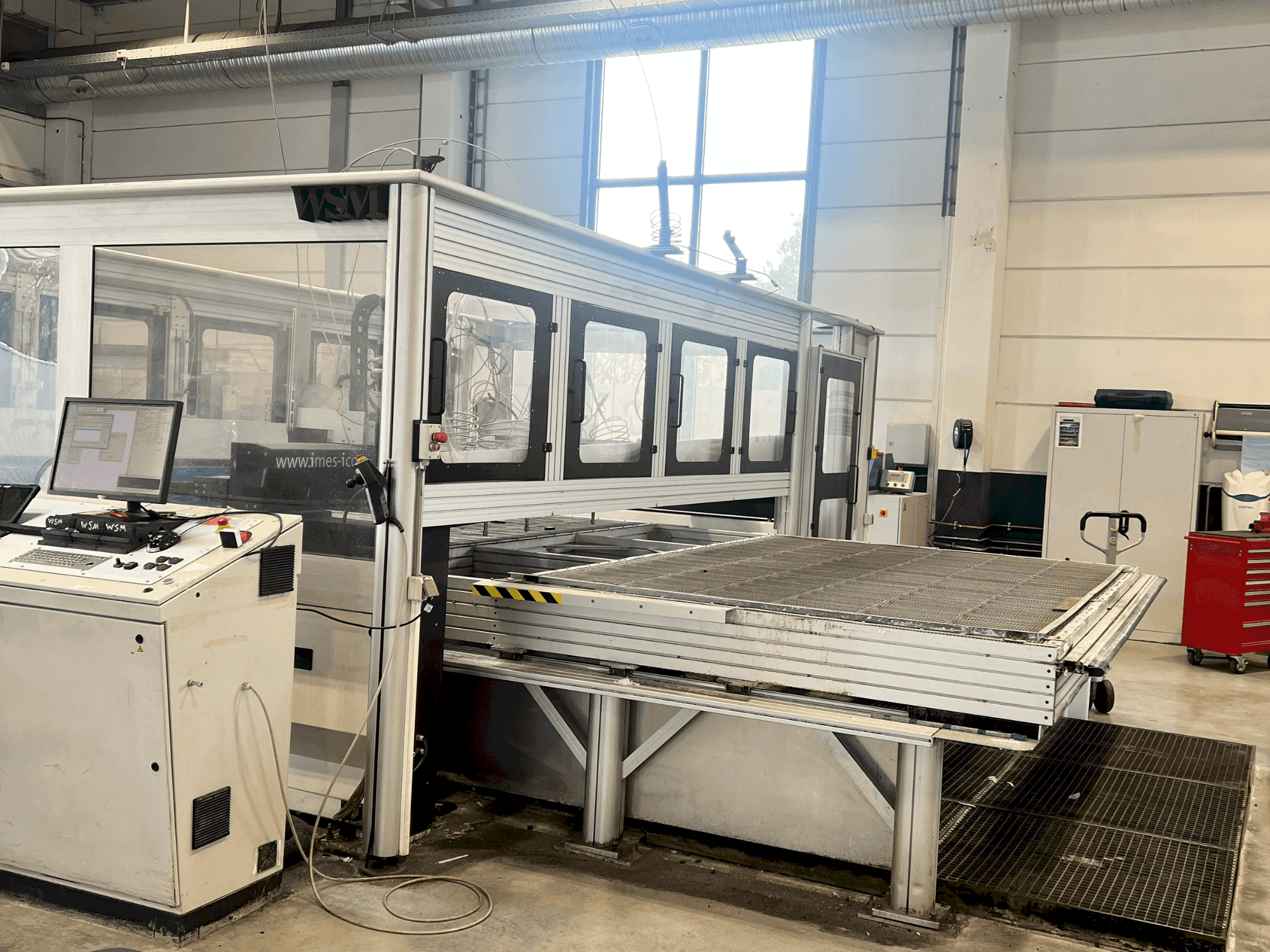

Imes-Icore - CUT matic WJ 3020DE-CUT-IME-2014-00001

Additional Equipment

• - Table Protected with Plexiglas Panels and Lift Doors
• - Equipped with Water Deflectors and Baffles in Tank

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - High precision and accuracy in cutting capabilities
  • - High precision and accuracy in cutting capabilities
  • - Comprehensive control with advanced software for better handling
  • - Highly dynamic linear drives in x and y
  • - Linear drives mounted on granite bearings in y
  • - Backlash-free drives with interference-free can bus communication
  • - 5 manually movable mounts for allfi pure water cutting heads
  • - Motorized shuttle table with accuracy of 0. 1 mm/m
  • - Maximum table drive speed: 8000 mm/min

Extra information

• - Workpiece Capable of Standard Cuts with Dimensional Accuracy of +/-0.1 mm Rinsing Nozzles for Tank Cleaning Table Motorized in the Y Direction for Loading and Cutting Simultaneously Protected by Safety Mats and a Traveling Ripcord Cutting Machine Accuracy: Positioning Accuracy: +/-0.03 mm/m Repeat Accuracy: +/-0.01 mm Dimensional Accuracy: +/-0.1 mm Maximum Speed (X,Y): 30000 mm/min Surface Roughness: Rz 20-50
