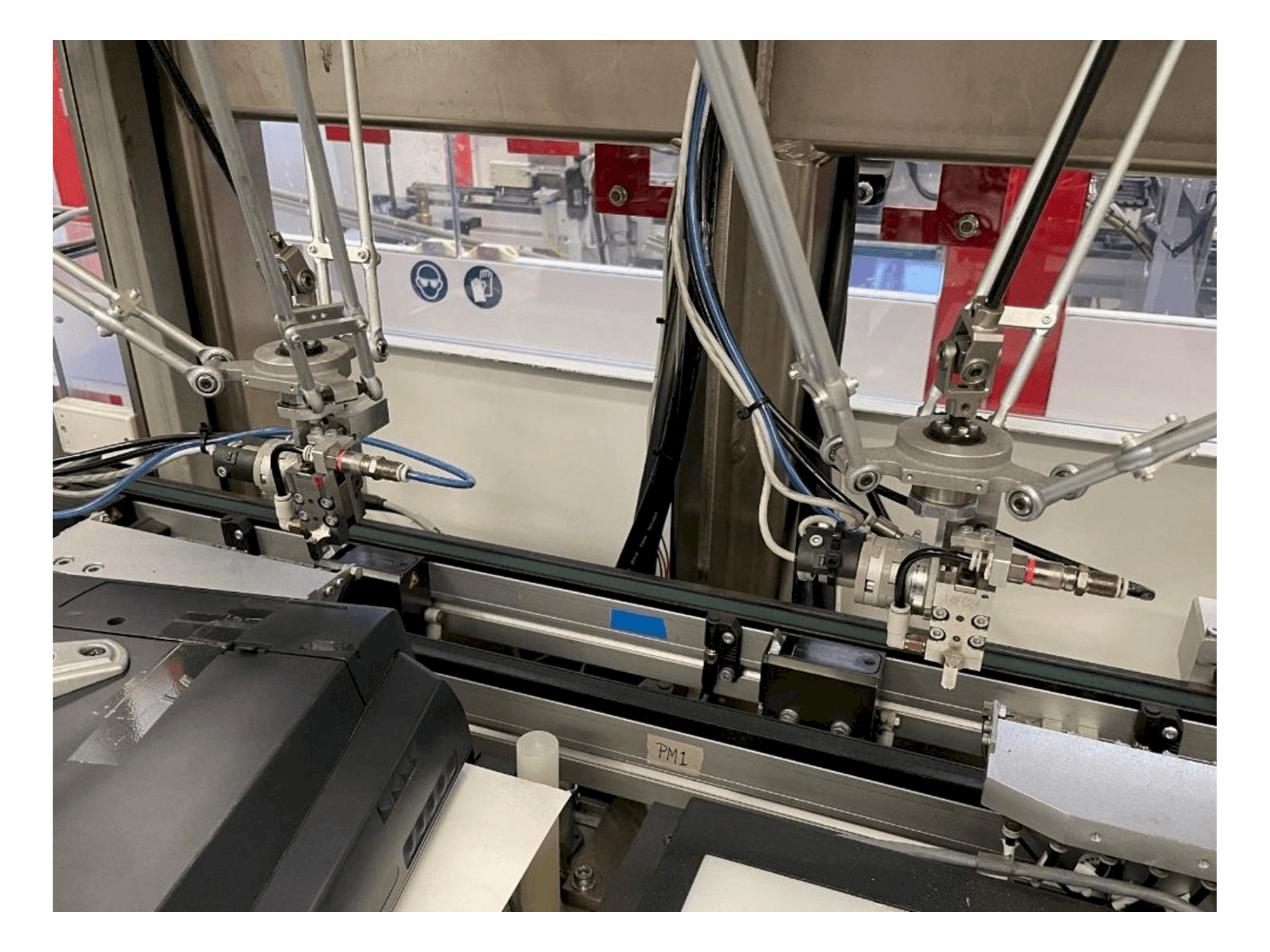

Front view of IMS Tattoo Assembly Line  machine

IMS Tattoo Assembly Line

IMS - Tattoo Assembly Line


355,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp
Show in original language

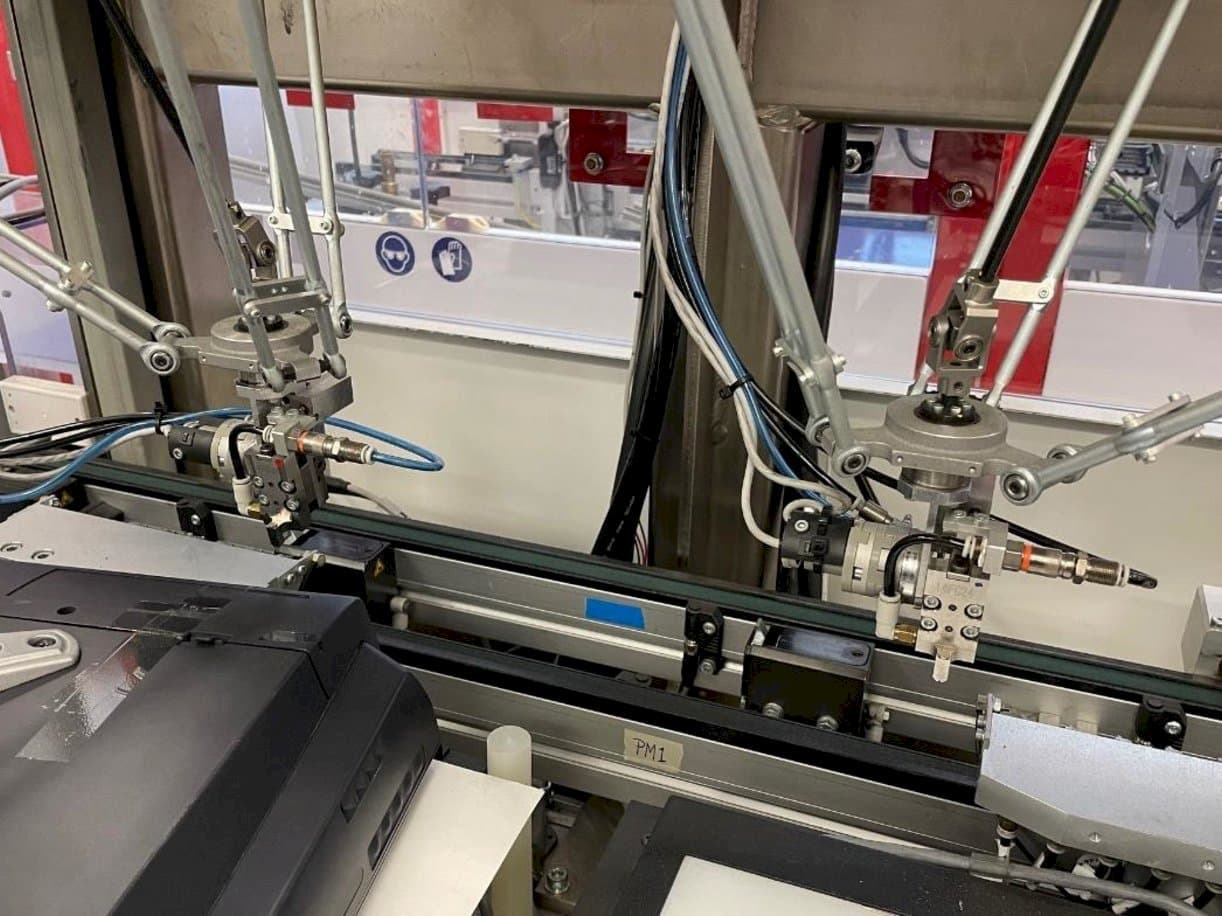

This IMS Tattoo Assembly Line was manufactured in the years 2015 in the Netherlands. It is equipped with Phase 1 and Phase 2a processing technology for the assembly of the needle in shaft together with the cap and tension spring. It operates through the full process from needle load to output. See video for more. There is also a TEAM AUTOMATION BERLIN Tattoo Needle Testing System available to extend the assembly line with an additional testing phase.


  • brand: IMS
  • year: 2015
  • MODEL: Tattoo Assembly Line
  • application type: Other
  • Location: Germany
  • machine type: Other
  • availability: Immediately
  • GINDUMAC ID: DE-OTH-IMS-2015-00001

Technical Information

General Data

  • Measurements width: 14926 mm
  • Measurements depth: 4542 mm
  • Measurements height: 2281 mm
  • Machine weight: 4500 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Assembly of needle in shaft together with the cap and tension spring (phase 1 and phase 2a)
      • - - load needle
      • - - clean needle
      • - - inspection needle
      • - - load shaft
      • - - dispense glue
      • - - output
      • - Control system: cpu-type beckhoff cx5010-0112
      • - Hmi (human machine interface): elo 1529l/e926109
    • Qualitative Machine Benefits:
      • - Ec directives for machinery safety & electromagnetic compatibility

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
