- Index G200 Lathe

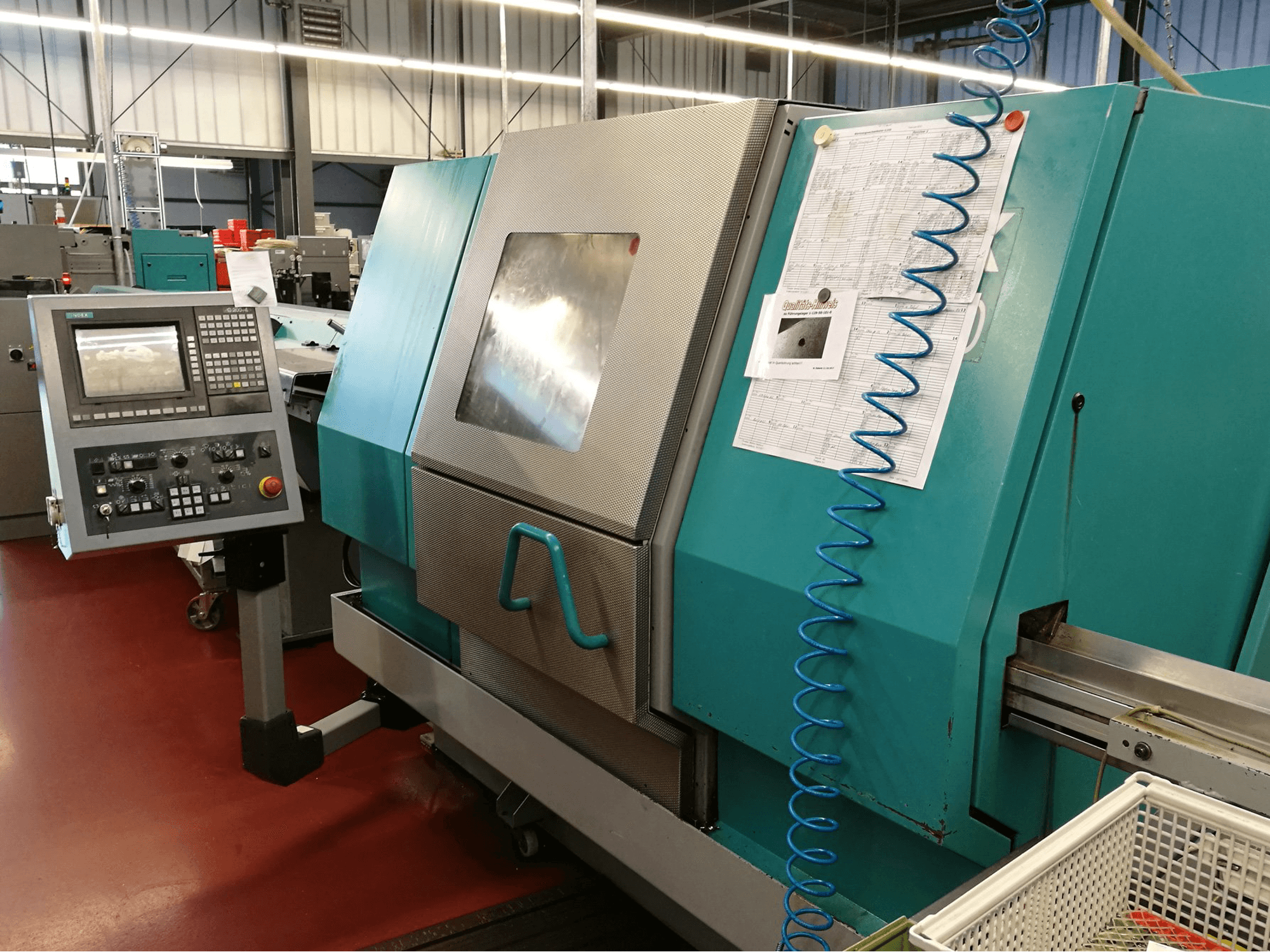

The Index G200, fabricated in the year 2000 in Germany, is a Lathe that has been operative for 49920 working hours. The Index G200 comes with a control unit by Index itself (Index C 200-4) and has the advantage of high reliable performance and a high durability. This machine comes with an Index MBL 65/3700 Bar loader.
Overview
- brand: Index
- year: 2000
- MODEL: G200
- production hours: 49920
- application type: Turning
- Location: Germany
- machine type: Lathe
- availability: Sold
- control unit brand: Index
- GINDUMAC ID: DE-TUR-IND-2000-00001
Technical Information
General Data
- Measurements width: 7000 mm
- Measurements depth: 1600 mm
- Measurements height: 1800 mm
- Machine weight: 5300 kg
Control Unit
- Brand: Index
- Model: C200-4
Main drive
- Number of spindles: 2
- Spindle speed range: 5000 1/min
- Spindle motor power: 29 kW
- Spindle bore: 65 mm
Movement
- X-AXIS Movement: 155 mm
- X-AXIS Feed Force: 5000 N
- X-AXIS Rapid traverse: 20 m/min
- Y-AXIS Movement: 60 mm
- Y-AXIS Feed Force: 10000 N
- Y-AXIS Rapid traverse: 7.5 m/min
- Z-AXIS Movement: 590 mm
- Z-AXIS Feed Force: 5000 N
- Z-AXIS Rapid traverse: 30 m/min
- B-AXIS Movement: 360° MM
Turret
- Number of turrets: 2
- Number of tool slots: 14
- Rotating tools: Yes
- Tool taper: VDI 25
Media
- Main electronic connection: 400 V / 50 Hz / 3P
- Power consumption: 40 kVA
- Air pressure: 6 bar
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - Bar loader
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
