➤ Used Index G400 - 2001 - Lathe For sale | gindumac.com

Show in original language

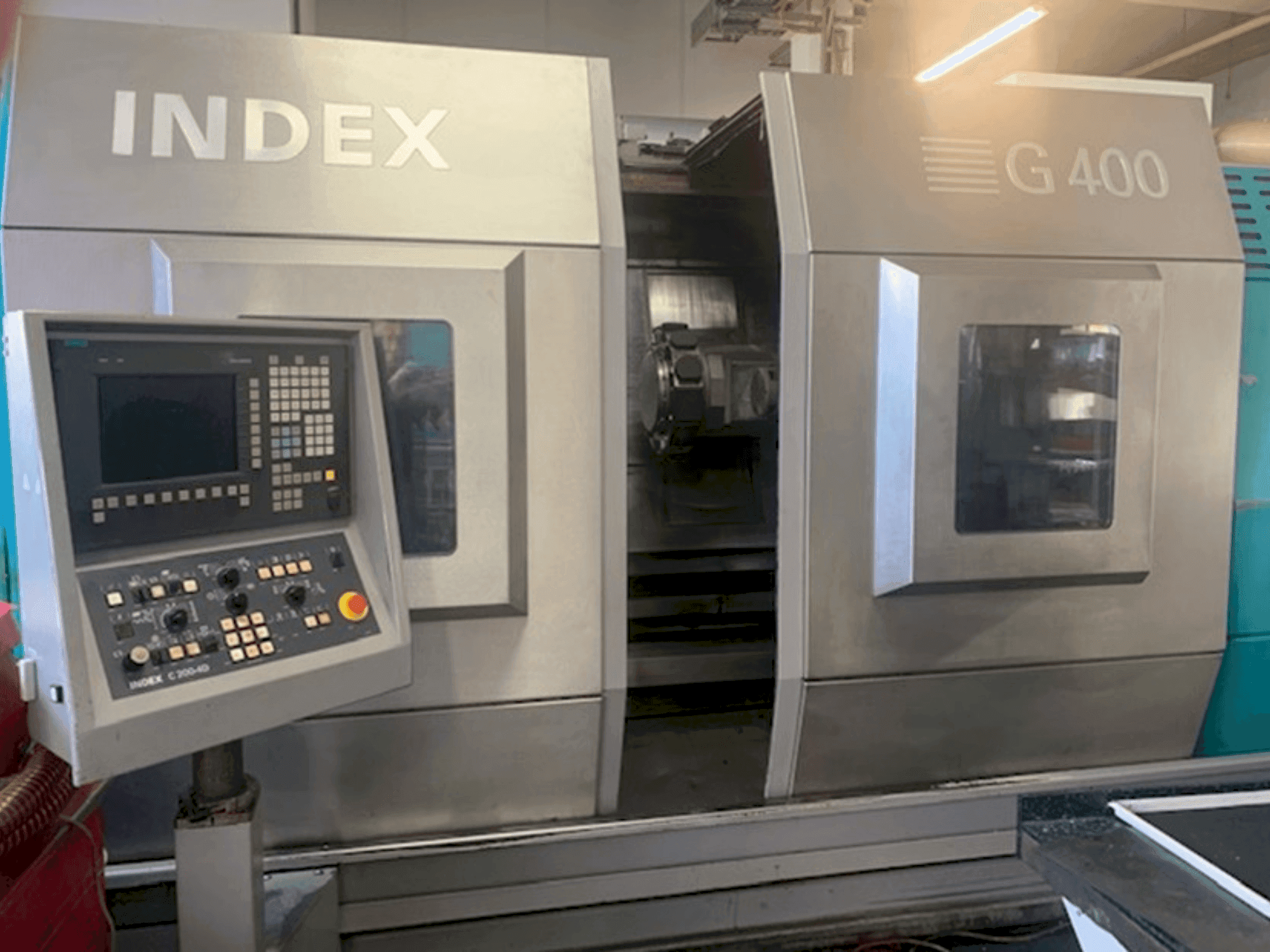

This 4-axis Index G400 lathe was manufactured in 2001. It features a main spindle with a diameter of 102 mm and a gearbox with multiple speed settings, achieving up to 2500 rpm at i=1 and 1000 rpm at i=3. The machine includes a Röhm Duro-NC 400/3 chuck and a turret with 12 positions, plus a disc magazine holding 32 positions. Ideal for high-precision tasks, the Index G400 machine we have for sale. Contact us for further details regarding this lathe.

Overview

brand: Index
year: 2001
MODEL: G400
application type: Turning
Location: Germany
machine type: Multi-Spindle Turning Machine

Technical Information - Index G400

Dimensions

Machine Weight: 21000 kg

Movement

Number of Axes: 4
X-axis Travel: 630 mm
Y-axis Travel: 220 mm

Technical Specification

Spindle Power: 47 kW
Spindle Speed: 2500 RPM

Additional Information

Additional equipment

Chuck: Röhm Duro-NC 400/3
Turret: 12 positions
Satellite milling spindle HSK 63A with IKZ
Gearbox ratios: Main spindle i=1, i=3; Milling spindle i=4

Machine Benefits

Qualitative Machine Benefits

Advanced machining capabilities with multiple gear ratios

Technical Machine Benefits

Max. Bar diameter: 102 mm
Spindle speed range: 2500 rpm (i=1), 1000 rpm (i=3)
Spindle speed (milling spindle): 6000 rpm
High torque on the main spindle (1350/1950 nm)
Robust clamping force (10900 kn)
High flexibility with satellite milling spindle and turret
The spindle running time is approx. 14700 hours

Extra Information

Machine still under power // Peripheral attachments include the suction unit and an oil separator installed in the coolant system. Seller sells some accessories together with the machine (pictures attached).

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
