- INGERSOLL IG1300 PENTA (2017) Erosion machine

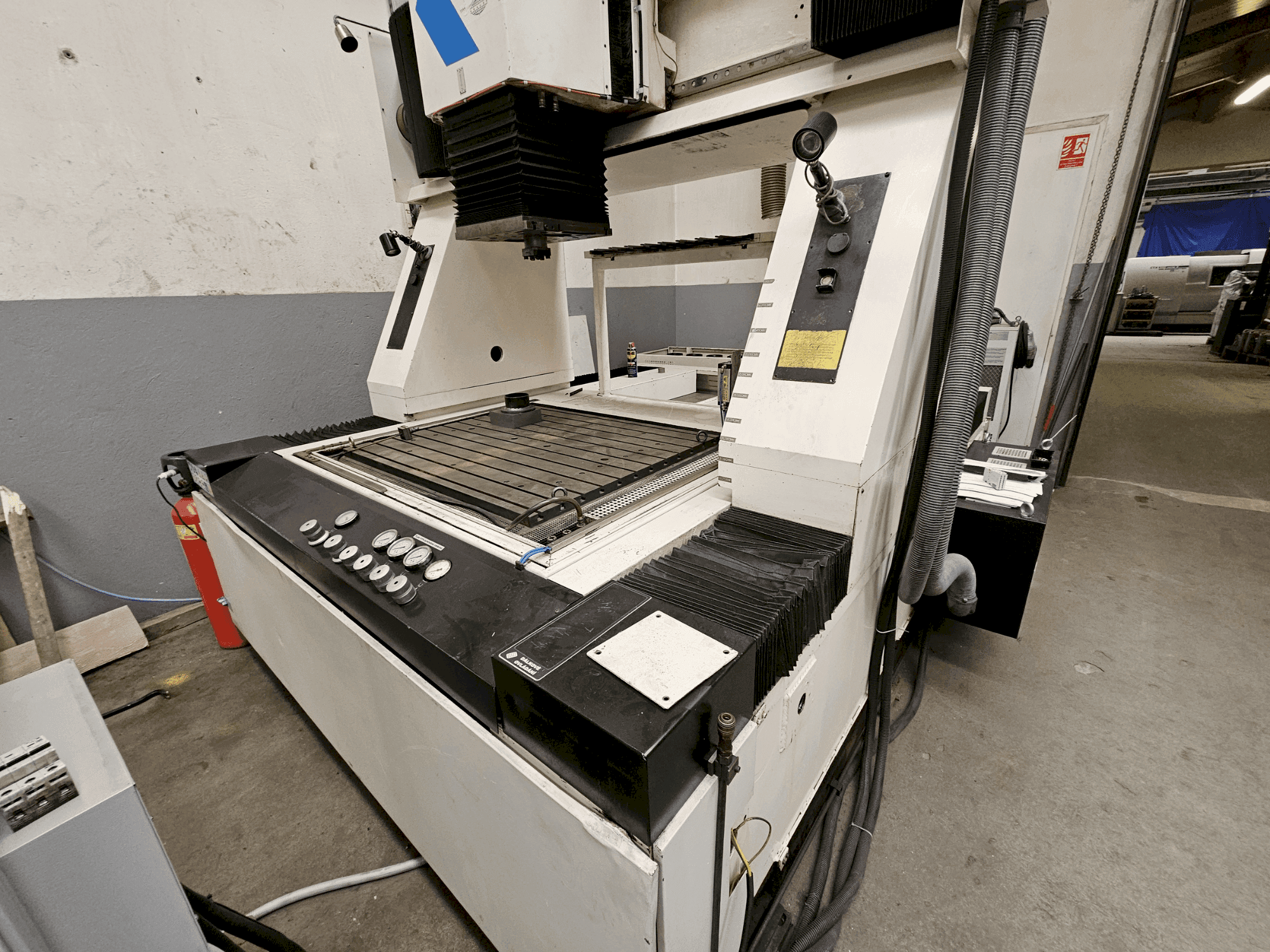

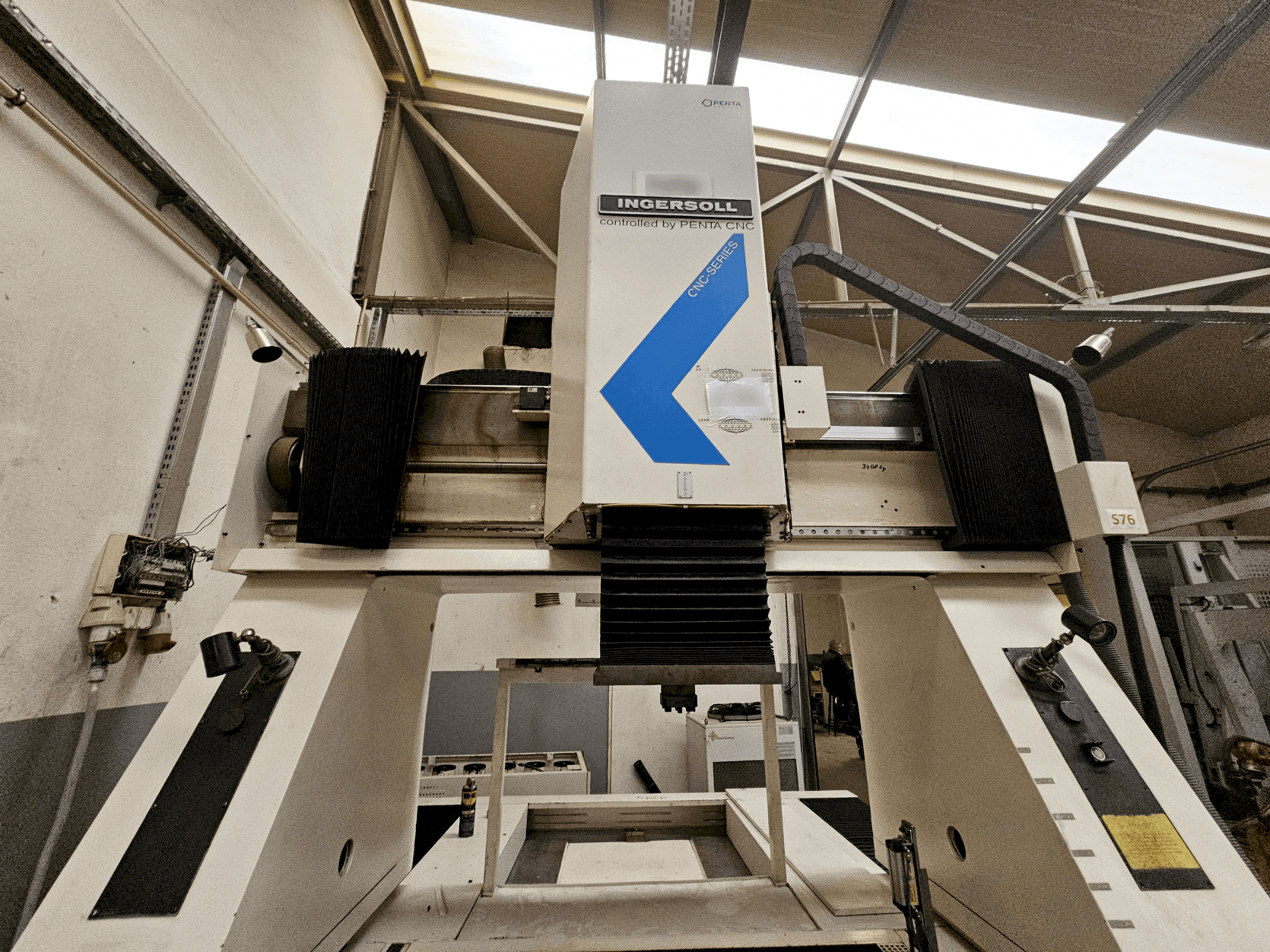

This INGERSOLL IG1300 PENTA (2017) Erosion machine was refurbished by PENTA in 2017. Operated by a BECKHOFF PENTA CNC Control it has 4-axes (X = 900mm / Y = 690 mm / Z = 550 mm / C = 360 degress). With table dimensions of 1150 x 950 mm it can operate with a table load of max. 4000 kg. It is still under power, in very good condition and can be inspected at any time.
Overview
- brand: INGERSOLL
- year: 2017
- MODEL: IG1300 PENTA
- application type: EDM
- Location: Poland
- machine type: Erosion Machine
- availability: Immediately
- control unit brand: BECKHOFF
Technical Information - INGERSOLL IG1300 PENTA
General Data
- Measurements width: 3030 mm
- Measurements depth: 4900 mm
- Measurements height: 3400 mm
Control Unit
- Brand: BECKHOFF
- Model: PENTA CNC
Main drive
- Number of axis: 4
Movement
- X-AXIS Movement: 900 mm
- Y-AXIS Movement: 690 mm (to tool changer 1240 mm)
- Z-AXIS Movement: 550 mm
Table
- Outer length: 1150 mm
- Outer width: 950 mm
- Number of tslots: 12 x 12 H8
- Dielectic level: 1700 l
- Table load: 4000 kg
Additional Equipment
- - Dielectric tank capacity: 1700 l
- - 3R tool system
Additional Information
- Technical Machine Benefits:
- - Z axis: 550 mm
- - C axis: 360 degrees
- - Generator power: 120a (penta)
- Qualitative Machine Benefits:
- - Rebuilt by penta in 2017 and serviced on an ongoing basis
- - Full documentation available. Ready for tests.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
