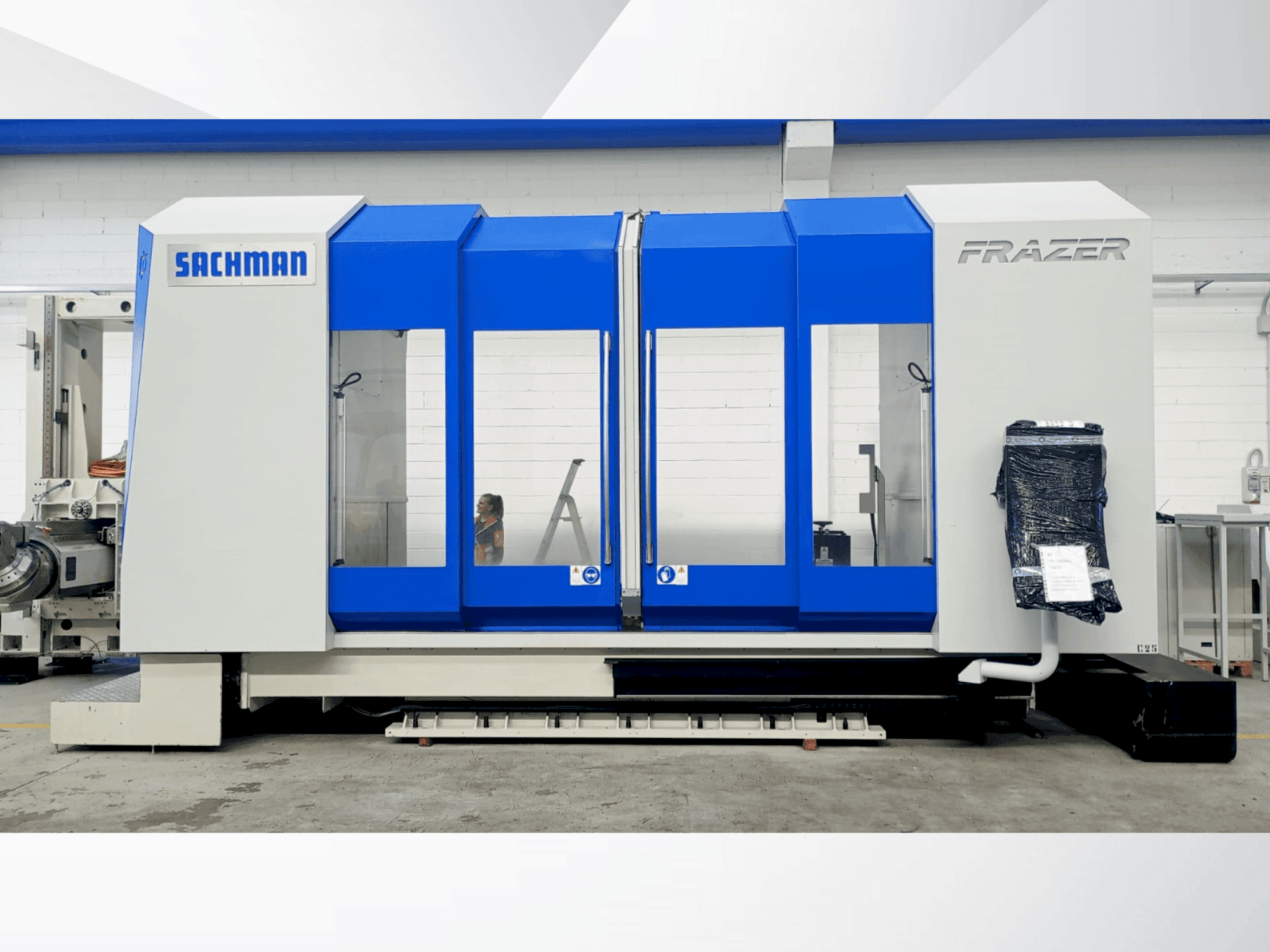

This 4-axis JOBS FRAZER cnc milling machine was manufactured in 2017. It features a large fixed table of 3100x1000 mm and high-speed axes capable of up to 35 m/min, ensuring efficient machining. The machine includes a Heidenhain iTNC 530 HSCI CNC for precise control and a 24-position disc tool magazine. If you are looking to get high-quality milling capabilities, consider the JOBS FRAZER machine we have for sale. Contact us for more information.
Overview
- brand: JOBS
- year: 2017
- MODEL: FRAZER
- application type: Milling
- Location: Italy
- machine type: Bed Type Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - JOBS FRAZER
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: ITNC 530
Movement
- Number of Axes: 4
- X-axis Travel: 3000 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 1100 mm
Additional Information
Additional equipment
- Direct hydraulic balancing system (double cylinder)
- Workpiece : Fixed table: 3100x1000 mm
- Table : External low-pressure spindle cooling system
- Disc tool magazine with 24 ISO50 positions, with tool exchanger arm, complete with support and management software located at the end of X-axis travel
- Hydraulic system, power supply, and wiring / 6000 W cooling unit / Hydraulic and electric cabinets (Rittal) on the ground
- Work area lighting; Machine and spindle hour counters / External operator station on the ground – mobile operator panel / C-axis with torque motor
- 2 longitudinal screw chip conveyors + 1 transversal belt conveyor / Safety fences including panels and sliding steel door with Lexan window, compliant with CE safety standards. Upper cover included.
- Dividing wall and software setup for pendulum machining / Renishaw RMP60 digital probe
- BLUM fixed laser presetter station, including Blum measurement cycles + zeroing sphere
- Voltage: 400 Vac / Frequency: 50 Hz
Machine Benefits
Technical Machine Benefits
- Heidenhain itnc 530 hsci cnc, complete with operator panel and 15" screen located on the front side of the machine
- Electrospindle: 33(25) kw - 640(480) nm - 8000 rpm - iso 50
- X-axis transmission with rack and pinion (dual drive), y, z ball screws
- Pressurized optical scales
- X, y, z axis speed up to 35 m/min / x-axis covers with non-walkable telescopic shields
- Maximum thrust x, y, z axis: 10,000 n
- Universal head c with continuous positioning with torque motors / medium-pressure (15 bar) internal spindle coolant with bag filter / air blow-off through external nozzle on the spindle / spray mist tool cooling system external to the spindle
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
