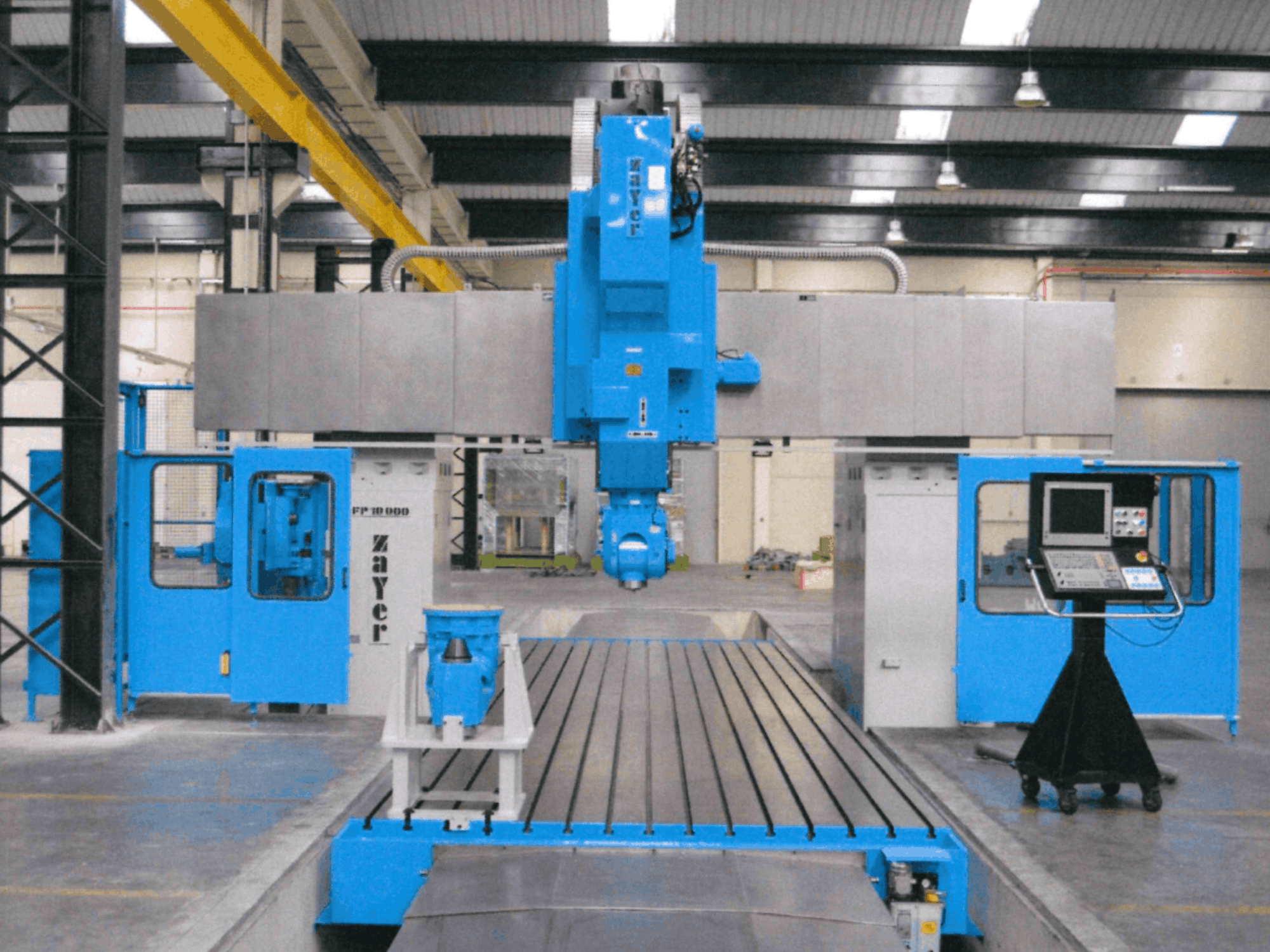

Zayer - FP-10000 ES-MIL-ZAY-2006-00001

• Table size: 10,000 × 3,000 mm

• Distance between columns: 3,500 mm

• Table-to-direct-output-head nose distance: 2,000 mm

• Table-to-45° head nose distance: 1,298 mm

• Rapid traverse X/Y/Z: 10,000 mm/min

• Working feed X/Y/Z: 6,000 mm/min

• Universal 45° head speed: 3,000 rpm

• Direct-output head speed: 3,000 rpm

• Automatic TWIST head speed: 3,000 rpm

• Speed ranges: 2

• Number of heads: 3

• Hydraulic tool clamping: Included

• Manual head change: Included

• Portable handwheel: HR-410

• Motors: Siemens

• Machine condition: Excellent

Additional equipment

• Universal 45° head, 3,000 rpm

• Automatic spherical head

• Continuous rotation in both bodies

• Manual retractable support on the right side
