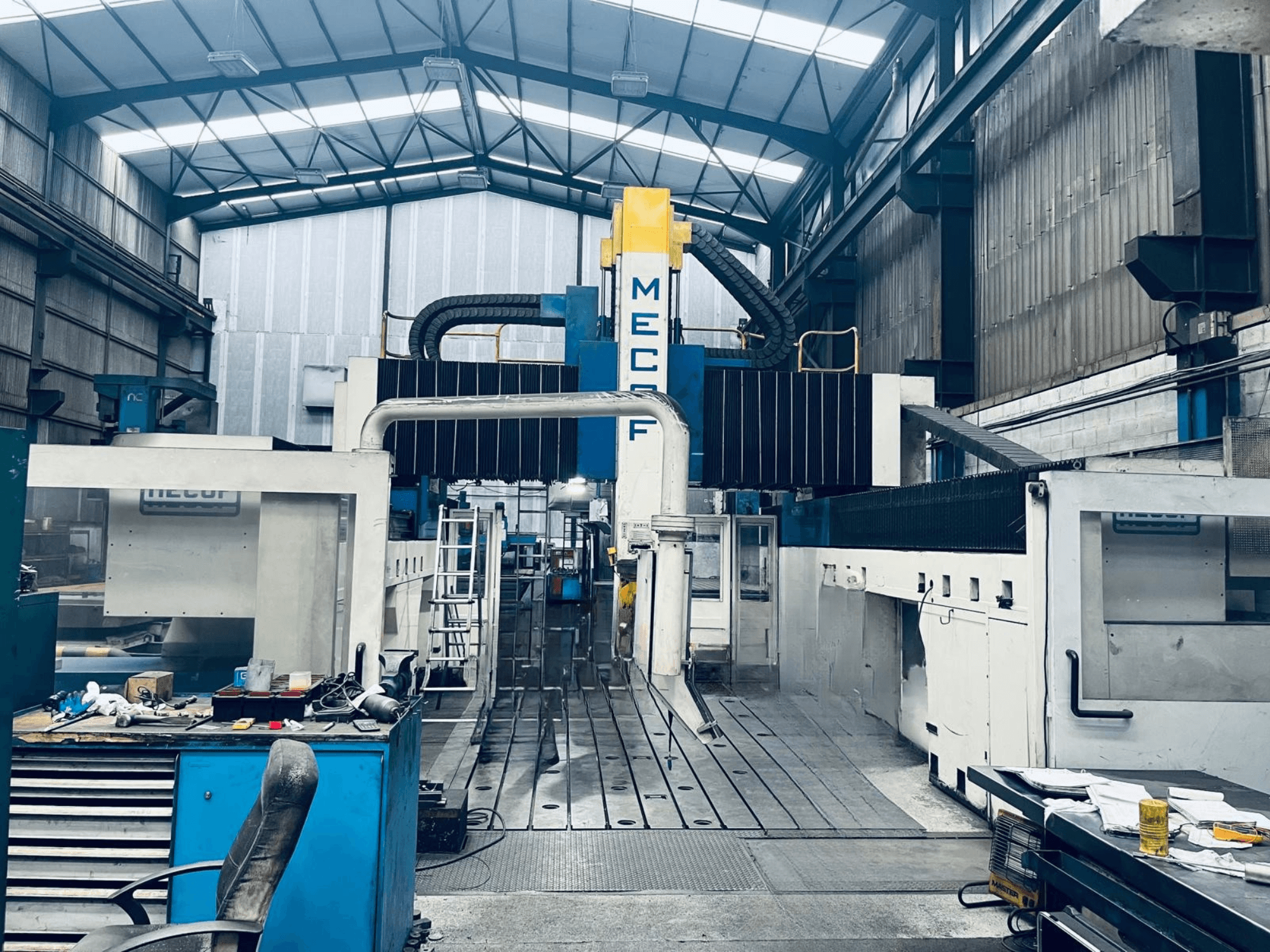

This 5-axis MECOF DYNAMILL 3000L was manufactured in 1999. It features an impressive X-axis travel of 5,500 mm, Y-axis travel of 3,000 mm, and Z-axis travel of 1,500 mm. The machine is equipped with a powerful spindle taper of ISO 50 and a tool magazine capacity of 24 tools. If you are looking to get high-quality milling capabilities, consider the MECOF DYNAMILL 3000L gantry milling machine we have for sale. Contact us for further details.
Overview
- brand: MECOF
- year: 1999
- MODEL: DYNAMILL 3000L
- application type: Milling
- Location: Spain
- machine type: Gantry Milling Machine
Technical Information - MECOF DYNAMILL 3000L
Movement
- Number of Axes: 5
- X-axis Travel: 5500 mm
- Y-axis Travel: 3000 mm
- Z-axis Travel: 1500 mm
Technical Specification
- Spindle Power: 22 kW
- Spindle Speed: 3000 RPM
- Taper Size: ISO 50
- Tool Stations: 24
Additional Information
Orthogonal head: 10–3,000 rpm speed range; 22 kW power; automatic tool clamping (20,000 N clamping force)
PDFTwin 15 head (GAMFIOR electrospindle): 600–24,000 rpm speed range; 17.5 kW motor power; E18 electrospindle
Indexed positioning platform: 360 positions; ±180° rotation range; ±0.02/300 mm positioning accuracy; 45,000 Nm axial clamping force
PDFContinuous positioning platform: 360,000 positions; ±185° C-axis rotation range; 0–2,400°/min C-axis rotation speed; 2,000 Nm clamping torque
Additional equipment
Tool profile measurement device
Cart-type head magazine
BLUM radio-transmitted laser probe
Air/oil tool cooling system
MECOF High-Speed Milling system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
