- JOHN FORD DMC 1600 Vertical Machining center
Show in original language

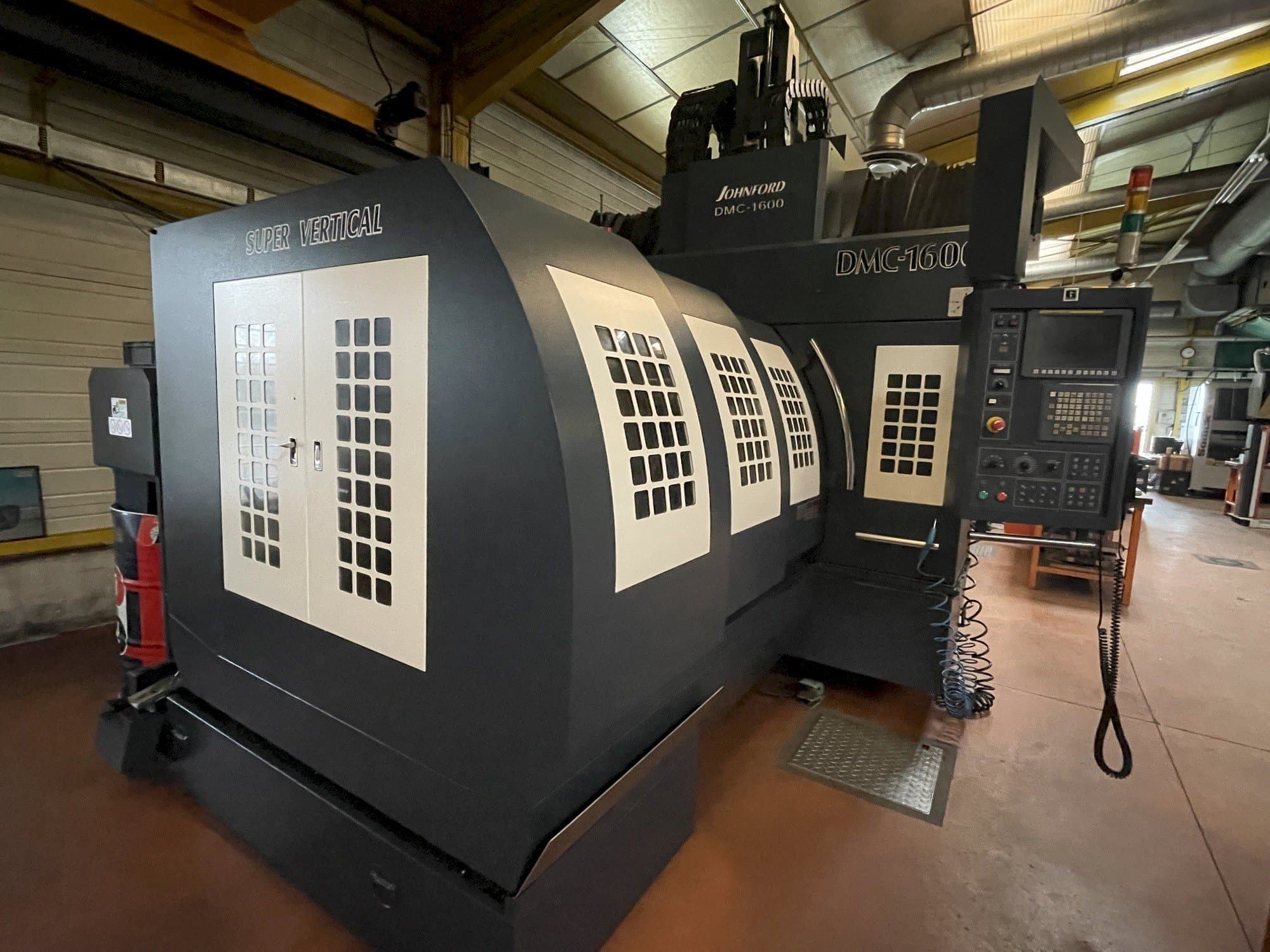

This JOHN FORD DMC 1600 Vertical Machining center was manufactured in the year 2007 in Taiwan. It is equipped with a Fanuc Series Oi-MC control unit. The machine has a spindle speed of 8000 rpm.
Overview
- brand: Johnford
- year: 2007
- MODEL: DMC 1600
- application type: Milling
- Location: France
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: Fanuc
- GINDUMAC ID: FR-MIL-JOH-2007-00001
Technical Information
General Data
- Measurements width: 5500 mm
- Measurements depth: 3300 mm
- Measurements height: 3800 mm
- Machine weight: 20400 kg
Control Unit
- Brand: Fanuc
- Model: Series Oi- MC
Main drive
- Spindle speed range: 8000 1/MIN
- Spindle motor power: 11kW
- Tool taper: ISO 40
Movement
- X-AXIS Movement: 1600 mm
- Y-AXIS Movement: 1300 mm
- Z-AXIS Movement: 800 mm
Table
- Outer length: 1700 mm
- Outer width: 1100 mm
- Table load: 6000 kg
Additional Information
- Technical Machine Benefits:
- - Passage from spindle nose to table: 150/950 mm
- - Work advance: 8000mm/min
- - Fast forwards:. 24/24/12 m/min
- - Tool changer:. 40 slots
- - Electronic handwheel
- - Chip conveyor 2+1
- - Spindle cooler
- - 2-range gearbox
- - Part probe
- - Tool feeler, tools, tool center coolant
Machine Benefits
