Johnford SL-40

Photo Gallery

Johnford - SL-40IL-TUR-JOH-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Johnford SL-40 - 2017 - Lathe For Sale

Show in original language

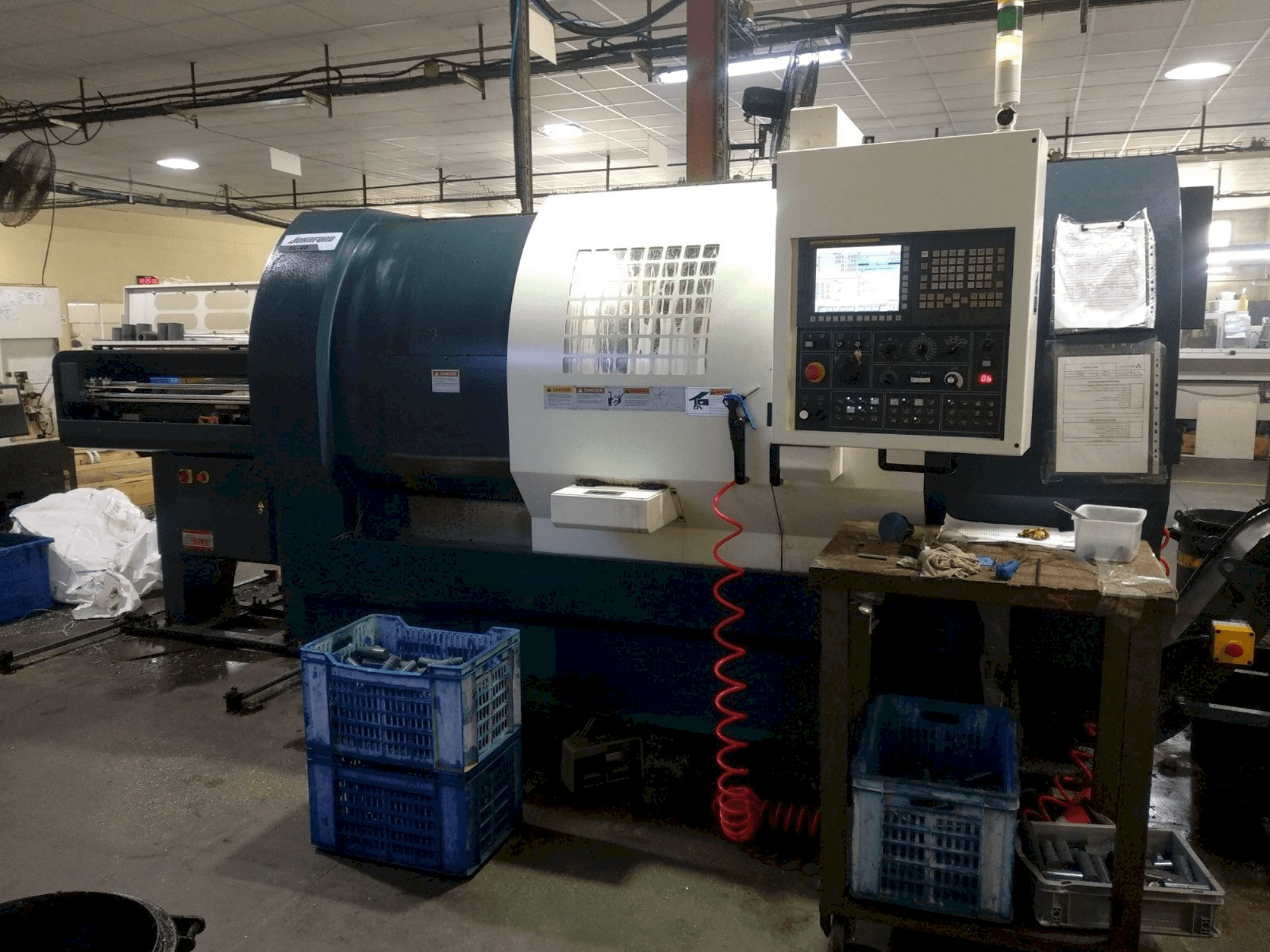

This Johnford SL-40 Lathe was manufactured in Taiwan in the year 2017. It has been operative for 30296 hours, of which 12401 are cutting hours. This machine works through a FANUC Series control unit. It can work with a spindle speed up to 4000 rpm. CE conformity.

Overview

brand: Johnford
year: 2017
MODEL: SL-40
production hours: 30296
application type: Turning
Location: Israel
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Johnford SL-40

Control Unit

Control Brand: FANUC
Control Model: 0iTD

Dimensions

Machine Depth: 3525 mm
Machine Height: 1862 mm
Machine Weight: 4500 kg

Movement

Y-axis Travel: 40 mm

Technical Specification

Spindle Power: 11 kW
Spindle Speed: 4000 RPM

Additional Information

Additional equipment

C+Y-a axis
Contact tool setting system
Parts catcher
Tool holders (VDI type) - Tool holders - 5 horizontal / 5 vertical made by WTO from Germany
Programmable hydraulic tailstock
Bar feeder interface
Rotary tailstock
CE conformity

Machine Benefits

Qualitative Machine Benefits

Coolant system; splash guard
Programmable hydwaulic tailstock
Through hole 3-jaw chuck
Hydraulic tailstock quill
Chain type chip conveyor
Tool box and various manuals
Tool holders (direct mounting type)
Auto lubrication with alarm
Led working lamp
Type of guide ways: box ways

Technical Machine Benefits

Swing over bed Ø 580 (Ø 22. 8") mm
Swing over cross slide Ø 450 (Ø 17. 7") mm
Chuck size 254 mm
Spindle nose a2-8
Bar capacity Ø 76. 5 (Ø 3") mm
Spindle bearing diameter Ø 120 (Ø 4. 7") mm
Spindle transmission: one step
Cross travel (x-axis): 240 (9. 4") mm
Tailstock travel (for y-axis): 500(400) < 19. 7 "(15. 7")> mm
Longitudinal travel (z-axis)(for y-axis): 600 (500) < 23. 6 "(19. 7")> mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
