- Johnford ST-130 B+CF Lathe

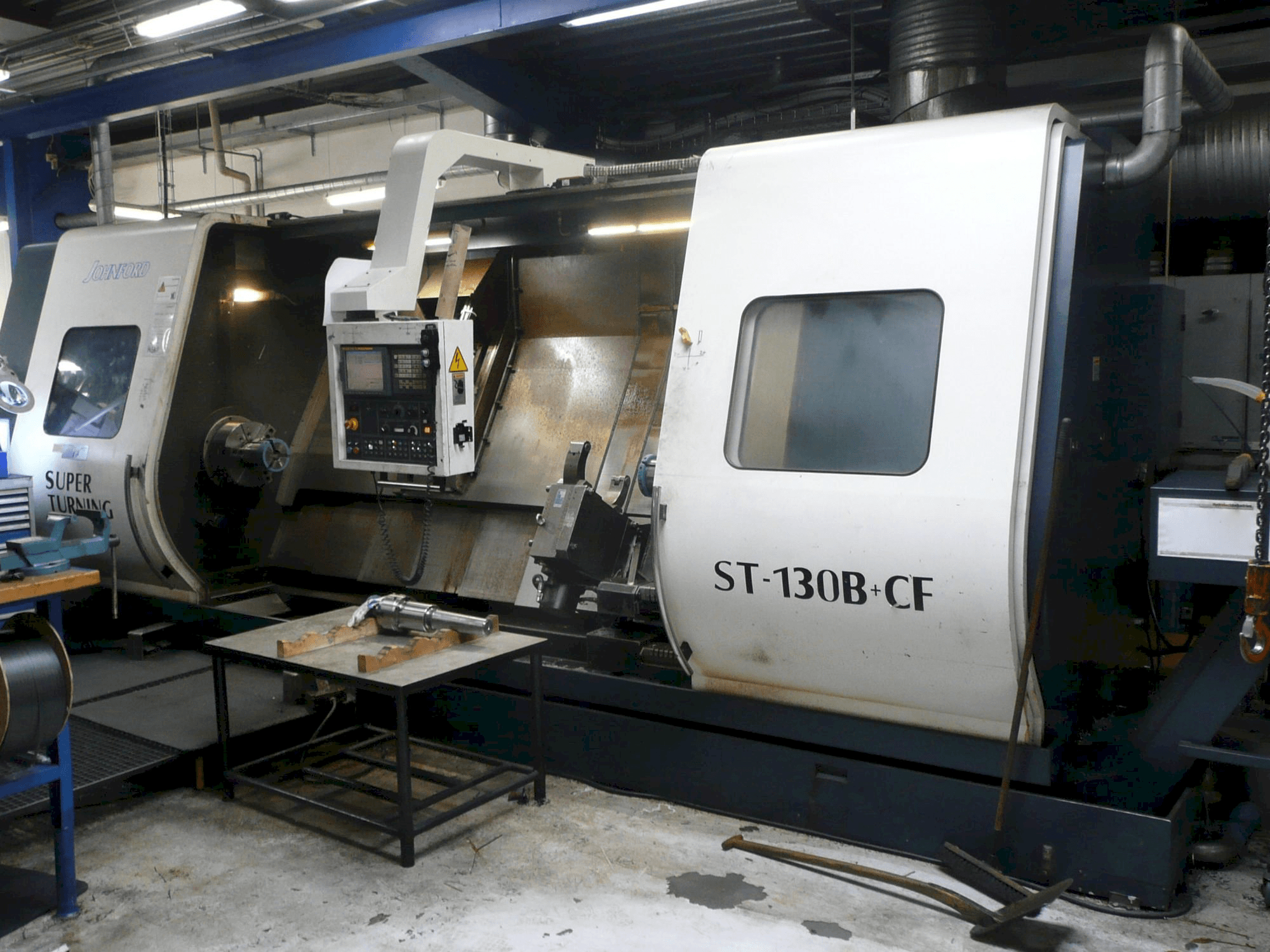

This Johnford ST-130 B+CF Lathe was manufactured in Taiwan in 2007. It has been power on for 54093 hours, of which 9756 are cutting hours. This 3 axis machine is equipped with a Fanuc Series 18i-TB control unit. It can work with a spindle speed up to 2000 rpm. The machine is in good conditions.
Overview
- brand: Johnford
- year: 2007
- MODEL: ST-130 B+CF
- production hours: 9756
- application type: Turning
- Location: Denmark
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Johnford ST-130 B+CF
Control Unit
- Control Brand: FANUC
- Control Model: Series 18i-TB
Dimensions
- Machine Depth: 8200 mm
- Machine Weight: 21000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 370 mm
- Z-axis Travel: 3050 mm
Technical Specification
- Number of Tools: 12
- Spindle Power: 22 kW
- Spindle Speed: 2000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Includes machine manual
- Good condition
Technical Machine Benefits
- Swing over bed: 920 mm
- Swing over cross slide: 700 mm
- Working length: 3000 mm
- Rapid movement: x-axis 10 m/min
- Rapid movement: z-axis 12 m/min
- Full c axis, no. Of rotating stations 6 pcs
- Interface rs-232 c
- Hydraulic rest dia. : 45 - 310 mm, tailstock
- 3-jaw chuck dia. : 400 mm, set of tool holders
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
