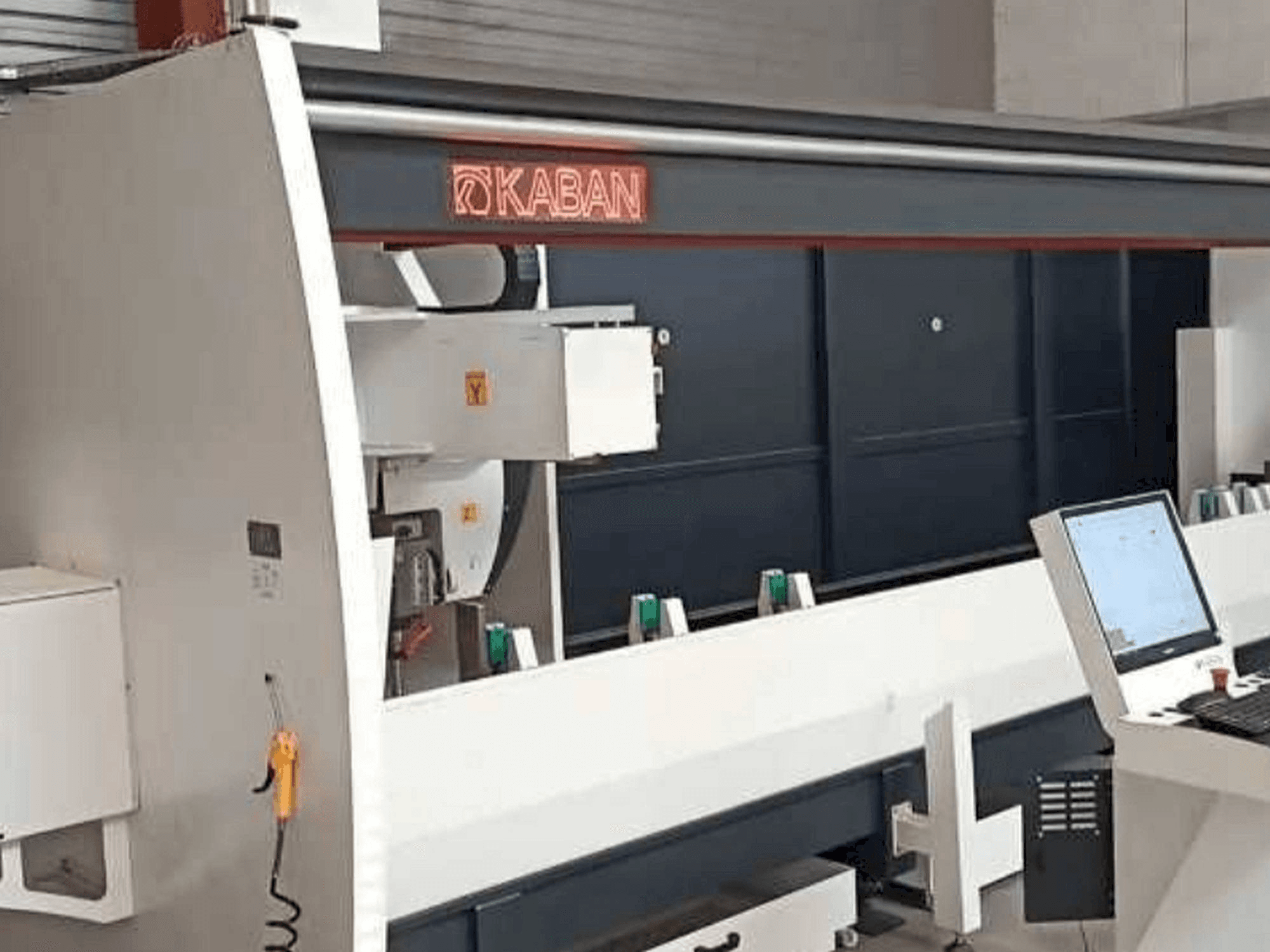

Front view of KABAN ZC4035  machine


KABAN - ZC4035


55,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp
Show in original language

This KABAN ZC4035 Aluminium Machining Center was manufactured in the year 2021 in Turkey. It is equipped with a Mitsubishi FX-5 control unit and has 3.5 axis. The machine has a spindle speed of 24000 rpm.


  • brand: KABAN
  • year: 2021
  • MODEL: ZC4035
  • application type: Other
  • Location: Poland
  • machine type: Other
  • availability: Immediately
  • control unit brand: Mitsubishi
  • GINDUMAC ID: PL-OTH-KAB-2021-00001

Technical Information

General Data

  • Measurements width: 7896 mm
  • Measurements depth: 3574 mm
  • Measurements height: 2642 mm
  • Machine weight: 6700 kg

Control Unit

  • Brand: Mitsubishi
  • Model: FX-5

Main drive

  • Spindle speed range: 24000 1/MIN
  • Spindle motor power: 8.5 kW
  • Tool taper: HSK 63F
  • Number of axis: 3.5


  • Main electronic connection: 400V / 50-60 Hz
  • Power consumption: 19 kW

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum machining length: 4175 mm
      • - Max machining width: 300 mm
      • - Max machining height: 300 mm
      • - A-axis angle: 180 deg
      • - Max profile length: 4175 mm
      • - Max profile dimension: 300 x 300 mm
      • - 6 clamps, 8 tool holding capacity
    • Qualitative Machine Benefits:
      • - Tool cooling system with oil-air mixture spraying

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
