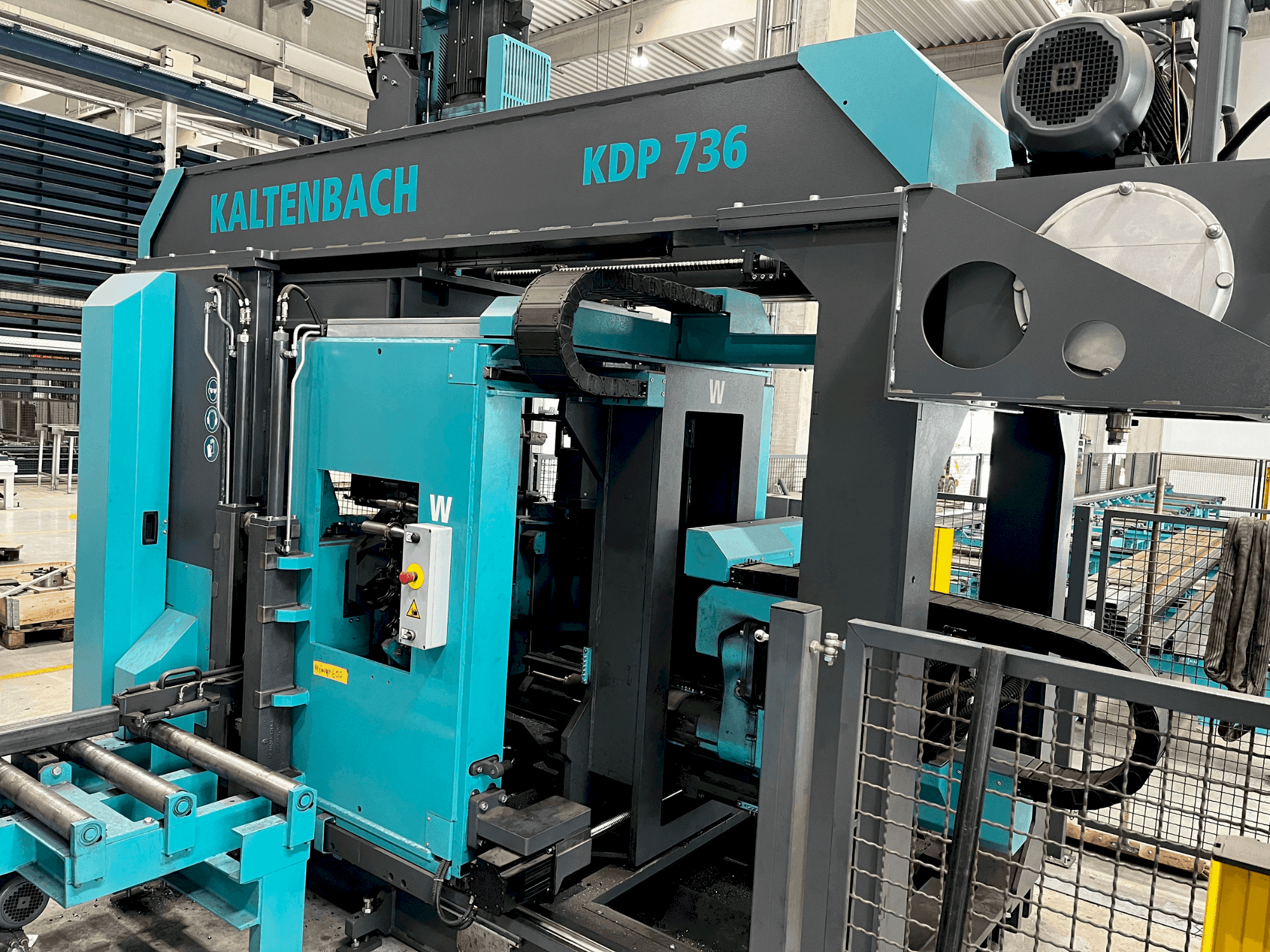

KALTENBACH - KBS 761/ KDP 736DE-SAW-KAL-2019-00001

Machine Benefits

Qualitative Machine Benefits

• Kbs 761: precise control with adjustable feed speeds and rapid traverse.
• Kdp 736: stable and precise machining with strong clamping force and frequency-controlled spindle speeds.
• Operating hours main switch on: 10060, operating hours manual mode 4329, operating hours in automatic mode 2374
• Special equipment optional for sale : 3 engraving tools, 8 saw bands, 1 special gripper for small profiles as an accessory for length stop, 1 camera system with one screen and 4 cameras.
• 1 camera system with one screen and 4 cameras.

Technical Machine Benefits

• Kdp 736: 6260 x 2100 x 3900 mm // kdp 736: approx. 12,400 kg
• Saw blade dimensions: 8320 x 54 x 1. 6 mm
• Cutting speed: 15-180 m/min // feed speed: 0-600 mm/min (infinitely adjustable) // rapid feed and return speed: 6000 mm/min
• Working height above floor: 640 mm
• Drilling unit (kdp 736): working area minimum dimensions (w x h): 50 x 5 mm/ working area maximum dimensions (w x h): 750 x 600 mm/ drilling diameter: 6. 8-50 mm
• Spindle speeds: max. 3500 rpm (frequency-controlled) / torque: max. 544 nm / drilling feed speed: max. 2,000 mm/min/ rapid feed and return speed: max. 22,000 mm/min
• Positioning speed of the machining axes: max. 22,000 mm/min / number of magazine positions: 36/ horizontal clamping force: max. 30,000 n / vertical clamping force: max. 4 x 10,000 n / working height above floor: 640 mm
• Kbs 761: versatile cutting speed and adjustable feed for precision.
• Kdp 736: high spindle speed, torque, and wide working area for versatility and efficiency.

Extra Information

Operational Control: Infinitely adjustable feed on the control panel.
