➤ Used Kawasaki PST150-L2 - Robot For Sale | gindumac.com

Show in original language

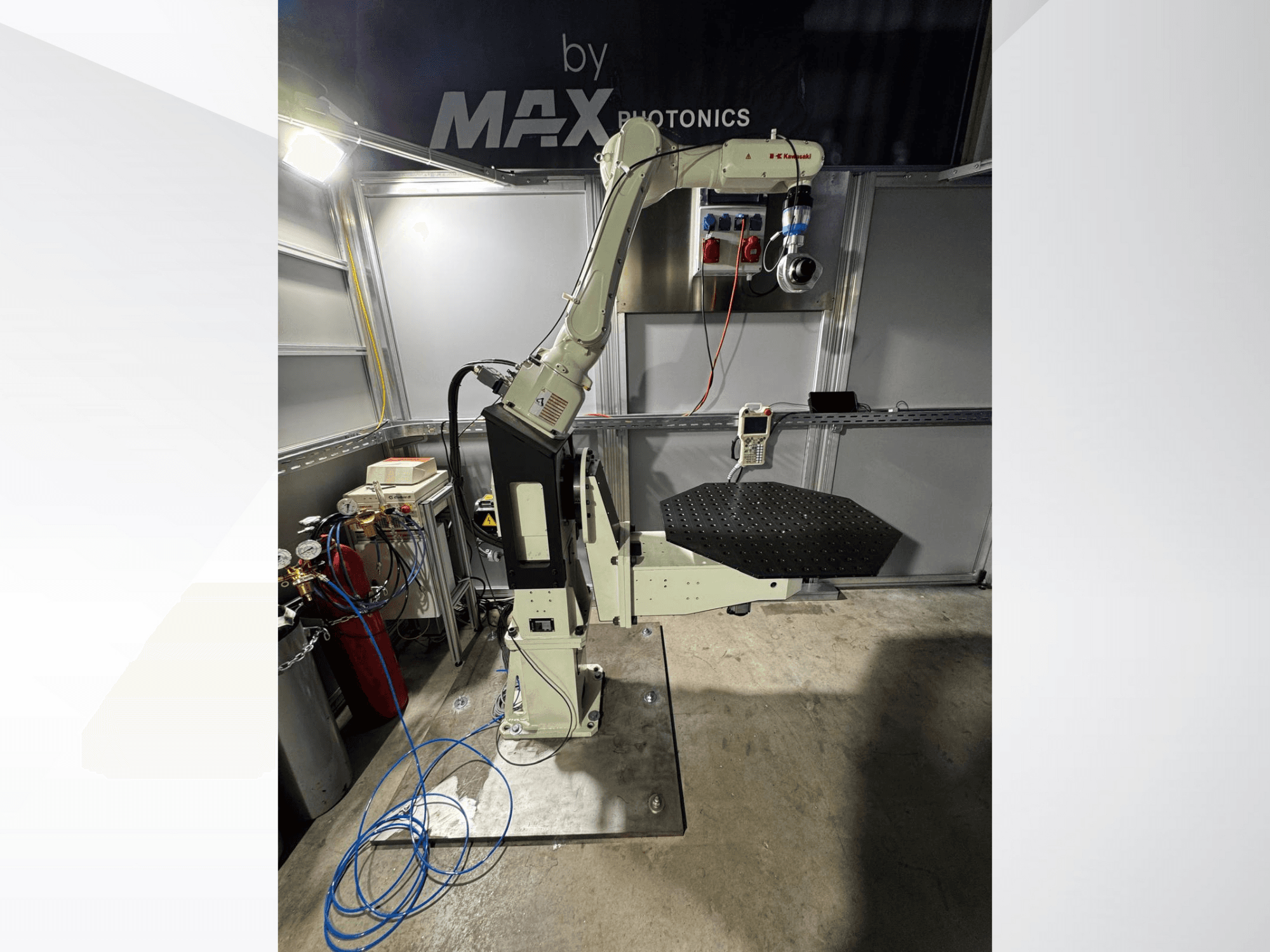

This Kawasaki PST150-L2 robot arm was manufactured in 2017. It features a two-axis positioner with horizontal and vertical rotary axes, supporting a payload up to 125 kg. The rotational range is ±180° for JT1 and ±360° for JT2, with maximum speeds of 150°/s and 180°/s respectively. Ideal for tasks requiring precise positioning and handling. Contact us for more information about this machine.

Overview

brand: Kawasaki
year: 2017
MODEL: PST150-L2
application type: Robotics
Location: Germany
machine type: Robot Arm

Additional Information

Payload: 125 kg
Degrees of Freedom: 2 Axes
Mass: 330 kg
General Two-Axis Positioner
Horizontal Rotary Axis + Vertical Rotary Axis
Nominal Torque JT1: 490 Nm
Max. Torque JT1: 1200 Nm
Nominal Torque JT2: 265 Nm
Max. Torque JT2: 660 Nm
Rotational Range JT1: ±180°
Rotational Range JT2: ±360°
Max. Rotational Speed JT1: 150°/s
Max. Rotational Speed JT2: 180°/s
Repeatability: ±0.05 mm
Max. moment of inertia JT1: 182 kgm²
Max. moment of inertia JT2: 80 kgm²
Mounting location: Floor
Integrated connections: Welder earth transfer system
Rated welding current (100% duty cycle): 500 A
Base Unit – Extended Workpiece Area
Kawasaki External Axis (E0x Controller)
Standard height of the pivot axis JT1: 990 mm
Center of Gravity Offset from Rotary Axis JT2: 140° mm
Max. center of gravity offset from the flange surface: 370 mm
Ambient conditions: 0–40 °C (Humidity): 35–85%, no dew
Color: NCS S 0510-G50Y & RAL 9011

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
